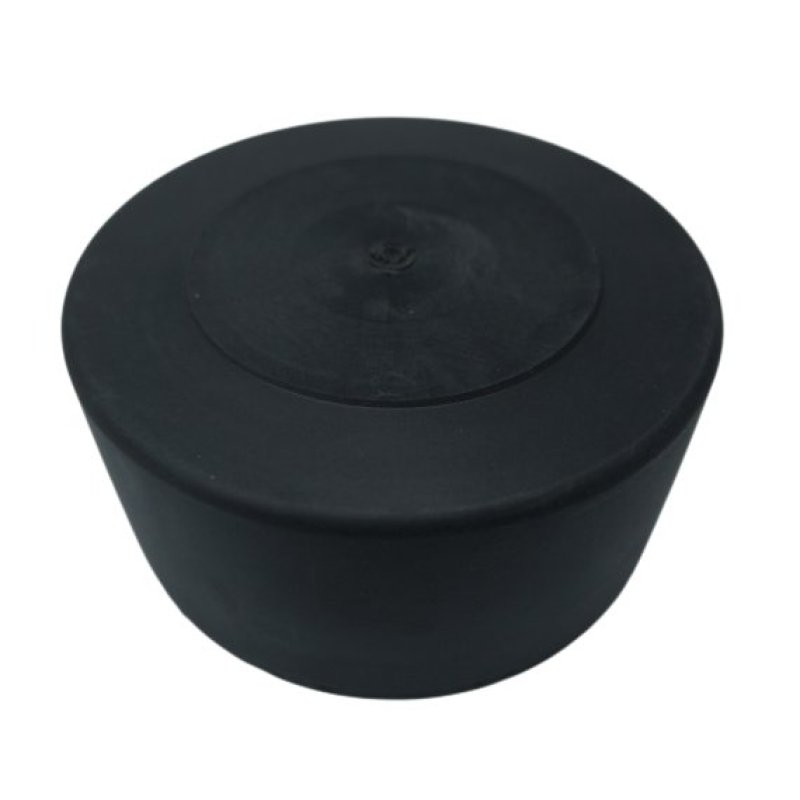

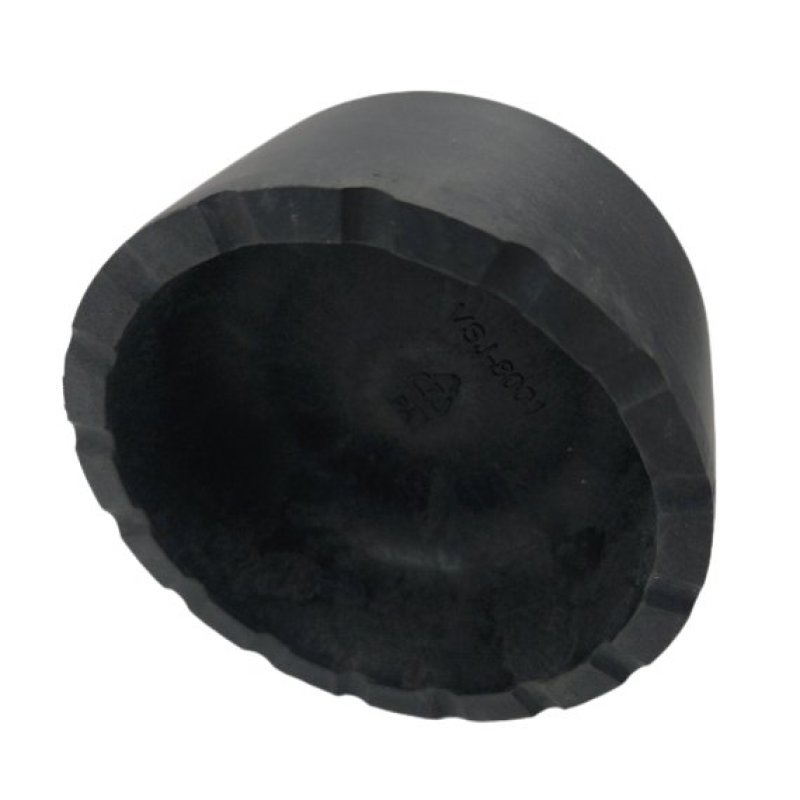

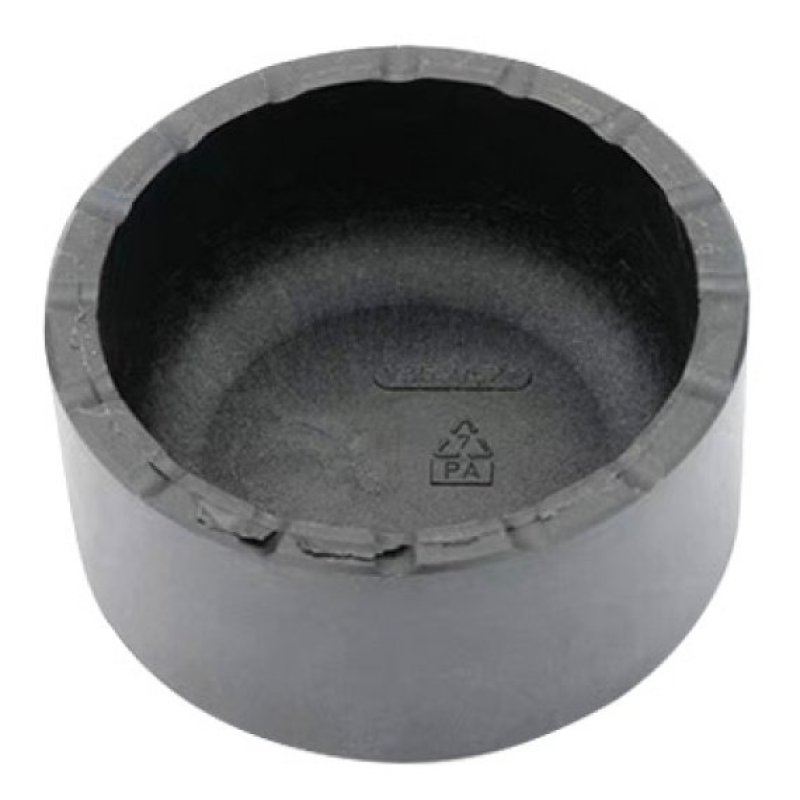

Plunger-For-Optipulse-Fabric Filters-Plunger-Pulse-Baths-Optipow-135

Product description

INTRODUCTION TO OPTIPOW AIR DUST COLLECTOR

Compact pulse valve for Optipulse fabric filters of various types.

is the result of many years of experience in the field of fabric filter technology.

acts quickly with high efficiency.

It has small dimensions, the figure after the name is on the piston diameter.

Primarily intended for use in conjunction with a round pressure tank.

easy to install and maintain.

has a very robust construction, designed for normal use at air pressures up to 600 kPa (6 bar).

Normal maximum operating temperature (compact pulse valve) 50°C.

OPTIPOW AIR DUST COLLECTOR FUNCTION

Volume A is connected to the pressure tank through a gap between the valve body and the plunger. Volume A has the same pressure as the pressure tank.

Due to the larger pressure surface of the plunger in volume A, the piston is pressed against the impulse pipe and sealed between the pressure tank and the impulse pipe.

Volume B is released through a solenoid valve connected to the pilot air system. The area on the pilot air side is larger, so the pilot diaphragm is pressed against the top of the valve body and isolates volume A from the environment.

INSTALLATION OF OPTIPOW AIR DUST COLLECTOR

ASSEMBLY INSTRUCTIONS

Before assembling OPTIPOW units, it is important to thoroughly clean the inside of the pressure tank. Any particle in the tank can cause serious problems with the operation of the pulse valves in the future.

The OPTIPOW valve is designed for vertical installation as standard. When the valve is to operate horizontally, an additional internal spring must be used. This will ensure that the plunger is always in the closed position when pressurizing the cleaning system.

OPTIPOW is usually supplied as a single unit in special packaging. For detailed assembly instructions for the individual parts, please refer to the OPTIPOW assembly drawing.

First, unpack the valves when installing them.

Make sure there is no visible damage to the valve.

Make sure there is no foreign material inside the valve.

Make sure the top of the impulse tube is smooth and free of burrs.

The item numbers below refer to those shown in Figure 1.

Place the piston (item 4) into the top of the impulse tube. Lubricate the O-ring on the outside of the valve body (item 1) and align the house with the plunger. When installing the impulse valve, be careful not to damage the O-ring. Rotate the house so that the solenoid faces the desired direction. Tighten the four bolts with your fingers as far as possible, then make the final adjustment with a cross-shaped tool to avoid damaging the O-ring. Torque to specifications.

Notes on installation of spare parts

When receiving an OPTIPOW unit as a spare part, there are some additional installation considerations to keep in mind.

Before removing the faulty OPTIPOW from the pressure tank, check the following.

First, unpack the valves when installing them.

Make sure there is no visible damage to the valve.

Make sure there is no foreign material inside the valve.

Check the solenoid label to make sure it is the correct type installed.

Due to the risk of particles, moisture and other foreign objects entering the tank, never leave the pressure tank unattended with the tank opening open. If the job cannot be done, replace the old OPTIPOW unit or close the opening in another way. Never pressurize an incomplete tank.

Remove the OPTIPOW block.

Injection through the hole of information about the state of the inside of the pressure tank, particles, moisture, etc.

If necessary, vacuum the inside of the tank until a satisfactory result is archived.

Pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse jet valve, directly from China manufacturer - Qingdao Star Machine Technology Co., Ltd. Professional manufacturer of Alstom optipow 135 solenoid valves, the service life can reach 1,000,000 times. Resistant to low temperature -60 ° C and high temperature 150 ° C. Widely used in air purification and dust removal of thermal power plants, glass factory dust removal, laboratory dust removal and other industrial dust removal. We have a sales and after-sales service system all over the world. Our goal is to continuously improve the quality and continuously reduce the cost until customers' needs are met.

Low compressed air loss: The OPTIPOW pulse valve reduces compressed air consumption compared to the diaphragm type.

Compact size: OPTIPOW pulse valve is much smaller than the diaphragm valve shape, pulse valve shape, which means that the distance between bags is not limited by the valve size, only the process parameters (Babbe gas, no filter, fly ash type and concentration) determine the bag size, two OPTIPOW pulse valves short distance can be passed up to 160mm.

OPTIPOW pulse valve has two specifications: 105 and 135, the number indicates the piston diameter.

OPTIPOW piston type pulse valve

Model OPTIPOW piston pulse cleaning valve

OPTIPOW 135 (24В) V1614718-0100

OPTIPOW 135 (100V, 50Hz) V1614718-0301

OPTIPOW 135 (120V, 60Hz) V1614718-0400

OPTIPOW 135 (120V, 60Hz, UL CERTIFIED) V1614718-0700

OPTIPOW 135 (without solenoid, rotates 90° C) V1614718-0800 -

Membrane V4549902-0100

O-ring (fluororubber 64.5 x 3) 8003-5573

O-ring (Nitril 70SH 64.5 x 3) 2136-1422

Sealing ring (114.5x3) 2136-1441

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3629022-0100

Round washer (SS3576-5-200HV FE/ZN25) 4903-2146 -

Rubber disc V3640660-0100

Solenoid Valve (24VDC) V3611471-0100

Solenoid valve (100V, 60Hz) V3611471-0201

Solenoid Valve (110V, 50Hz) V3611471-0300

Solenoid Valve (110V, 60Hz) V3611471-0200

Solenoid Valve (120V, 60Hz) V3611471-0400
