Product description:

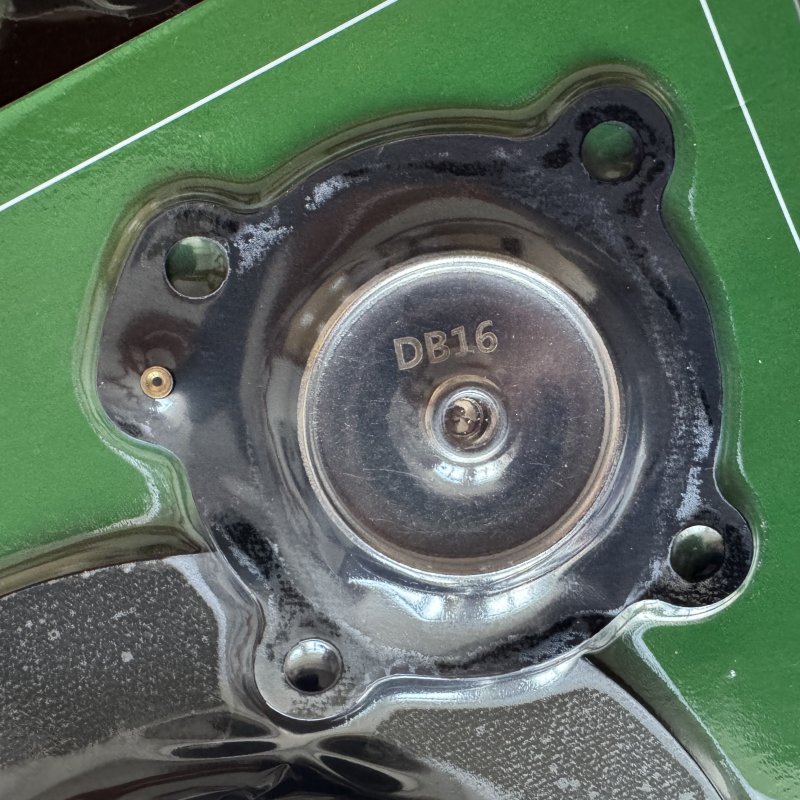

Part number: DB116,DB16
Model: Pulse valve
Application: drainage, dust collection, Optipulse fabric filter Optipow pulse blades
Standard: DIN
Application: industrial use
Product Description
The diaphragm is the core component of a pulse valve.When the pulse valve is energized, the compressed air above the diaphragm is discharged rapidly, driving the main diaphragm to open quickly.When the pulse valve is de-energized, air flows through the vent of the main valve to balance the pressure on both sides of the diaphragm, and the valve closes immediately.

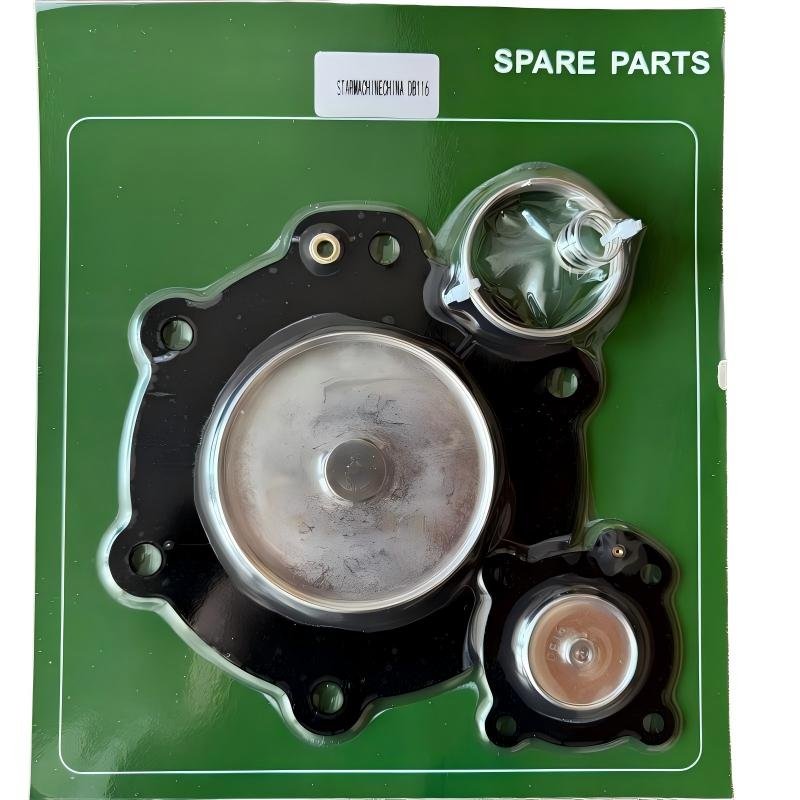

Product name | DB116/C Diaphragm Repair Kit |
Diaphragm Material: | NBR |
Fitted Valves: | 2 Inch VNP, VEM Mecair Pulse Jet Valves |

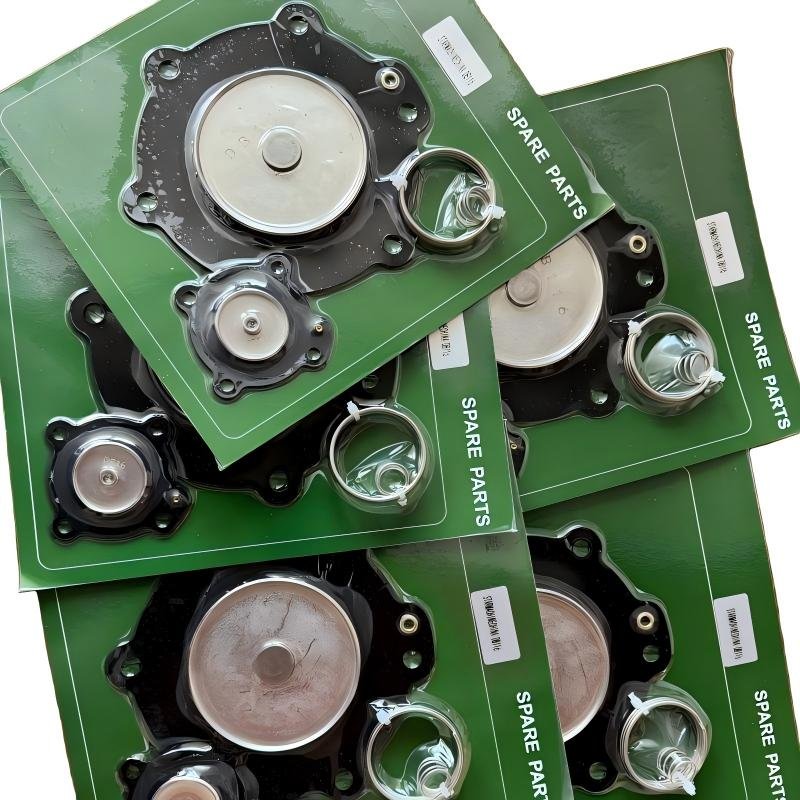

Product type: Diaphragm repair kit
Model reference: DB116
Temperature range:Standard
NBR: -10 °C to +80 °C
Dperating pressure: Typically 0.5 -7bar (depending on valve model)

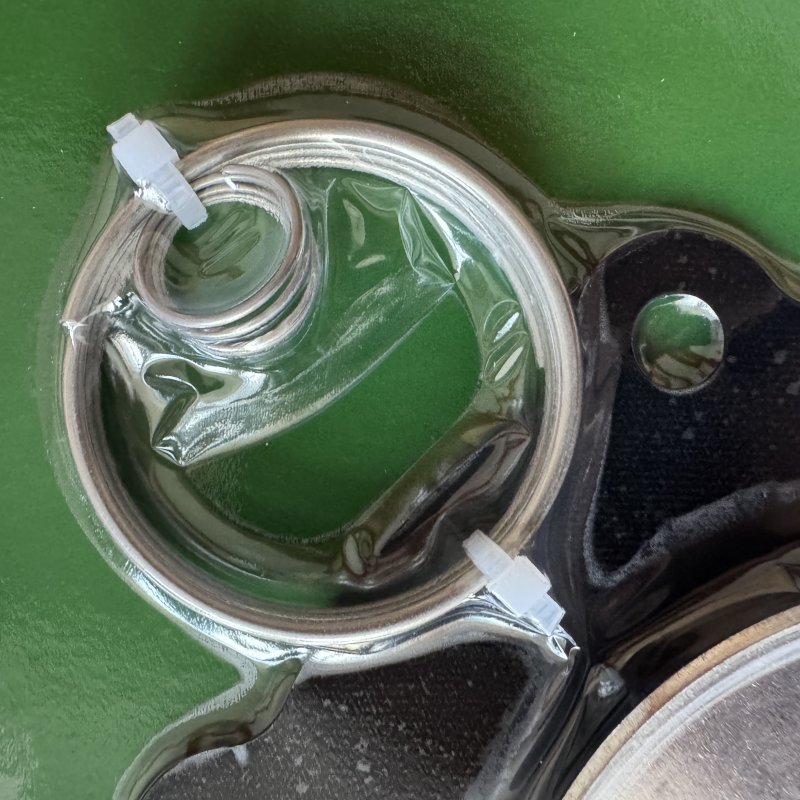

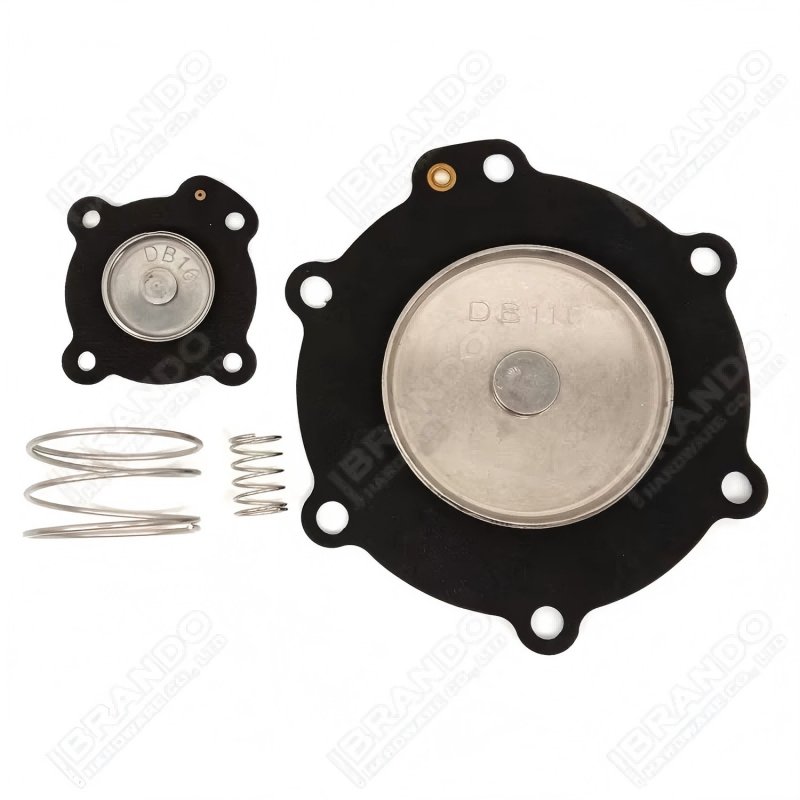

Configuration: Includes diaphragm,spring, and sealing components
