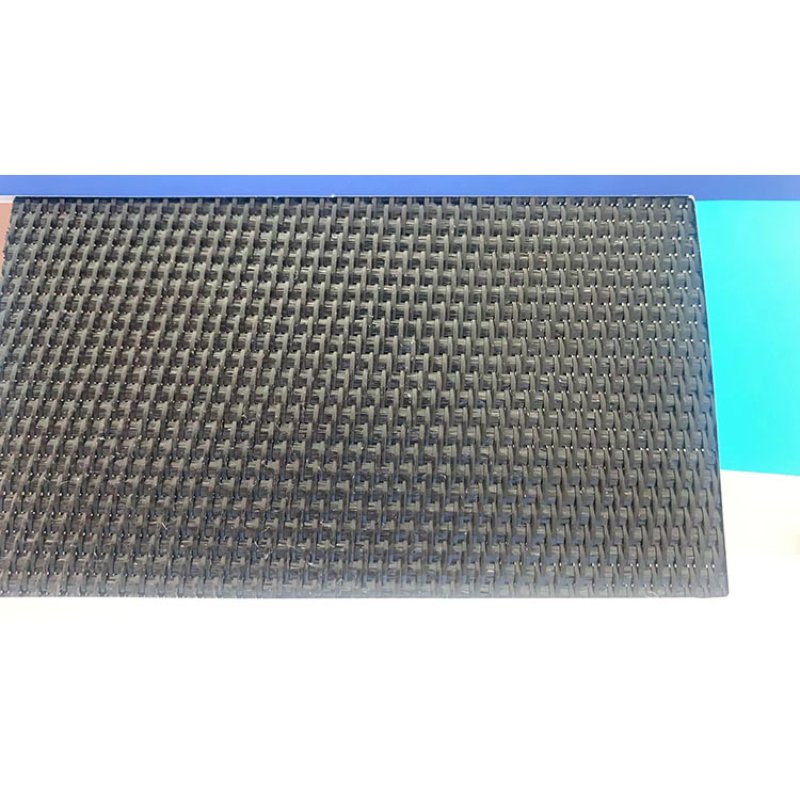

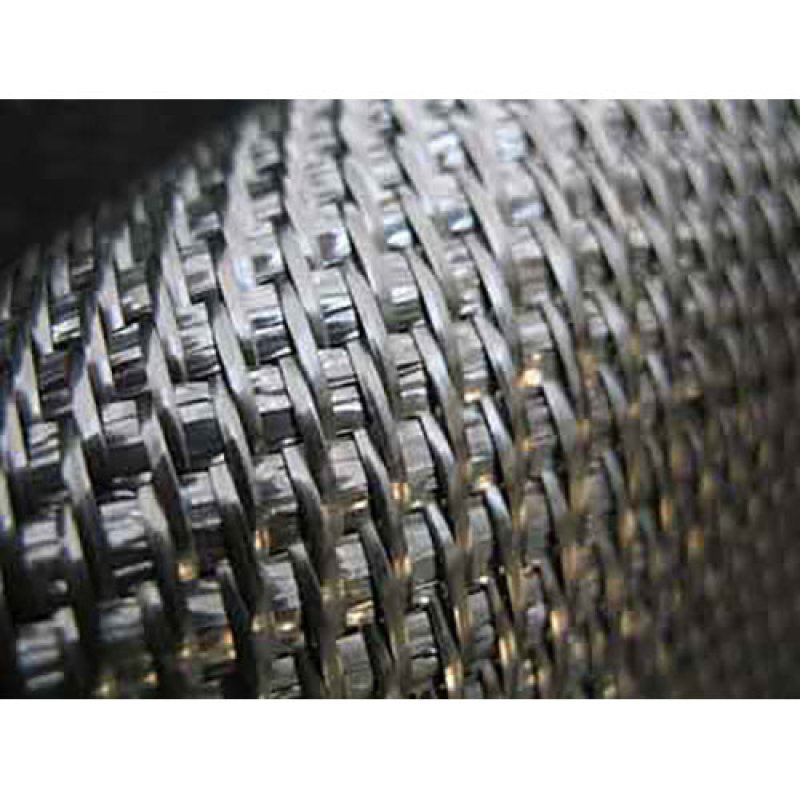

SMCC high quality woven geotextile fabric can be made from a variety of materials, but the most common materials are usually woven fabrics or yarn blends. Woven geotextiles usually resemble plastic film, and the weave can only be seen upon closer inspection. Whether you need a medium or light woven geotextile fabric depends entirely on the purpose of your construction project. If you are unsure of what type of geotextile you need, please contact our engineers for advice.
Woven geotextiles and nonwoven geotextiles are the same category of geotextiles, which are permeable fabrics often used in engineering and construction for filtration, separation, reinforcement, drainage or soil protection.
Woven geotextiles have a single, uniform fiber length and are strong, making them suitable for construction projects where soil stability is required, such as parking lots and road construction. Woven geotextiles are resistant to any degradation from ultraviolet light and are more suitable for long-term use.
The easiest way to differentiate between the two types of geotextiles is to check the elongation. In general, nonwoven geotextiles have a much higher elongation than woven geotextiles. Specifications for nonwoven geotextiles include an elongation factor of more than 50 percent, while woven geotextiles typically have an elongation factor of 5 to 25 percent.
TDS of woven geotextile fabric
| Property | Test method | Units | PPWGT500 |
| Wide width tensile strength | |||
| MD@Ultimate | ASTM D4595 | lb/in (kn/m) | 90 |
| CD@Ultimate | ASTM D4595 | Pounds per inch (KN/m) | 105 |
| Wide width stretch elongation | |||
| M.D | ASTM D4595 | % | 20(макс.) |
| COMPACT DISC | ASTM D4595 | % | 20(макс.) |
| Seam strength factor | ASTM D4595 | lb/in (kn/m) | 400(70) |
| CBR puncture | АСТМ Д6241 | pounds (N) | 2000(8900) |
| Apparent Orifice Size (AOS) | АСТМ D4751 | mm(American sieve) | 0.43(40) |
| Water consumption | АСТМ D4491 | l/min/m2 (gal/min/ft2) | 1500 |
| UV resistance % lasts for 500 hours | АСТМ D4355 | % | 90 |
| Physical property | |||
| Square | АСТМ D5261 | г/м2 (унция/ярд2) | 500г |
(1) Woven geotextile can be used as an insulating layer between road ballast and road base or between road base and soft base.
(2) Woven geotextile can also be used as an insulating layer between artificial embankment, rock pile or material and foundation, insulation between different layers of permafrost, anti-seepage and reinforcing effect.
(3) Insulating layer of woven geotextile between road, airport, railway slag and artificial rock fill and foundation.
(4) Woven geotextile is used to strengthen the weak base in the project of highway (including temporary highway), railway, embankment, earth and rock dam, airport, sports ground, etc.
