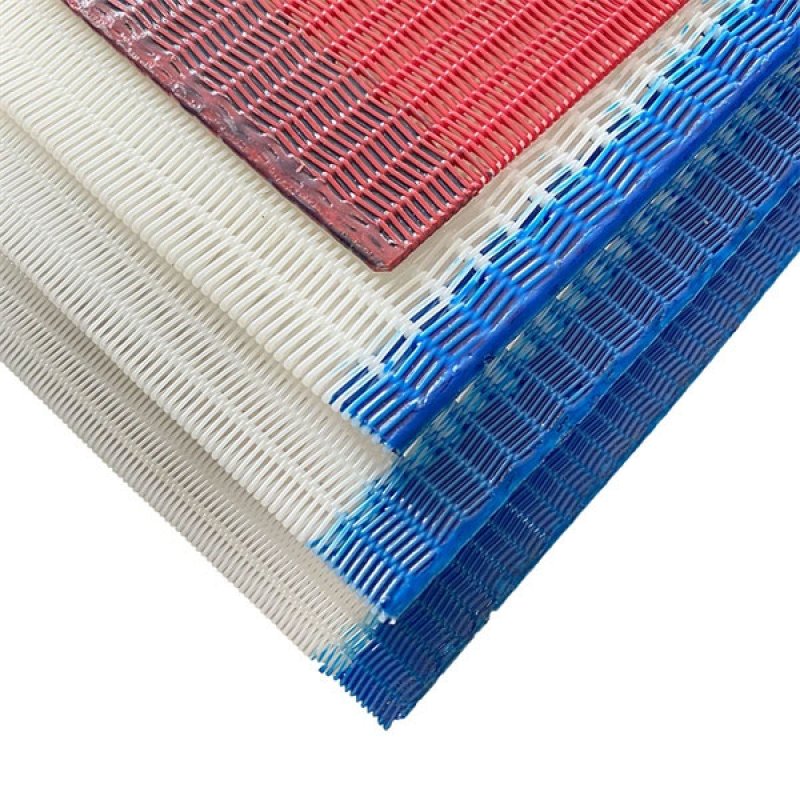

Wholesale low price Spiral dryer fabrics from Qingdao Star Machine, which is a kind of paper machine clothes, which is used in the drying section of paper machine as the spiral dryer fabrics for paper machine, the spiral dryer fabrics are also called spiral dryer fabrics with the short name SLDF. We will provide customers with 24 hours a day quality after-sales service.
Qingdao Star Machine's durable spiral drying fabrics with high quality, spiral drying fabrics are suitable for drying packaging paper, cultural paper, cardboard paper and pulp board which are required in large quantities. The fabric is widely used in papermaking, mining, food, pharmaceutical, printing and dyeing, rubber industries. It can also be used as conveyor belt and laminator matching belt.
Spiral drying fabrics are a special fabric specially used for sludge dewatering or material drying. The fabric combines the characteristics of effective dewatering, wear resistance, corrosion resistance and good air permeability, making it able to work stably under high loads and complex conditions.
Spiral drying fabrics, which are made of special material, have the characteristics of high temperature resistance, abrasion resistance, aging resistance, etc.

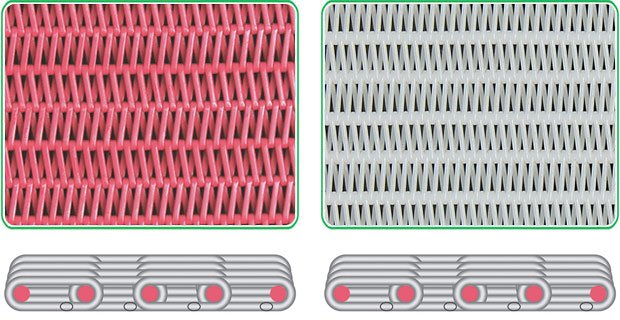

| Types of fabric for spiral drying | Fabric model | Wire diameter (mm) | Strength (N/cm) | Air permeability (m3/m2h) | |
| Warp | Duck | Surface area | |||
| Royal Loop | SMCCF01 | 0.90 | 1.10 | ≥2300 | No 21000±500 |
| Big loop | SMCCF02 | 0.90 | 1.10 | ≥2000 | 18000±500 |
| Average cycle | SMCCF03 | 0.70 | 0.90 | ≥2000 | 16000±500 |
| Moderate cycle | SMCCF04 | 0.6 | 0.80 | ≥2000 | 15000±500 |
| Small loop | SMCCF05 | 0.50 | 0.70 | ≥1800 | 15000±500 |
| Middle loop (flat wire) | SMCCF06 | 0.48*0.82 | 0.80 | ≥2000 | 10000±500 |
