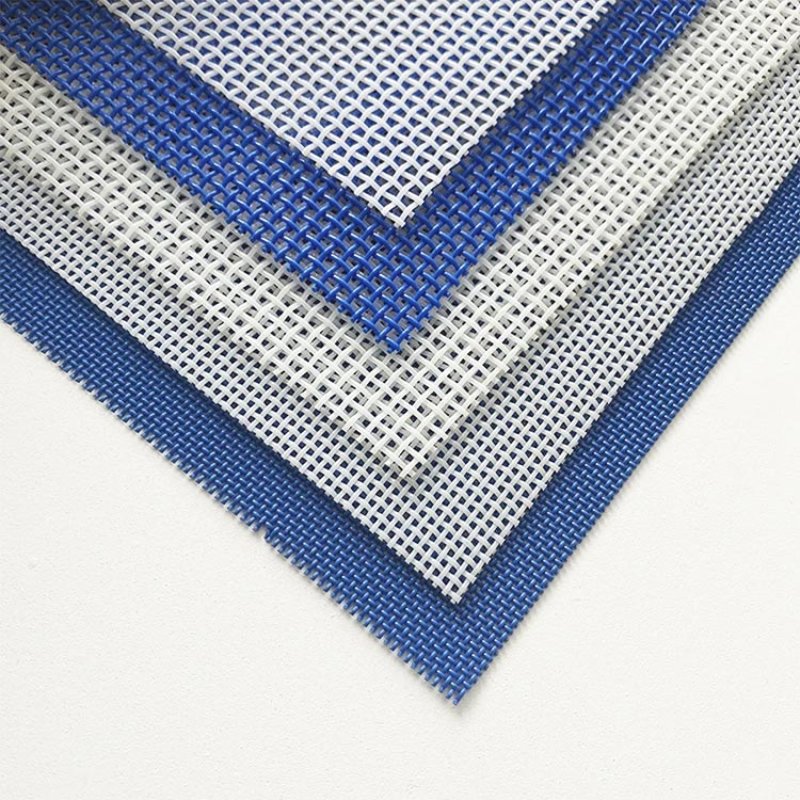

Qingdao Star Machine's durable polyester linear screen fabric is an important industrial fabric, which is made of polyester fiber through a special weaving process and has a linear mesh structure. This screen fabric has a wide range of applications in many fields such as chemical, environmental protection, pharmaceutical, food and other industries in the process of filtering, sifting and separation. For more assured purchase, we can provide samples for quality checking.
Wholesale cheap polyester linear screen fabric from Qingdao Star Machine, which can also be used in high-density cardboard production, food drying, sludge dewatering equipment, concentrate and other filtration industries.
The features of polyester linear screen fabric include:
1. Excellent corrosion resistance: the polyester fiber itself has good chemical stability, can resist the erosion of various acids, alkalis and organic solvents, which makes the polyester linear screen fabric in harsh chemical conditions can also maintain stable performance.
2. High strength and wear resistance: polyester fiber has high strength and wear resistance, which makes the polyester linear screen fabric not easy to break during use, prolonging the service life.
3. Good air permeability: the linear mesh structure makes the mesh fabric have good air permeability, which helps to achieve effective filtration and separation effects.
| Fabric model | Wire diameter (mm) | Density (wire/cm) | Strength (N/cm) | Air permeability (m3/m2h) | ||
| Warp | Duck | Warp | Duck | Surface area | ||
| SMCCA01 | 0.90 | 0.90 | 3.14 | 3.14 | ≥1650 | 20000±500 |
| SMCCA02 | 0.80 | 0.80 | 5.1 | 5.3 | ≥1700 | 15840±500 |
| SMCCA03 | 0.80 | 0.80 | 6.6 | 6.5 | ≥1650 | 11600±500 |
| SMCCA04/Синий/Белый | 0.70 | 0.70 | 6.3 | 6.3 | ≥1800 | 11000±500 |
| SMCCA05/Синий/Белый | 0.80 | 0.80 | 7.8 | 7 | ≥1800 | 7000±500 |
| SMCCA06 | 0.50 | 0.50 | 8.85 | 8.46 | ≥1850 | 10100±500 |
| SMCCA07 | 0.50 | 0.50 | 13.5 | 8.5 | ≥1900 | 6500±500 |
| SMCCA08 | 0.45 | 0.45 | 10 | 8.6 | ≥1900 | 15570±500 |
| SMCCA09 | 0.50 | 0.60 | 9.4 | 9 | ≥1950 | 9000±500 |
| SMCCA10 | 0.80 | 0.80 | 7.48 | 6.69 | ≥1950 | 6400±500 |
| SMCCA11 | 0.25 | 0.27 | 11.8 | 10.6 | ≥2000 | 5600±500 |
| SMCCA12 | 0.40 | 0.35 | 16 | 13 | ≥2100 | 5500±500 |
