Qingdao Star Machine high quality PET spiral filter press Mesh is a type of belt commonly used in belt dewatering press filtration. Our Poleyster spiral mesh belt is versatile and can be used in various industries such as paper making, coal mining, food, medicine, printing and dyeing, and rubber products. They can also serve as conveyor belts and laminators supporting mesh belts. Polyester Mesh filter press ensures the continuous production of advanced industrial equipment and greatly improves production efficiency for our customers.

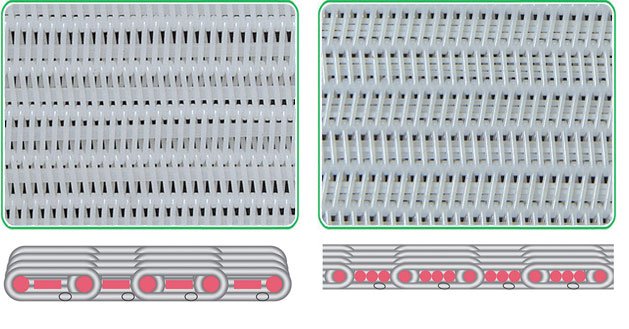

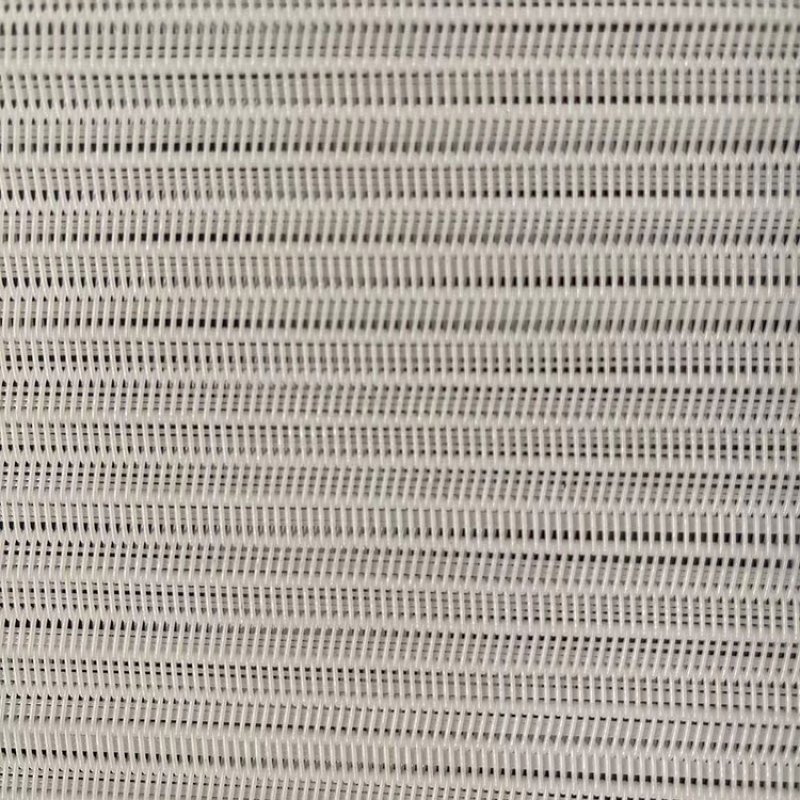

PET Spiral Filter Press Mesh is created by winding polyester monofilaments into spiral rings and connecting them with a weft thread to form a spiral mesh. This mesh has a smooth surface, excellent air permeability, and high temperature resistance. It also has an interface that simplifies installation.
The inclusion of these filament yarns gives the PET Spiral Filter Press Mesh better press and filter performance. The presence of filler yarns increases the thickness and strength of the mesh belt, which in turn improves the abrasion resistance and durability of the mesh belt during the pressing process.
PET Spiral Filter Press Mesh is mainly used for press filtration in belt dewatering machines. In belt dewatering machines, polyester filter presses are used as part of the filtration and dewatering unit. They are responsible for separating the solid particles suspended in water and removing water from the solid material during the pressing process to dewater the material.
These PET Mesh Spiral Filter Presses are commonly used in a wide range of applications in wastewater treatment, sludge dewatering, chemical, food and other industries. They can effectively handle large amounts of suspended solids and provide efficient dewatering and filtration to meet the demand for clean and dry products in industrial production.
In general, PET spiral filter press mesh plays an important role in belt dewatering machines and other industrial equipment due to its excellent filtration and dewatering properties, helping to achieve effective solid-liquid separation and material processing.
| Types of fabric for spiral drying | Wire diameter (mm) | Strength (N/cm) | Air permeability (m3/m2h) | ||
| Warp | Duck | Filler | Surface area | ||
Big loop | 0.90 | 1.10 | 0,90×4 | ≥2300 | No 10231±500 |
| 0.90 | 1.10 | 0,90×5 | ≥2300 | No 6317±500 | |
Average cycle | 0.70 | 0.90 | 0,80×3 | ≥2000 | 10320±500 |
| 0.70 | 0.90 | 0,80×4 | ≥2000 | 8500±500 | |
| Small loop | 0.52 | 0.70 | 0,68×3 | ≥1800 | 2850±500 |
| Middle loop (flat wire) | 0.70 | 0.70 | (J)0,24*0,85 | ≥2000 | 10100±500 |
