SMCC Durable Polyester Filter Tape is a common water filtration material, which is a mesh structure woven from polyester fibers and has high strength and durability. Polyester filter belts are divided into single-layer mesh and double-layer.

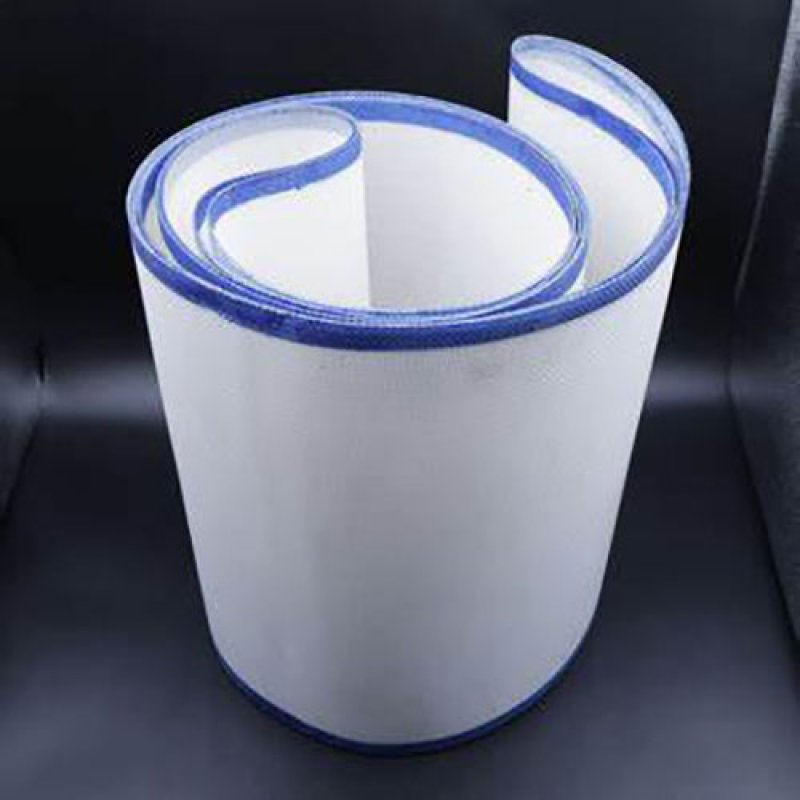

Polyester Filter Tape
| Model | Wire Diameter (mm) | Density/cm | Hole size | Porosity | ||
| Base | Parallel | Base | Parallel | millimetre | % | |
| CXW25254 | 0.22 | 0.25 | 27-28 | 22-23 | 0,144×0,194 | 17.3 |
| 25274-2 | 0.22 | 0.27 | 27-28 | 18.5-19.5 | 0,144×0,256 | 19.4 |
| 27234-1 | 0.20 | 0.23 | 29.5-30.5 | 23.5-24.5 | 0,133×0,187 | 17.9 |
| 27234-2 | 0.20 | 0.23 | 30-31 | 23.5-24.5 | 0,128×0,187 | 17.5 |
| 27254 | 0.20 | 0.25 | 29.5-30.5 | 21.5-22.5 | 0,133×0,204 | 18 |
| 27274 | 0.20 | 0.27 | 29.5-30.5 | 21-22 | 0,133×0,195 | 16.8 |
| 29234 | 0.20 | 0.23 | 31-32 | 21-22 | 0,177×0,235 | 18.7 |
| 29254 | 0.20 | 0.25 | 31-32 | 20.5-21.5 | 0,177×0,226 | 17.6 |
| 31204 | 0.17 | 0.20 | 34-35 | 29-30 | 0,120×0,139 | 17.0 |
| 25358 | 0.22 | 0.35 | 27.5-28.5 | 18.5-19.5 | 0,137×0,176 | 12.9 |
| 25408 | 0.22 | 0.40 | 27.5-28.5 | 18.5-19.5 | 0,137×0,176 | 12.9 |
| 27358 | 0.20 | 0.35 | 29.5-30.5 | 19-20 | 0,133×0,163 | 12.7 |
| 27408 | 0.20 | 0.40 | 29.5-30.5 | 19-20 | 0,133×0,163 | 12.7 |

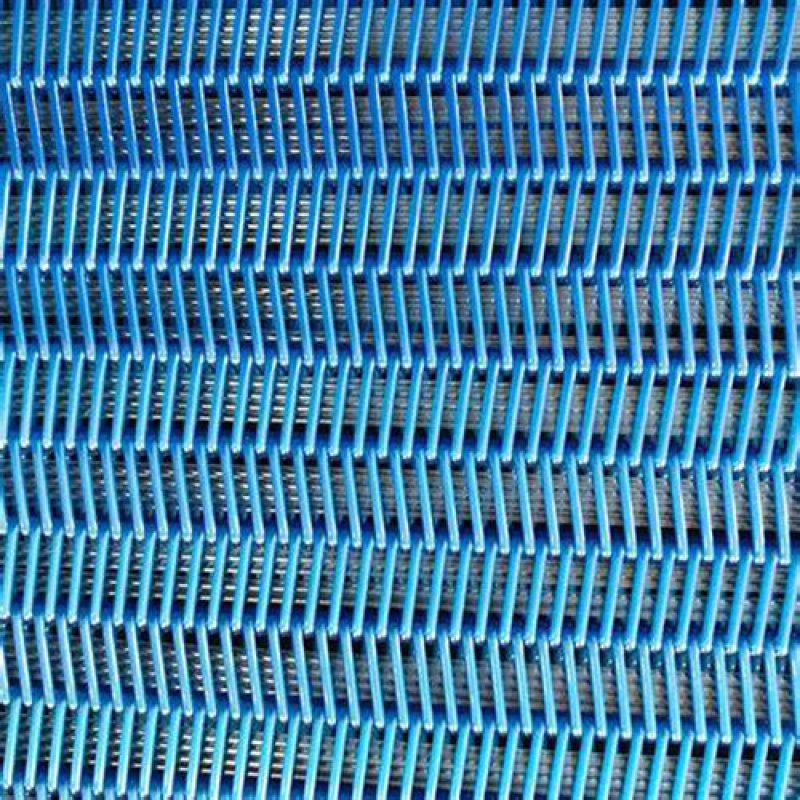

Polyester filter belt has the advantages of alkali resistance, acid resistance, and high temperature resistance. After high-temperature mode, the operation of the tape is stable, and it is not easy to deform. Polyester filter tape comes in spiral dry mesh and square hole mesh, which can be selected in a variety of colors such as white, yellow, or black. The mesh size can be selected from 25 to 420, and the width can be cut or customized according to customer needs.
Polyester filter belt has simple structure, low raw material cost, high filtration efficiency, easy operation, easy installation and maintenance, high filtration accuracy, low resistance, high flow rate, corrosion resistance, high temperature resistance, easy cleaning, wide range of applications, etc.
Polyester Filter Belt is widely used in medicine, food processing, daily chemical industry, sewage filtration, etc. Polyester Filter Meshes have a wide range of applications and are an effective and reliable filter material widely used in various fields.
