SMCC offers a polyester conveyor belt, it is a high-performance solution designed to meet the stringent requirements for dust and particle control. Made of high-quality polyester, this conveyor belt is highly durable and can withstand harsh environmental conditions for a long service life. Its sturdy construction and superior materials make it an ideal choice for improving the efficiency and durability of a conveyor system.
SMCC Industrial Polyester Filter Conveyor Belt is a conveyor belt made of polyester fiber because the raw material has excellent wear resistance, high temperature resistance, corrosion resistance and other characteristics suitable for a variety of harsh industrial environments. Industrial polyester filter mesh is mainly used for conveying and filtering materials, completing screening and separating materials in the process of transportation. This type of conveyor belt usually has high strength and stability, ensuring efficient operation in various environments.
Raw materials → calibration → weaving, → cleaning and inspection → primary heating → → secondary heating insert section → finished product packaging
Industrial polyester conveyor belts have various advantages, such as high filtration efficiency, high strength, wear resistance, high temperature resistance, corrosion resistance, good filtration performance, and easy cleaning, making them suitable for dynamic filtration and material transportation.

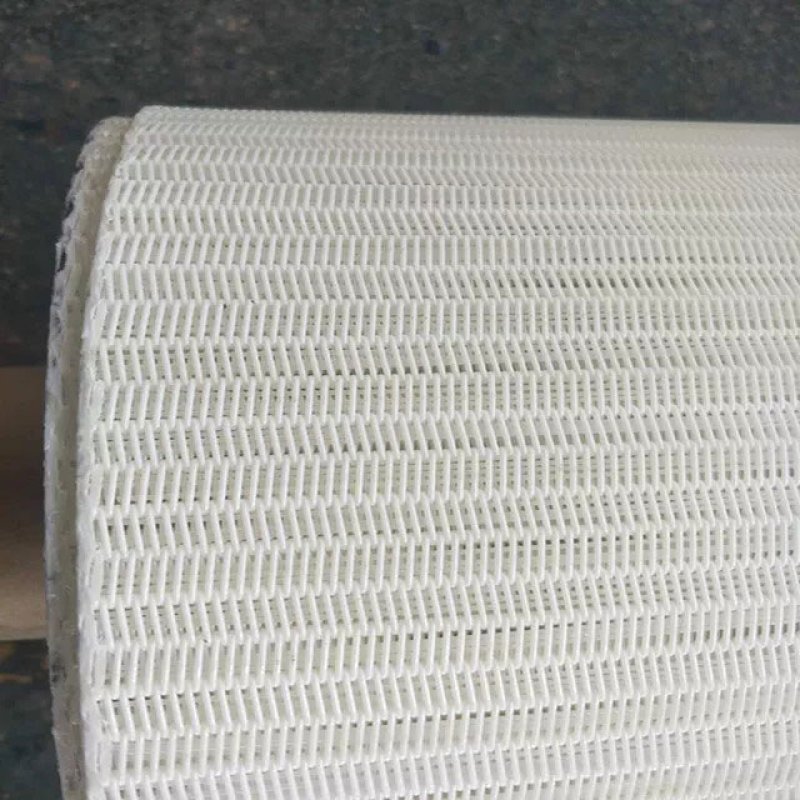

Spiral Polyester Filter Screen
| Item | Model | Permeability (m3/m2h) |
| Great circle | LGW4×8 | 16500-19500 |
| Middle Circle | LGW3.8×6.8 | 16500-19500 |
| Small circle | LGW3.2×5.2 | 16500-19500 |

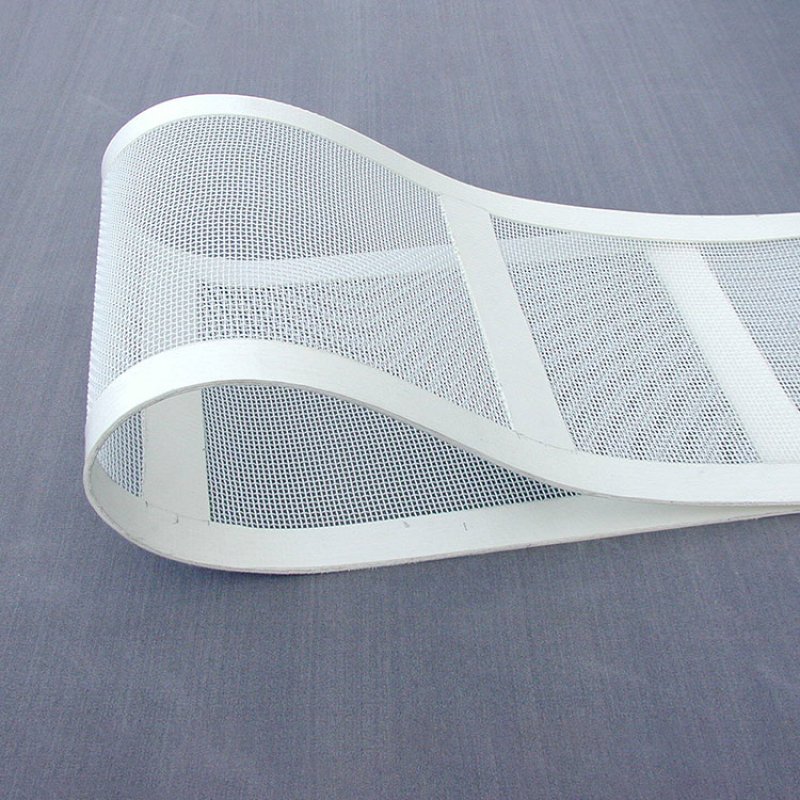

Polyester Filter Tape
| Model | Wire Diameter (mm) | Density/cm | Hole size | Porosity | ||
| Base | Parallel | Base | Parallel | millimetre | % | |
| CXW25254 | 0.22 | 0.25 | 27-28 | 22-23 | 0,144×0,194 | 17.3 |
| 25274-2 | 0.22 | 0.27 | 27-28 | 18.5-19.5 | 0,144×0,256 | 19.4 |
| 27234-1 | 0.20 | 0.23 | 29.5-30.5 | 23.5-24.5 | 0,133×0,187 | 17.9 |
| 27234-2 | 0.20 | 0.23 | 30-31 | 23.5-24.5 | 0,128×0,187 | 17.5 |
| 27254 | 0.20 | 0.25 | 29.5-30.5 | 21.5-22.5 | 0,133×0,204 | 18 |
| 27274 | 0.20 | 0.27 | 29.5-30.5 | 21-22 | 0,133×0,195 | 16.8 |
| 29234 | 0.20 | 0.23 | 31-32 | 21-22 | 0,177×0,235 | 18.7 |
| 29254 | 0.20 | 0.25 | 31-32 | 20.5-21.5 | 0,177×0,226 | 17.6 |
| 31204 | 0.17 | 0.20 | 34-35 | 29-30 | 0,120×0,139 | 17.0 |
| 25358 | 0.22 | 0.35 | 27.5-28.5 | 18.5-19.5 | 0,137×0,176 | 12.9 |
| 25408 | 0.22 | 0.40 | 27.5-28.5 | 18.5-19.5 | 0,137×0,176 | 12.9 |
| 27358 | 0.20 | 0.35 | 29.5-30.5 | 19-20 | 0,133×0,163 | 12.7 |
| 27408 | 0.20 | 0.40 | 29.5-30.5 | 19-20 | 0,133×0,163 | 12.7 |
Polyester Washing Filter Screen
| Model | Density/cm | Wire Diameter (mm) | Hole size | Porosity | Intensity | ||
| Base | Parallel | Base | Parallel | millimetre | % | N/SM | |
| HV18302 | 19,6±0,5 | 14±0,5 | 0.25 | 0.30 | 0.260.41 | 29.5 | ≥400 |
| XW18303 | 19,5±0,5 | 14±0,5 | 0.25 | 0.30 | 0.260.41 | 29.58 | ≥400 |
| XW16302 | 17,5±0,5 | 13,5±0,5 | 0.27 | 0.30 | 0.300.44 | 24.97 | ≥400 |
| XW16302 | 17,5±0,5 | 13,5±0,5 | 0.27 | 0.30 | 0.300.44 | 24.97 | ≥400 |
| XW16304 | 17,5±0,5 | 13,5±0,5 | 0.27 | 0.30 | 0.300.44 | 24.97 | ≥400 |
| XW16404 | 17,5±0,5 | 13,5±0,5 | 0.27 | 0.40 | 0.300.34 | 23.9 | ≥400 |
| XW10504 | 20,5±0,5 | 12±0,5 | 0.50 | 0.50 | ≥1600 | ||
Industrial Polyester Filter Conveyor Belts are widely used in fields such as brewing, sugar production, chemical industry, food manufacturing, mining, steel industry, coal, ports, energy, etc., due to its advantages of high strength, wear resistance, high temperature resistance, corrosion resistance, good filtration and easy cleaning. They are mainly used for filtration and material transportation.
Industrial Polyester Conveyor Belt is made of polyethylene terephthalate monofilament as raw material, which is formed and processed by warp and weft spinning method. It has the characteristics of long service life, light weight, easy mesh adjustment, corrosion resistance, good elasticity, easy screen printing, and great air permeability. Industrial polyester filter mesh is the most ideal equipment for dewatering, forming and drying in today's industry.
I. Installation Procedure
1. Open the conveyor belt of the polyester filter and measure the length and width of the mesh with a steel tape measure. Before using on the machine, visually inspect the appearance and make sure it meets the requirements.
2. Remove the frame from the paper machine and check for overhang marks on the parts that come into contact with the mains. Then cover with a net and put it on the machine. The "→" arrow on the grid should be marked in the direction of the machine.
3. After installing the rack, adjust the surface and tension of the polyester filter conveyor belt to 3-3.5kg/cm, run the waterproof machine at a slow speed, and adjust the tension to 4-6kg/cm when there is no problem on the surface of the mesh.
4. When stopping the machine, the high-pressure water should be turned off first, otherwise the network will be damaged. When washing the mesh, it is advisable to use a large liquid with a concentration of 5-10% and a temperature below 40 °C for normal dirt. It is not allowed to use a wire brush to clean dirt. After removing the dirt, it should be rinsed with clean water.
II, Precautions
Polyester Filter Conveyor Belt is a flammable material, and no open flame is allowed when working near the mesh. Especially during the maintenance of the machine, it is strictly forbidden to burn the mesh due to electric welding. When using it, do not use too much tension to prevent the guide roller from breaking. The guide roller must be flexible to prevent the mesh from deflecting and folding.
