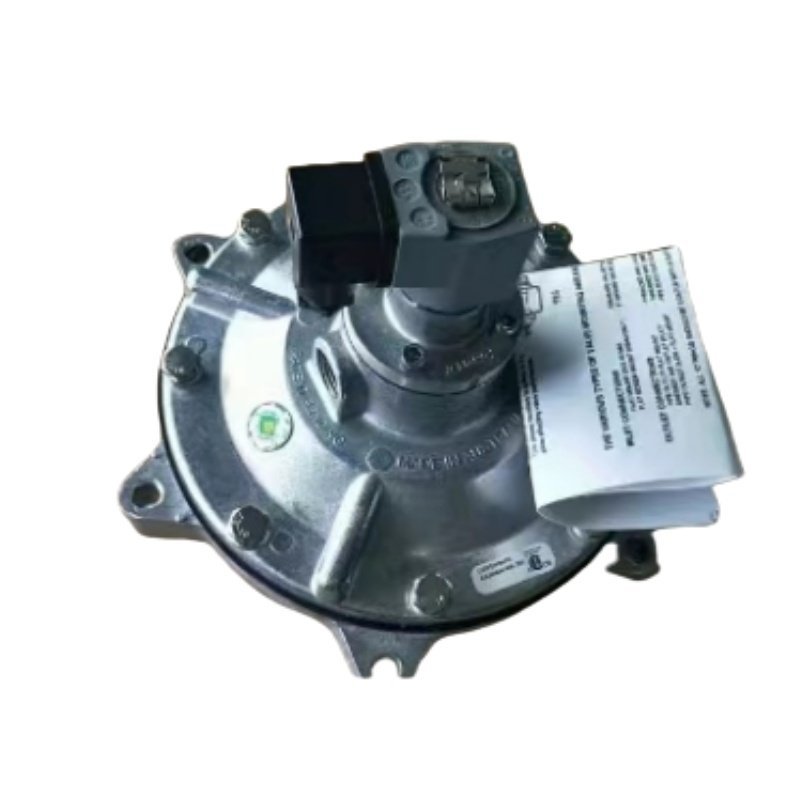

Pulse valve CA76MM DIAPHRAGM K7600
Model: CA76MM
Operating pressure range: from 0.3 to 0.8 MPa
Membrane material: NBR
Flange - Pulse Injector Valve: CAC25FS, CAC45FS
Immersion Injection Valves: CA50MM, CA62MM, CA76MM, CA89MM

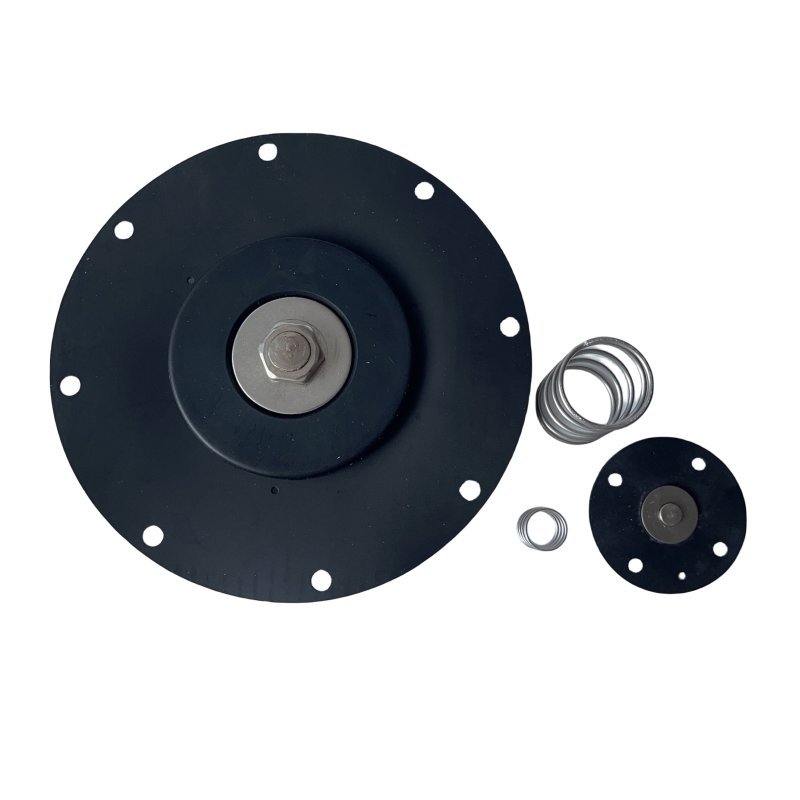

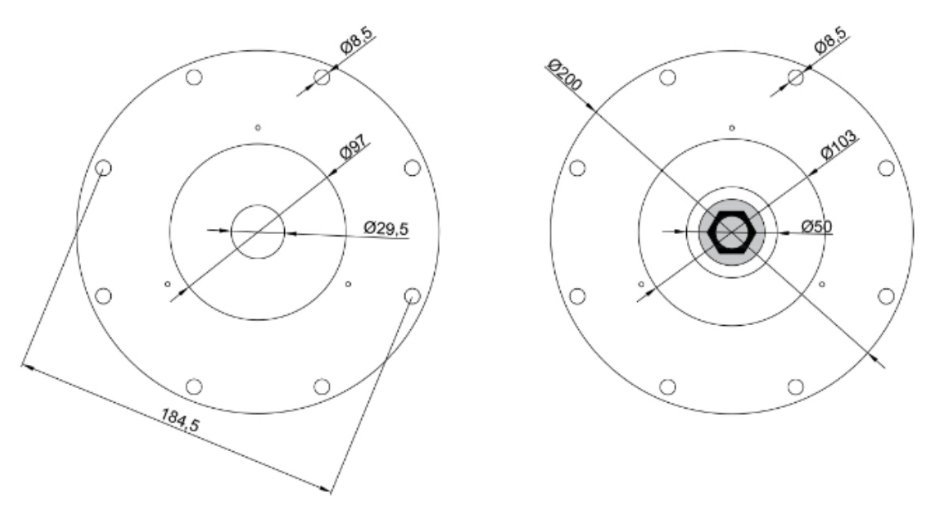

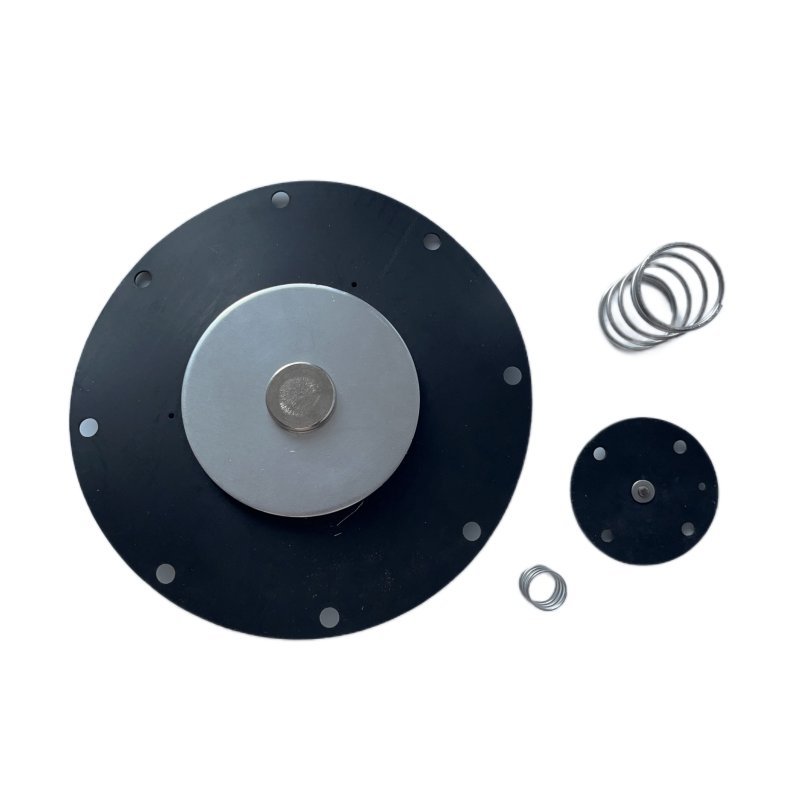

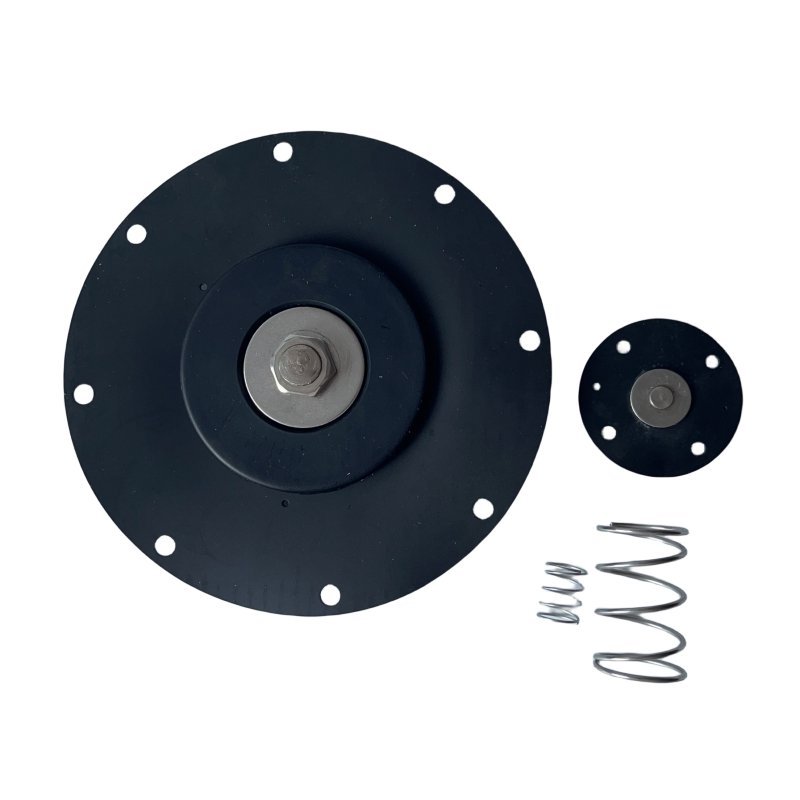

Diaphragm type CA76MM040 - 305
CA76MM Pulse injection valve; Reference numbers CA76M000, CA76MM040, CA76MM 010, CA76M 001, CA76MB 000 - 300, CA76 MM 000 - 305, CA76 MM001 - 300, CA76 MM 001 - 305, CA 76MM 001 - 305, CA 76MM040 - 300, CA76 MM040 - 305, CA76 MM 040 - 305, CA76 MM010 - 300, CA76 MM 010 - 305. Installing flat manifold joints; NBR diaphragm; Voltages 24V DC, 110V AC, 120V AC, 220V AC, 230V AC (50/60Hz) are available for choice, and other voltages can be customized according to your requirements.
Product properties
Model: CA-76MM DC24/AC220V
Structure: diaphragm
Dynamics: pneumatic
Media: Air
Main material: alloy
Port size: 3 inches
Pressure: low pressure
Temperature of the environment: temperature of the environment
Technical data table
| Type | hole | Gate size | Diaphragm | KV/CV |
| CA/RCA25MM | 25 | 1" | 1 | 26.24/30.62 |
| AC/RCA45MM | 45 | 1 1/2" | 2 | 39.41/45.99 |
| CA/RCA50MM | 50 | 2" | 2 | 62.09/72.46 |
| CA/RCA62MM | 62 | 2 1/2" | 2 | 106.58/124.38 |
| CA/RCA76MM | 76 | 3" | 2 | 165.84/193.54 |
