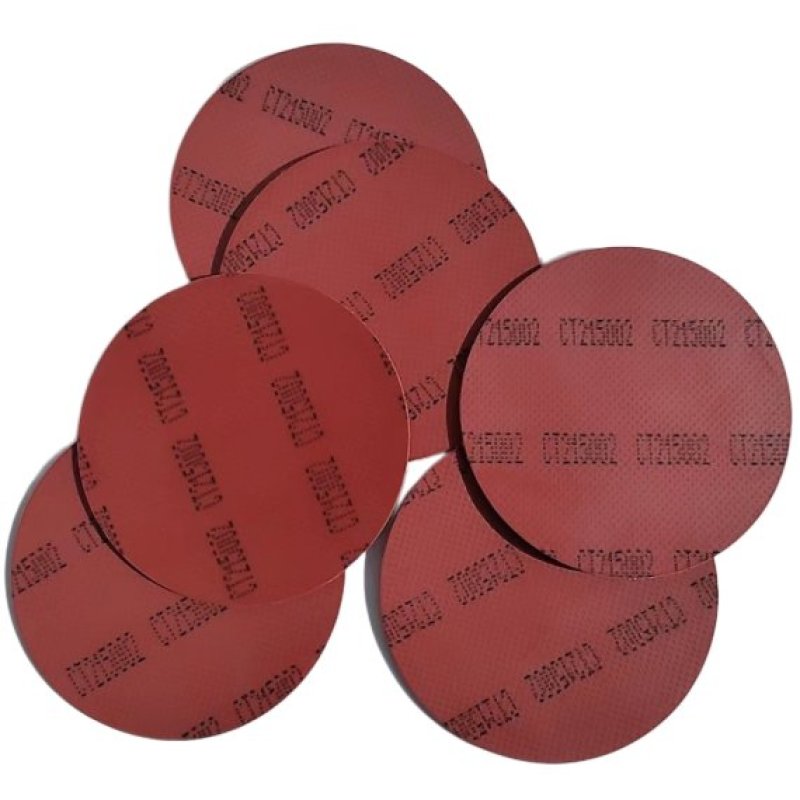

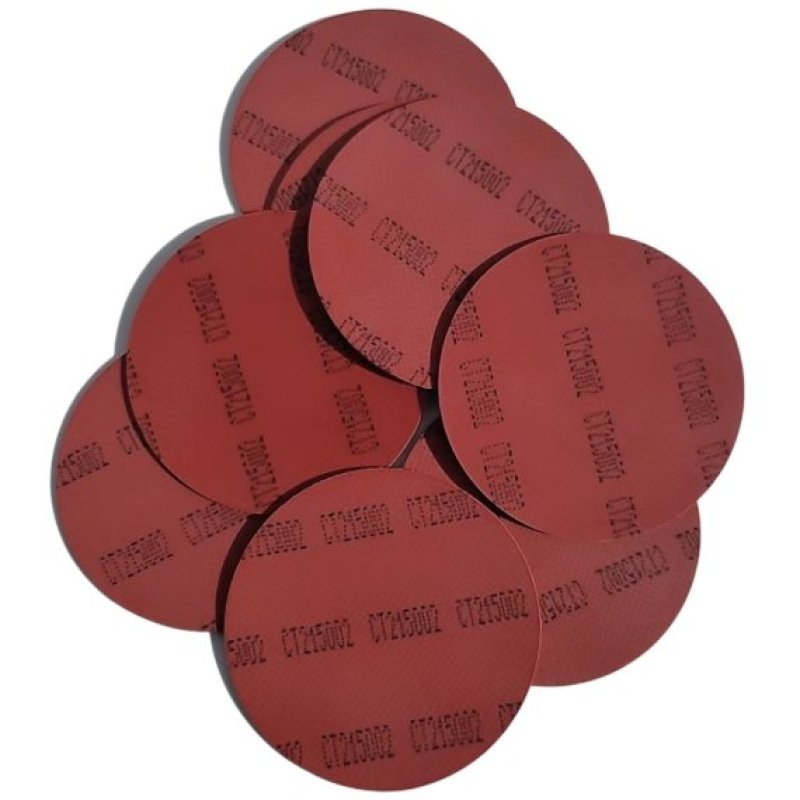

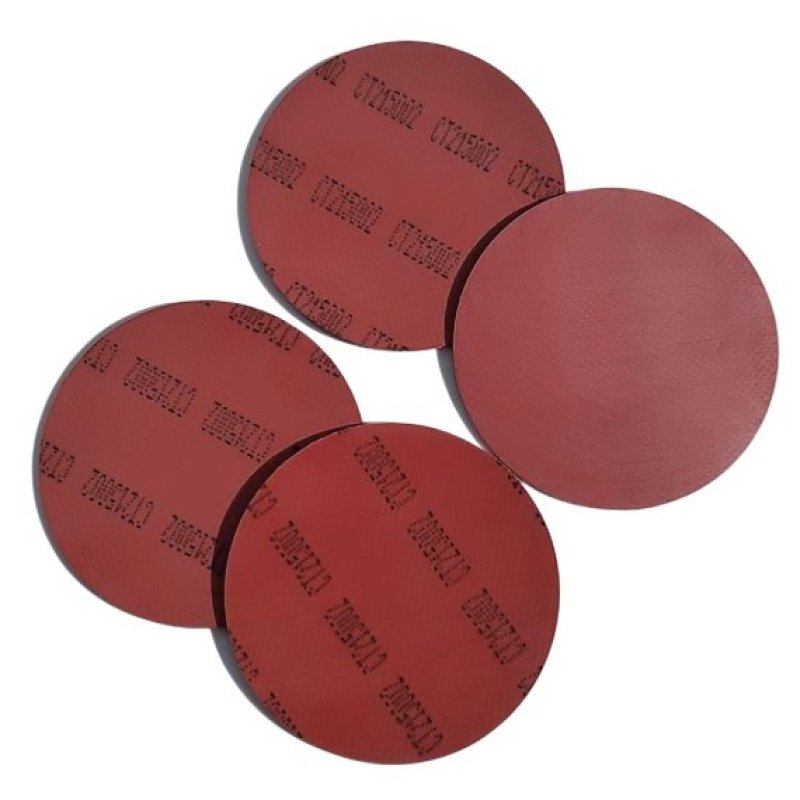

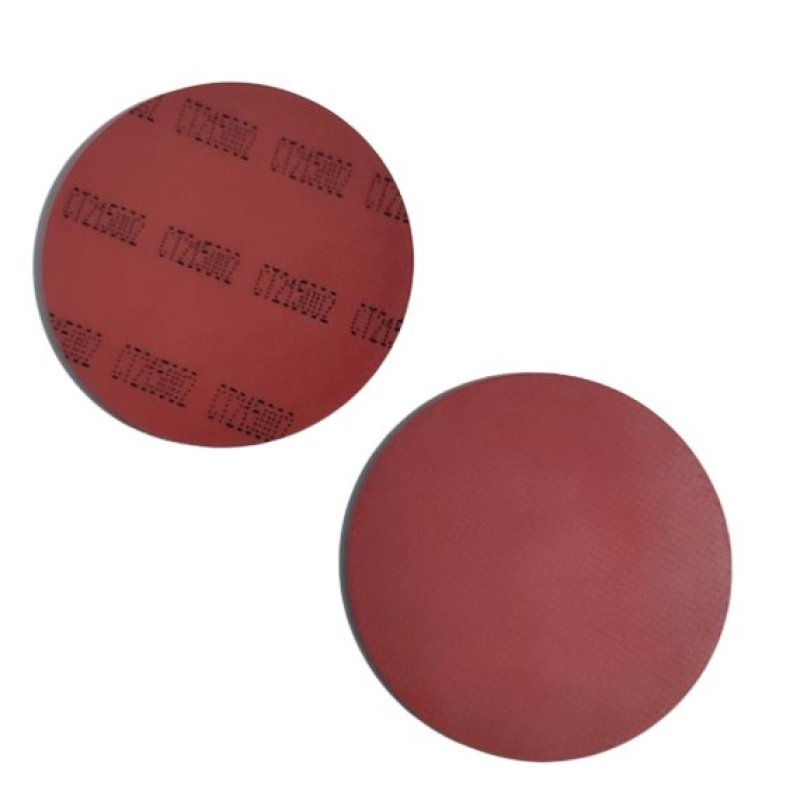

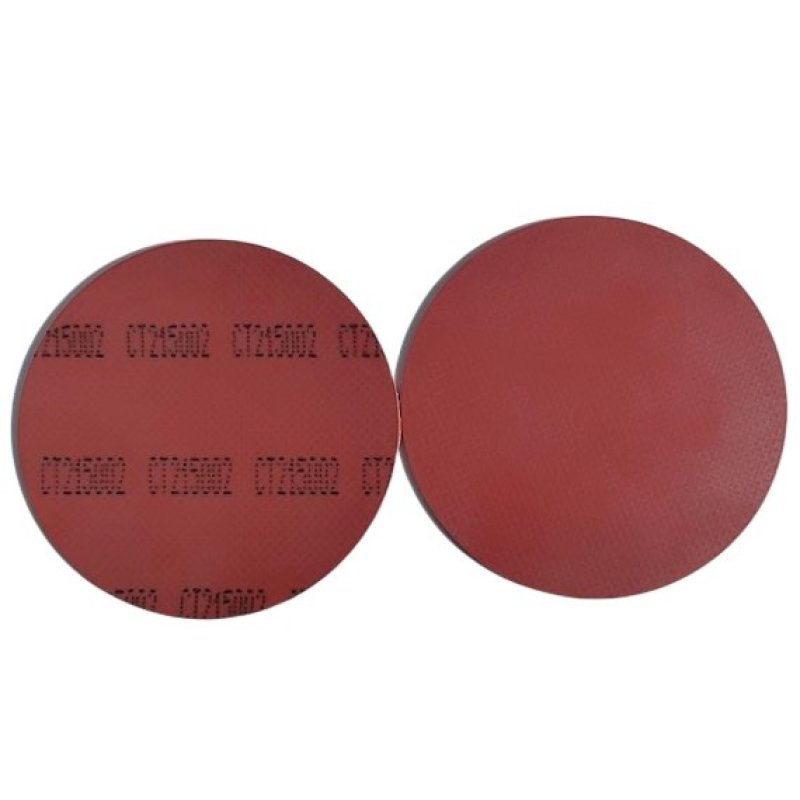

Diaphragm V4549902-0100 For Fabric Filters Optipulse Plunger Pulse Optipow

Product description

Compact pulse valve for Optipulse fabric filters of various types.

is the result of many years of experience in the field of fabric filter technology.

acts quickly with high efficiency.

It has small dimensions, the figure after the name is on the piston diameter.

Primarily intended for use in conjunction with a round pressure tank.

easy to install and maintain.

has a very robust construction, designed for normal use at air pressures up to 600 kPa (6 bar).

Normal maximum operating temperature (compact pulse valve) 50°C.

FUNCTION

Volume A is connected to the pressure tank through a gap between the valve body and the plunger. Volume A has the same pressure as the pressure tank.

Due to the larger pressure surface of the plunger in volume A, the piston is pressed against the impulse pipe and sealed between the pressure tank and the impulse pipe.

Volume B is released through a solenoid valve connected to the pilot air system. The area on the pilot air side is larger, so the pilot diaphragm is pressed against the top of the valve body and isolates volume A from the environment.

ERROR DETECTION AND DETECTION SCHEME

If you experience any problems or failures during testing, please contact our support team.

Error detection

Possible solution/Check

The valve does not pulsate:

Was the solenoid rotated during reassembly?

Is the pilot air connection made according to the instructions and is the pressure level correct?

Particles in tank and/or valve (see Appendix B for air quality requirements) ?

Operating conditions OK (temperature etc.)?

Are the bleed ports fully open (no debris blocking air flow from the pilot valve)?

Check the on/off valve is on, the non-retum valve is positioned correctly

Is the solenoid electrically connected correctly?

Leakage valve:

Leak test completed successfully (instructions) ?

Are all bolts assembled to the correct torque?

Is the sealing ring damaged?

Is the membrane of good quality (no deformation and flexible)?

Check the o-ring on the solenoid.

SPECIFICATION AND LIST OF SPARE PARTS

Piston type pulse valve OPTIPOW135

OPTIPOW 135 (24В) V1614718-0100

OPTIPOW 135 (100V, 50Hz) V1614718-0301

OPTIPOW 135 (120V, 60Hz) V1614718-0400

OPTIPOW 135 (120V, 60Hz, UL CERTIFIED) V1614718-0700

OPTIPOW 135 (without solenoid, rotates 90° C) V1614718-0800 -

Membrane V4549902-0100

O-ring (fluororubber 64.5 x 3) 8003-5573

O-ring (Nitril 70SH 64.5 x 3) 2136-1422

Sealing ring (114.5x3) 2136-1441

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3629022-0100

Round washer (SS3576-5-200HV FE/ZN25) 4903-2146 -

Rubber disc V3640660-0100

Solenoid Valve (24VDC) V3611471-0100

Solenoid valve (100V, 60Hz) V3611471-0201

Solenoid Valve (110V, 50Hz) V3611471-0300

Solenoid Valve (110V, 60Hz) V3611471-0200

Solenoid Valve (120V, 60Hz) V3611471-0400

Solenoid valve (120V, 60Hz-

Piston type pulse valve OPTIPOW105

Piston type pulse valve V1585320

Piston type pulse valve V3630501

OPTIPOW 105 (24VDC) V1617803-0100

OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) V1617803-0200

OPTIPOW 105 (110V, 50Hz) V1617803-0300

OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400

OPTIPOW 105 (220 V, 50 Hz) V1617803-0500

OPTIPOW 105 (CERTIFIED UR 120V 60HZ) V1617803-0600

OPTIPOW 105 (without solenoid, rotates 90°C) V1617803-0800

Clutch kit V3592382-0000

Membrane V4549902-0100

O-ring (fluororubber 64.5 x 3) 8003-5573

O-ring (Nitril 70SH 64.5 x 3) 2136-1422

O-ring (114.5 x 3) 2136-1435

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3630527-0100

Round Washer (SS3576-10-200HV FE/ZN45 Mounting Parts) 4903-2173 -

Rubber disc V3630530-0100

Rubber disc V3640661-0100

Screw (ISO4762-M10x30-8.8 ZN8C, mounting parts) 2034-2495 -

Solenoid Valve (24VDC) V3611471-0100

Solenoid valve (100V, 60Hz) V3611471-0201

Solenoid Valve (110V, 50Hz) V3611471-0300

Solenoid Valve (110V, 60Hz) V3611471-0200

Solenoid Valve (120V, 60Hz) V3611471-0400

Solenoid Valve (120V, 60Hz - UL Listed) V3640645-0200

Solenoid valve (230V, 50Hz) V3611471-0500
