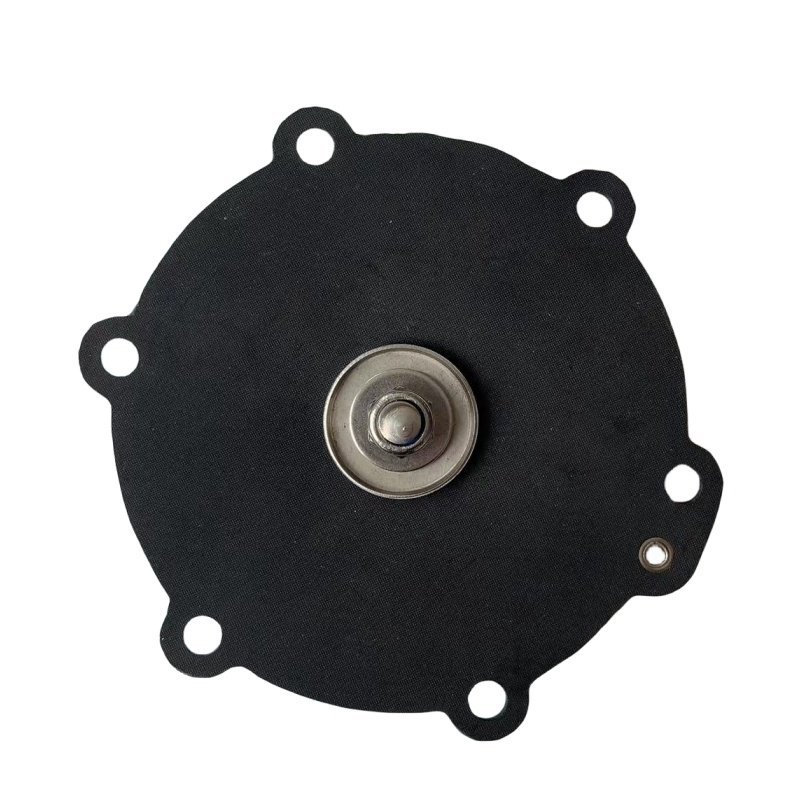

Product Name: Pulse Valve Diaphragm
Models: DB16, DB16 / G
Operating pressure range: from 0.3 to 0.8 MPa
Membrane materials: NBR, FKM
Assembly Valve Models: VNP206, VEM206, VNP306, VEM306

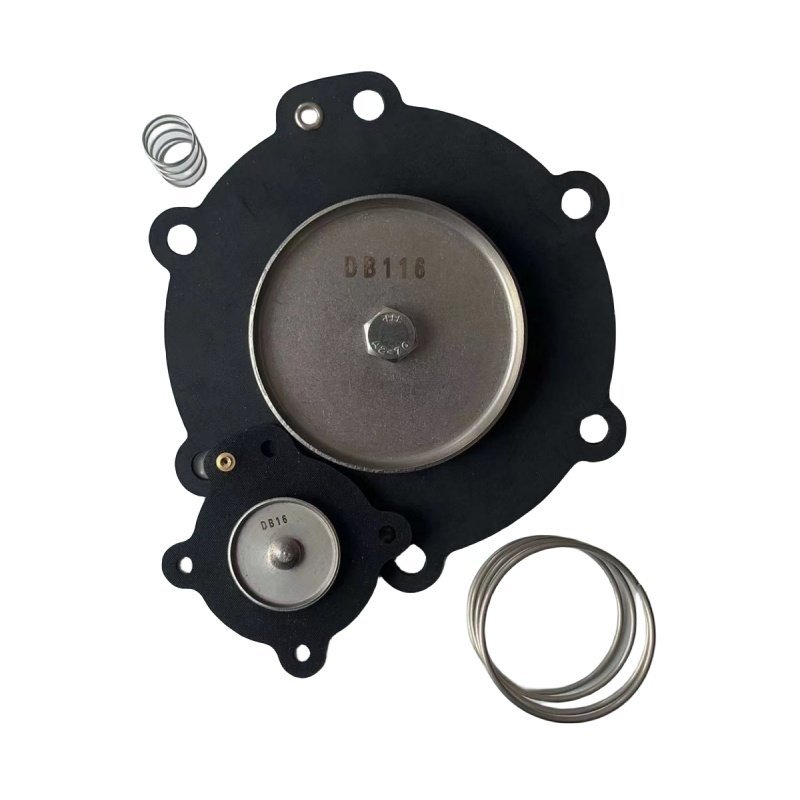

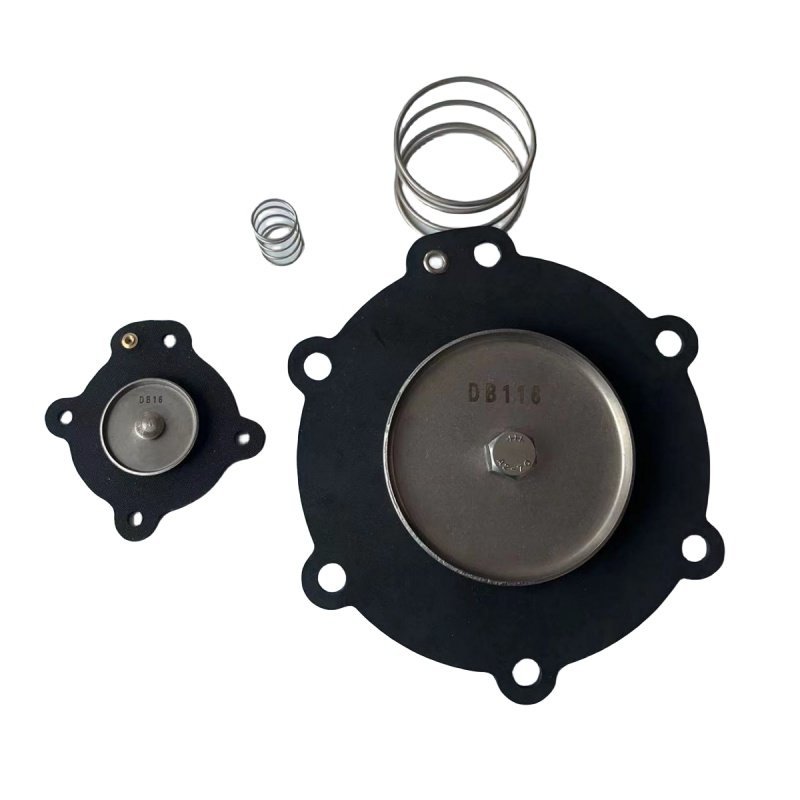

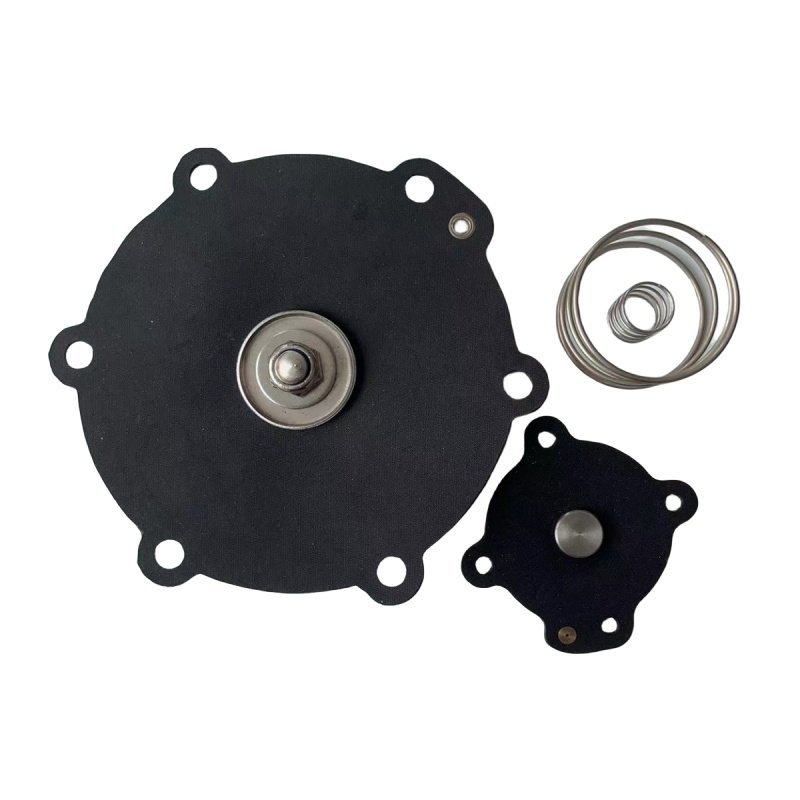

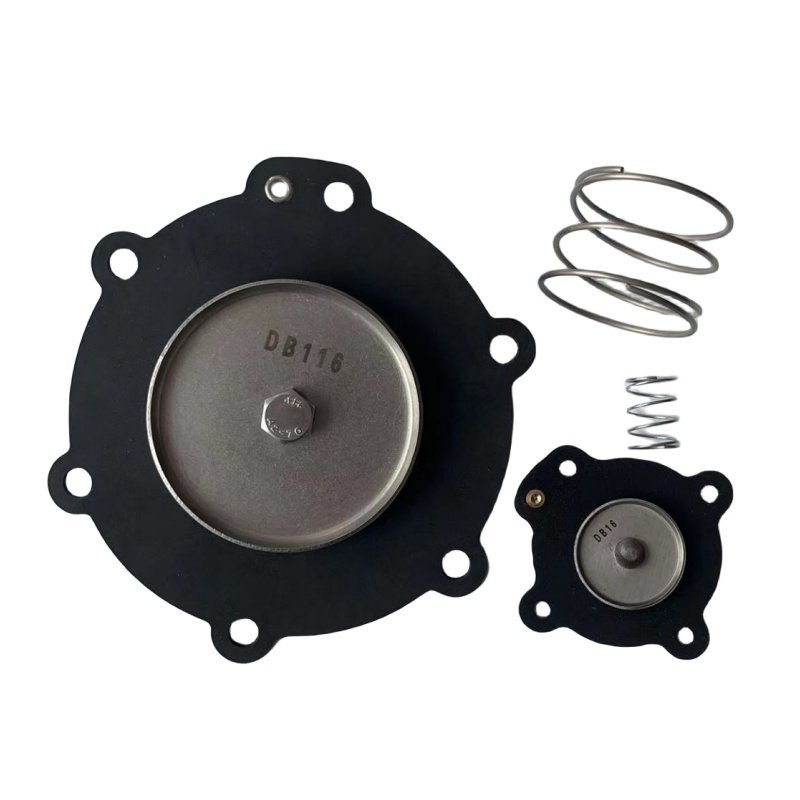

DB116 Repair kit for pulse solenoid valves DB16 / G DB16
diaphragm membrane kit db116/c pulse valve diaphragm repair kit, directly from Chinese manufacturer - Qingdao Star Machinery Technology Co., Ltd. alstomoptipow plunger diaphragm valve, industrial dust treatment, widely used in thermal power plants, glass making..., industrial dust cleaning. The service life can reach 1 million. Low temperature resistance - 40 ° C, high temperature resistance 130 ° C. Widely used in thermal power plant air dust purification, glass plant dust removal, laboratory dust removal and other industrial dust.
Product properties.
Setting:
1. Diaphragm materials: TPE, NBR, EPDM, FKM
2. Valve seat materials: nylon, rubber, PTFE
3. Membrane color: black, white, red, green, etc.
Aperture size: we can make it according to your drawings

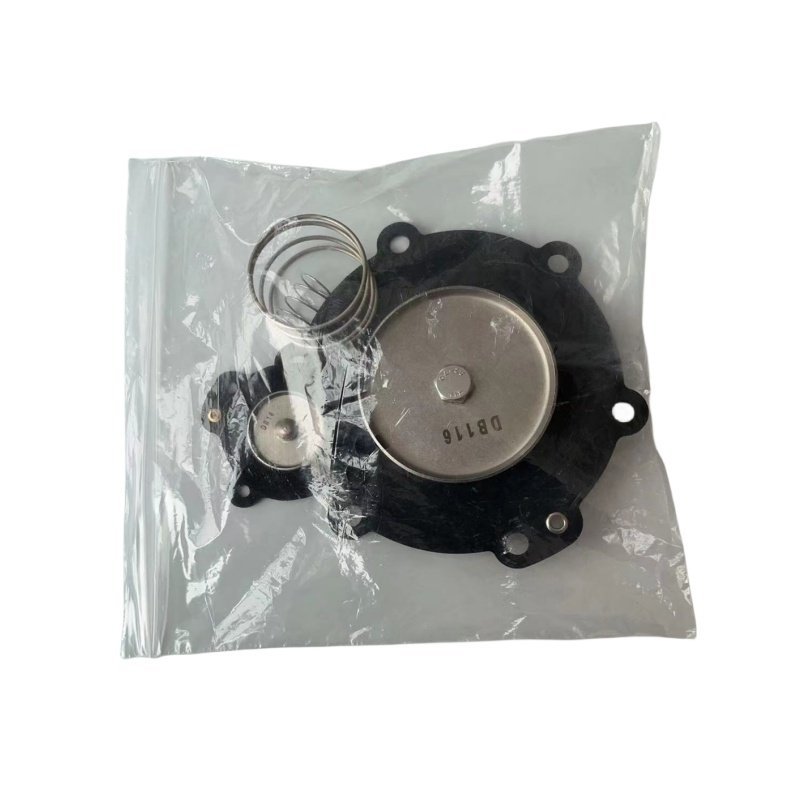

Packaging: We can provide you with customized plastic bags with low MOQ
Technical data table
Diaphragm Type | Pulse valve Type | Gate size | Diaphragm Materials |
| DB16/G | VNP206, VEM206, VNP306, VEM306 | 3/4'' | NBR, FKM |
| DB18/G | VNP208, VEM208, VNP308, VEM308, VNP408, VEM408 | 1'', 1-1/2'' | NBR, FKM |
| DB18M | VNP608, VEM608, VNP708, VEM708 | 1-1/2'' | NBR, FKM |
| DB112/G | VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 | 2 1/2" | NBR, FKM |
| DB114/C | VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 | 1-1/2'' | NBR, FKM |
| DB116/C | VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 | 2'' | NBR, FKM |
| DB120/C | VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 | 2-1/2'', 3'' | NBR, FKM |
