Product Name: Pulse Valve Diaphragm
Model: K2529
Replacement Diaphragm: Genuine Goyen 1" Diaphragm Valve RCAC25T3, RCAC25DD3, RCA25FS3
Diaphragm material: butadiene - nitrile rubber
Nominal Temperature: 180 degrees Fahrenheit

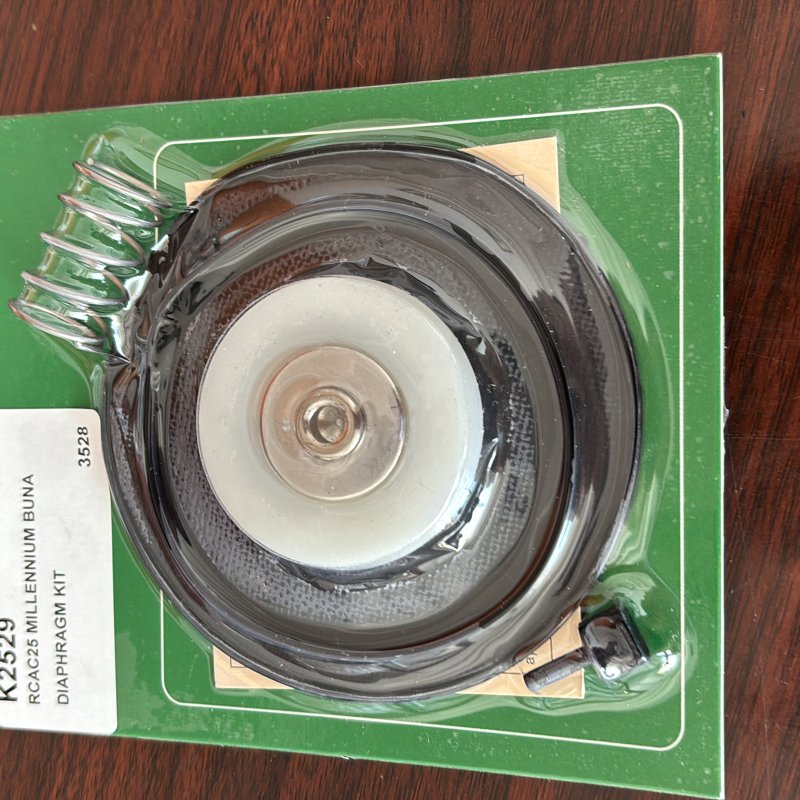

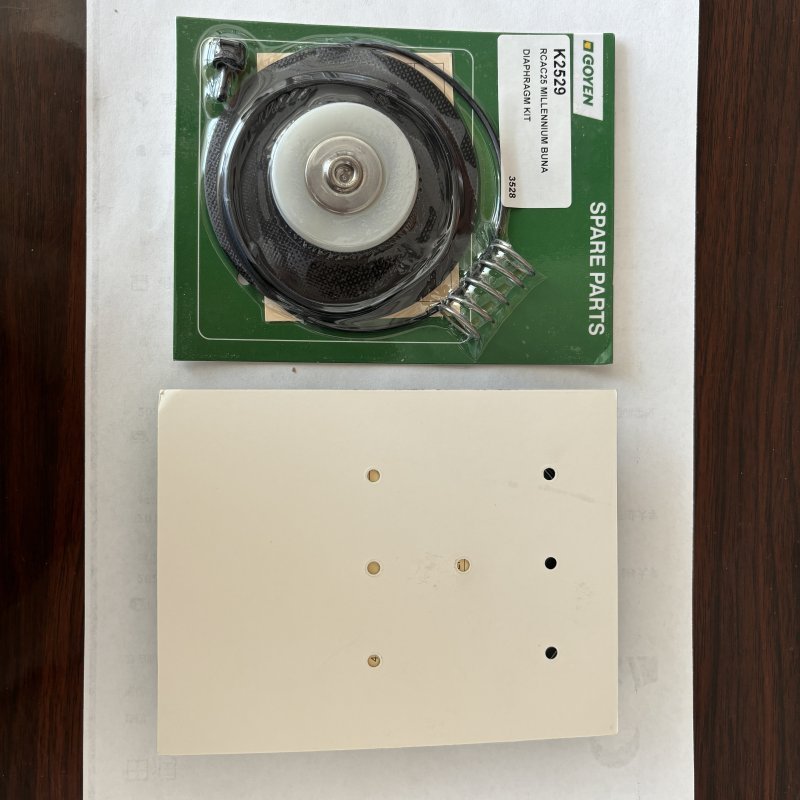

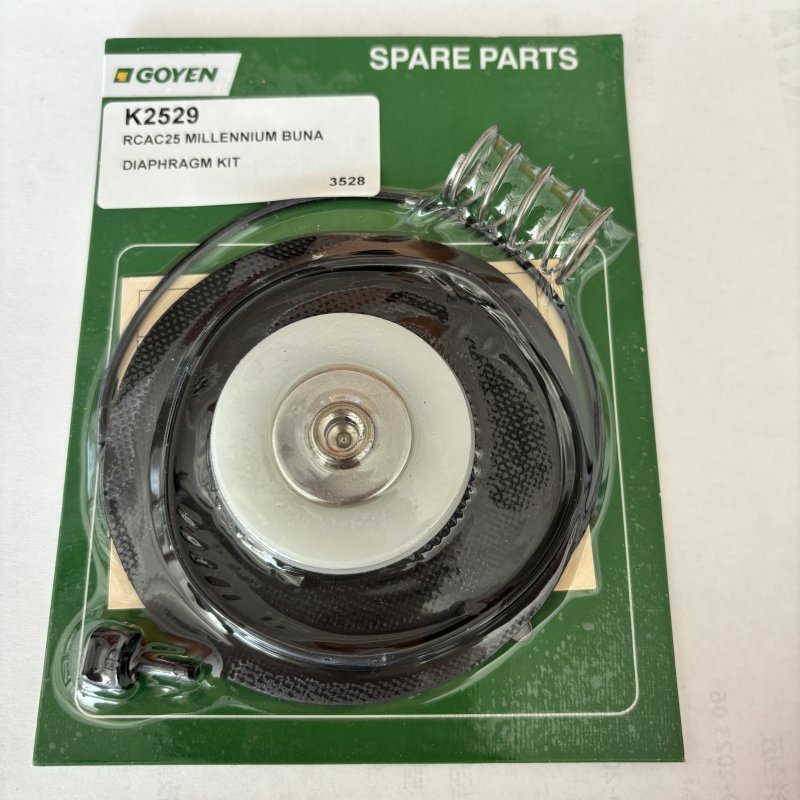

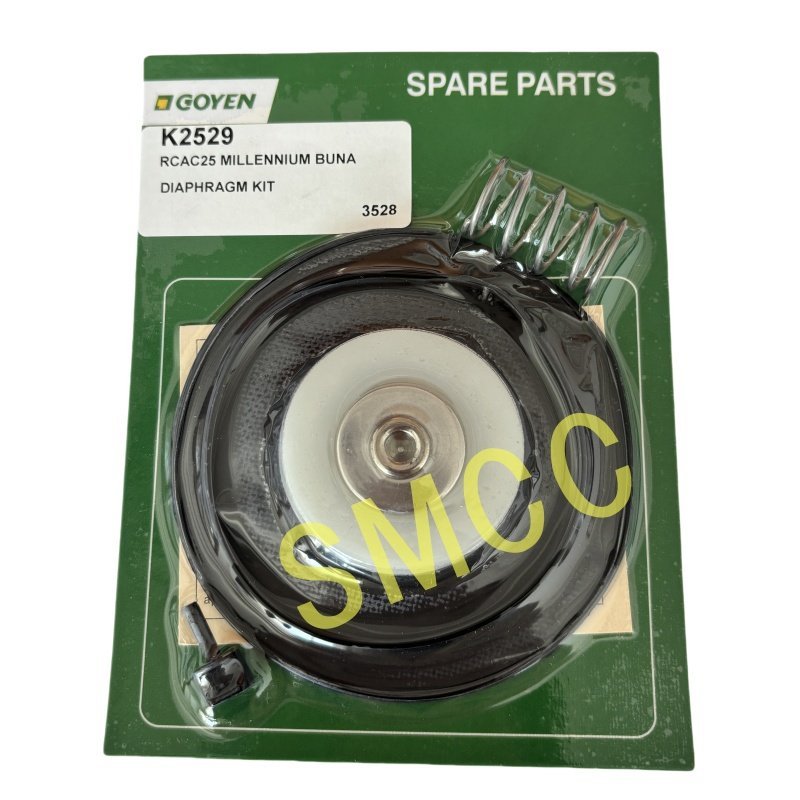

GOYEN K2529 DIAPHRAGM VALVE REPAIR KIT
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
PRODUCT ATTRIBUTES.
Options for your customization:
1. Diaphragm Material: TPE, NBR, EPDM, FKM
2. Seat Material: Nylon, Rubber, PTFE
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing
5. Packaging: We can provide you custom plastic bag with low MOQ
TECHNICAL DATE SHEET
Diaphragm Type | Pulse valve Type | Gate size | Diaphragm Materials |
| DB16/G | VNP206, VEM206, VNP306, VEM306 | 3/4'' | NBR, FKM |
| DB18/G | VNP208, VEM208, VNP308, VEM308, VNP408, VEM408 | 1'', 1-1/2'' | NBR, FKM |
| DB18M | VNP608, VEM608, VNP708, VEM708 | 1-1/2'' | NBR, FKM |
| DB112/G | VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 | 2 1/2" | NBR, FKM |
| DB114/C | VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 | 1-1/2'' | NBR, FKM |
| D20 | DMF-Z-20,DMF-ZM-20 | 3/4'' | NBR, FKM |
| D25 | DMF-Z-25,DMF-ZM-25,DMF-Y-25, DMF-T-20 | 1'' | NBR, FKM |
