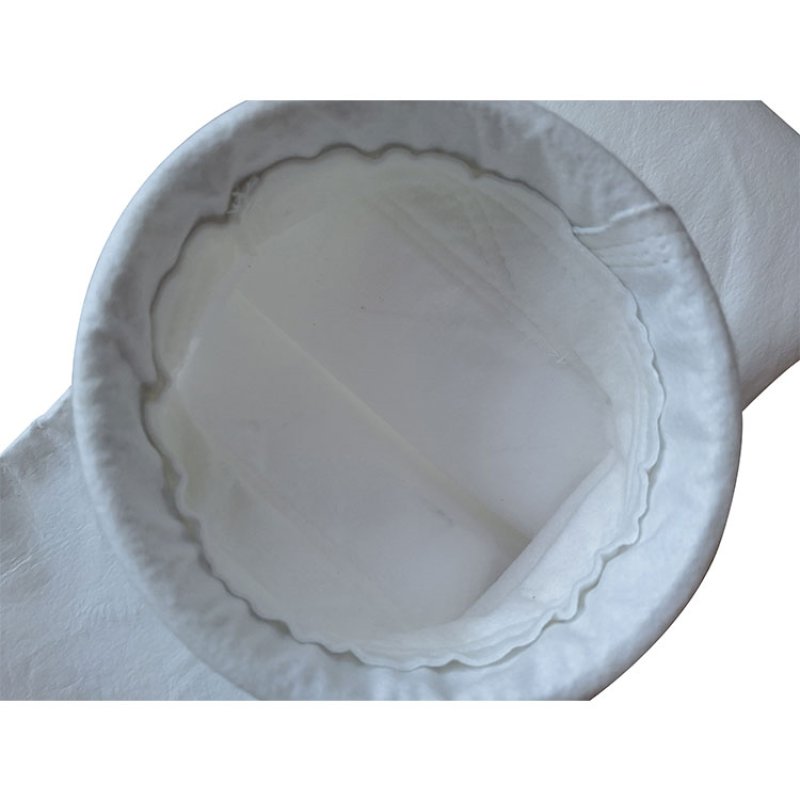

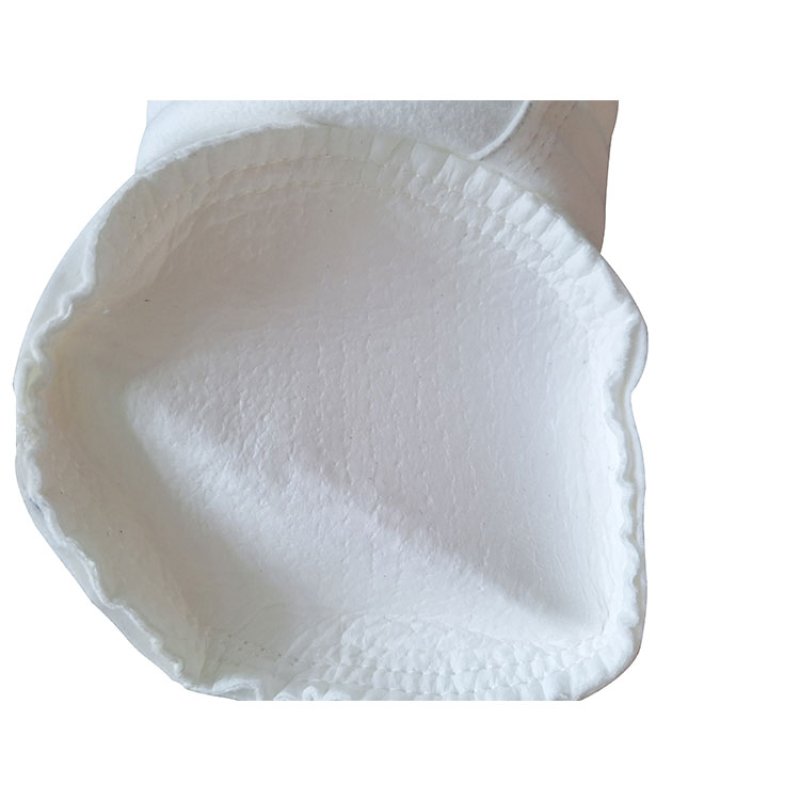

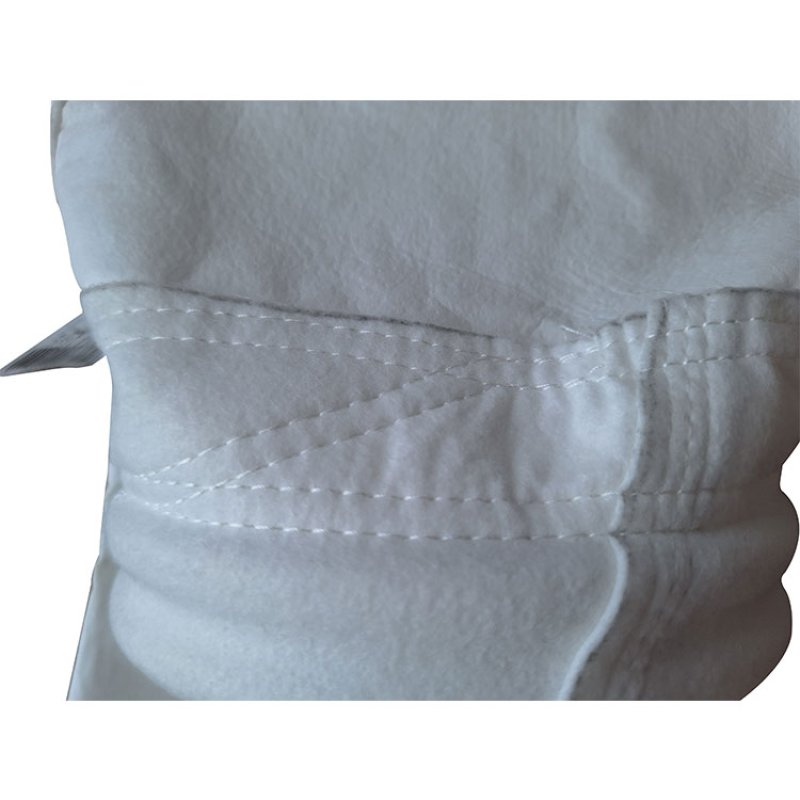

Polyester Needle Felt PTFE Filter Bags

Polyester filter bags are one of the most popular types of filter bags. They are made by laying polyester staple fibers into a fibrous mesh, and then strengthening the mesh into a fabric with a barbed needle. The fibers are repeatedly pierced to strengthen the fabric, forming a needle-punched non-woven fabric. Finally, the film is laminated to form a PTFE polyester needle-punched felt filter bag. Non-woven fabrics without warp and weft, different, the performance of warp and weft have no special difference. The air permeability of polyester filter bags is more than 50% higher than that of ordinary calendered filter material, with a smooth surface, good air permeability and low resistance.

PTFE needle-punched felt polyester filter bags are an excellent choice for high-efficiency filtration. After needle punching, they undergo heat curing and other treatments, giving them the best of both worlds: good air permeability, smooth surface, and not easy to deform or clean dust. In actual use, the polyester needle felt filter bag also shows high resistance to wear, winding and folding, and is much stronger mechanically. This means that the initial resistance of the dust collector and the working resistance are reduced, improving the filtration efficiency. The heat resistance of this filter bag is better, with the use temperature generally being 130-150 degrees Celsius, and the instantaneous temperature can reach 150 degrees Celsius. However, if you exceed this temperature, it may cause deformation or fire of the filter bag. This filter bag also lasts quite a long time, usually 4 to 6 months.

Selecting a filter bag

When it comes to PTFE polyester needle felt filter bags, the fiber density of the bag affects the entire PTFE coated bag in terms of physical properties, style, tactile feeling and so on. What is fiber density? Fiber density is mainly the thickness of the fibers.

So what is a good fiber density of PTFE coated dust filter bag? The air permeability of the filter bag depends on the fiber size. This is an important technical indicator of the filter material of the filter bag, so we select the fiber density that matches the air permeability level of the filter material as a prerequisite.

If you need to apply a coating, we can use needle felt with a weight of 600 g / m², 700 g / m² or less. The PTFE film acts as a "primary dust layer", and the material exchange occurs on the surface of the film. This means that the film immediately begins to filter effectively. Therefore, after the felt is laminated, it simply acts as a carrier for the membrane, and using more felt will not affect the air permeability.

Although PTFE has some special properties, the number of fibers used in the filter material also depends on the design requirements. If you do not need to coat the bag, we recommend using fine fibers to ensure the filter material fits tightly and achieves effective filtration.

We can analyze and adjust the fiber density of the dust bag according to different working conditions to ensure easy air flow and effective dust removal.

Advantages of filter bag

PTFE polyester needle felt filter bags are a new type of filter material made of a layer of polytetrafluoroethylene (PTFE) film on top of the ordinary filter material. The unique three-dimensional mesh structure of the film means that dust cannot pass through it, so there is no need to worry about the pores being clogged. Thus, it reduces dust emissions. This is surface filtration. The coated filter material can achieve almost zero emissions, and because the film is not sticky, the friction coefficient is small, so the powder sediment will automatically fall off. This ensures that the stability of the equipment will be stable for a long time, so it is an ideal choice of filter materials.

1. Generally, the filtration method used in industry is deep filtration, which forms a dust layer on the outside of the filter bag and is useful for filtration. The filtration process takes a long time to start filtration, about 10% of the whole process. It is quite stable and does not filter, and has a high back pressure when filtering and blowing. It also consumes a lot of energy and does not last long. It is large and occupies a large area. The PTFE polyester needle felt filter bag is designed to filter from the outside, so that dust can not enter the inside. It is very effective in blocking dust, whether large or small. There is no initial filtration period, so it is always used. It is very effective, filtering almost 100% of the time.

2. Long service life. No matter what cleaning mechanism is selected, PTFE polyester needle felt filter bags can show excellent performance, and it is a kind of filter material that can fully show the filtering function of the dust collector planning function. Therefore, the cost is low. The coated filter material is a kind of soft but does not lose the solid structure of the organization, has sufficient mechanical strength, coupled with outstanding desliming, reducing the ash removal rate, with low and stable pressure loss, can be used for a long time to extend the service life of the filter bag.

3. Low pressure, high flow continuous operation. Traditional deep filtration of filter material, once put into operation, dust will penetrate, create a layer of dust, air permeability will rapidly decline. Filtration, internal dust accumulation to form a blocking phenomenon, and then increase the resistance of dust removal equipment. PTFE polyester needle felt filter bags with fine hole and its viscosity, so that the dust penetration rate is close to zero, is used to ensure the best filtering performance, when the filter material deposited in the film on the outside of the filtered material reaches a certain thickness, it will actively fall, easy to clean, so that the filtration pressure is kept very low, the air flow is kept high, can be operated successively.

4. Easy to remove ash. The working pressure loss of any kind of filter material is directly related to the amount of dust remaining or remaining on the outside of the filter material. The PTFE polyester needle felt filter bag only needs a few seconds to clean the ash, so it has very good ash cleaning performance, each time the ash can be completely removed from the dust layer, the inside of the medium will not form clogging, the porosity and density of the mass will not change, and can often be maintained at low operating loss.
