Product description

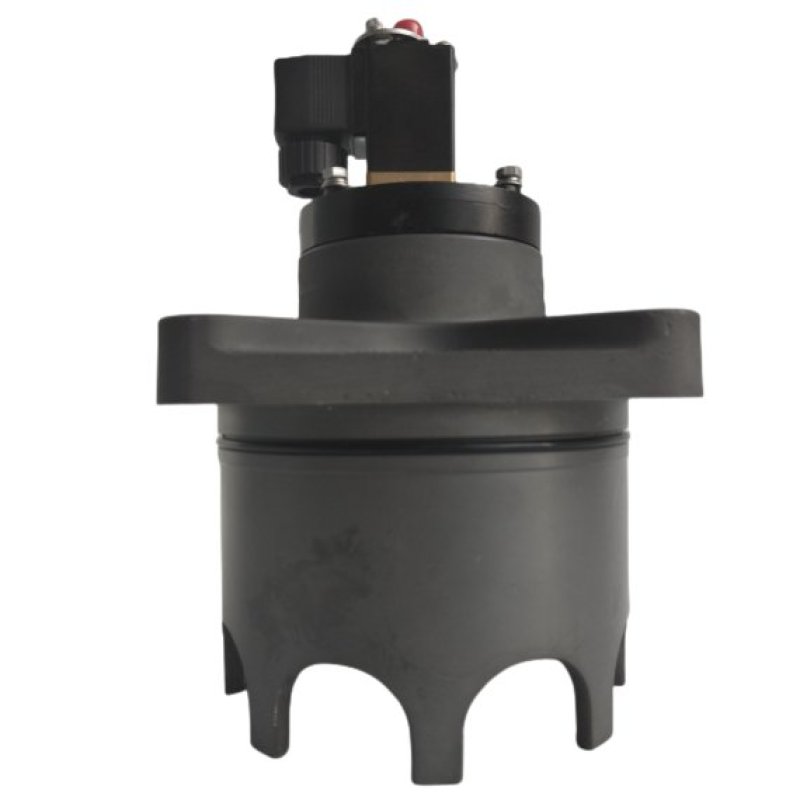

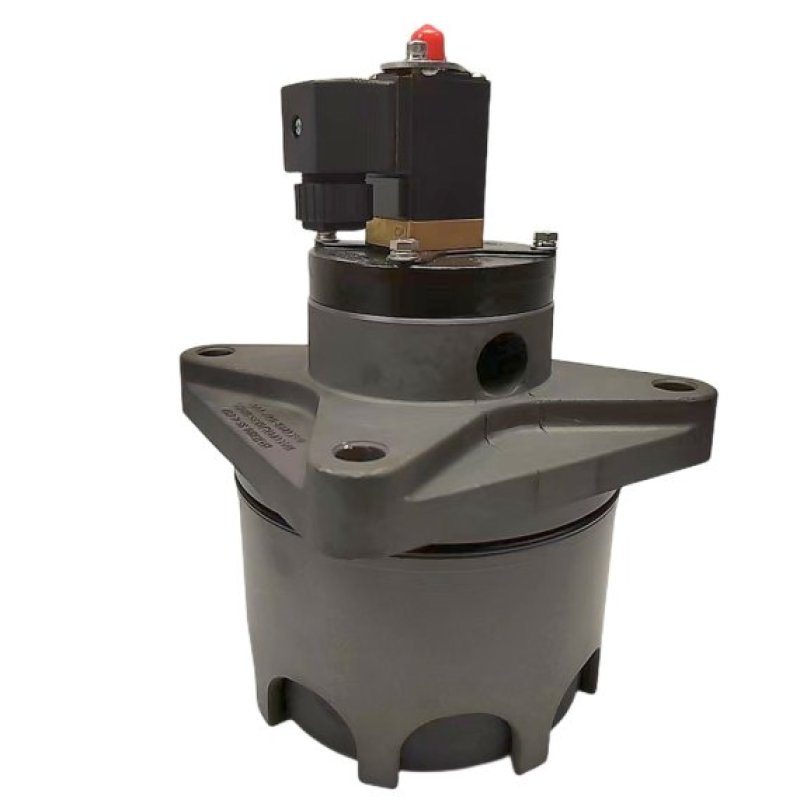

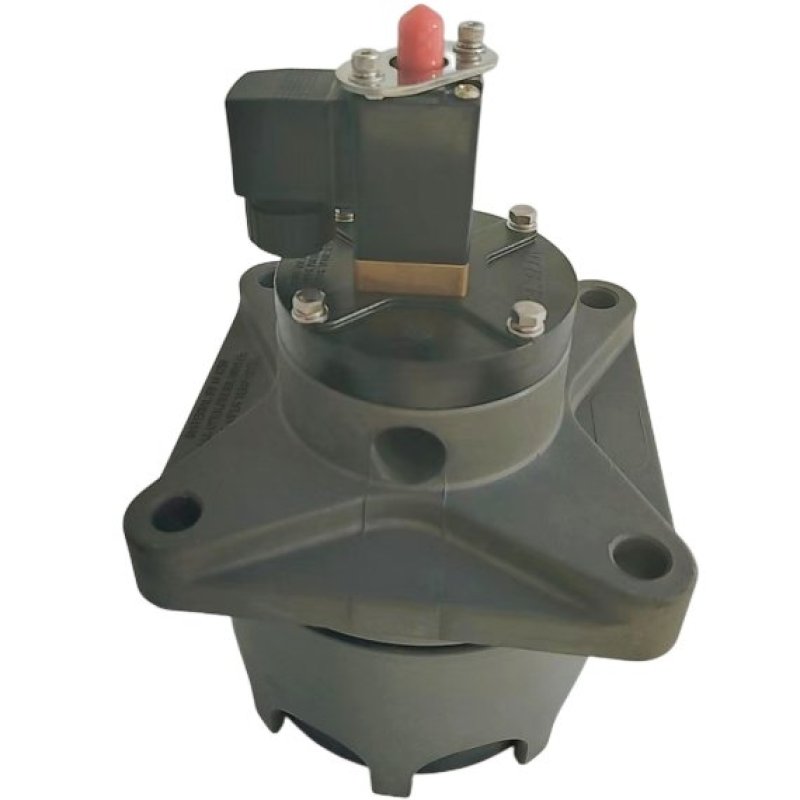

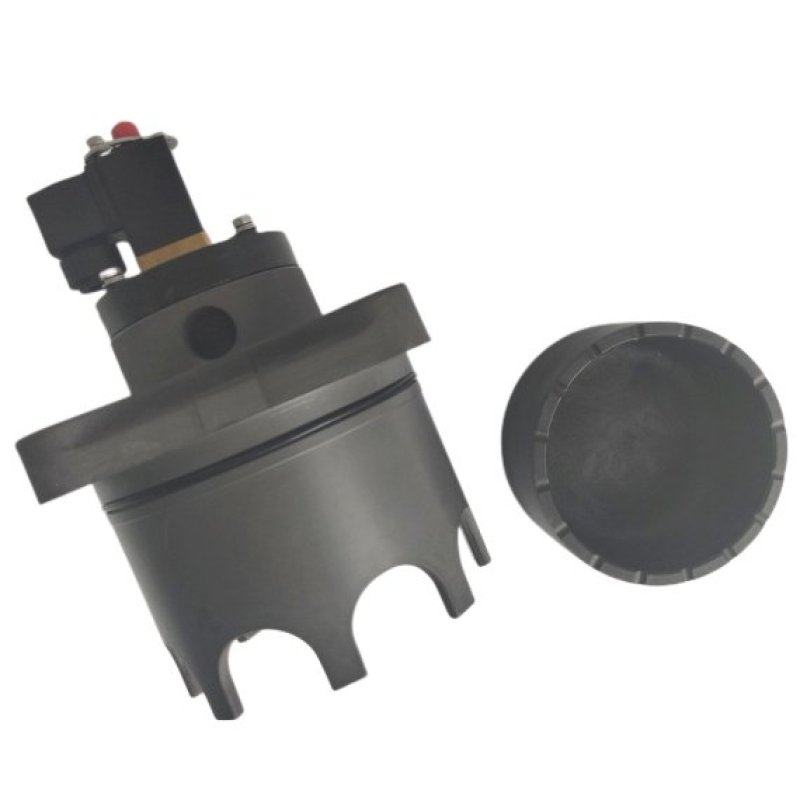

Compact pulse valve for Optipulse fabric filters of various types.

is the result of many years of experience in the field of fabric filter technology.

acts quickly with high efficiency.

It has small dimensions, the figure after the name is on the piston diameter.

Primarily intended for use in conjunction with a round pressure tank.

easy to install and maintain.

has a very robust construction, designed for normal use at air pressures up to 600 kPa (6 bar).

Normal maximum operating temperature (compact pulse valve) 50°C.

Optipow pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse valve, direct from China manufacturer - Qingdao Star Machine Technology Co., Ltd.

OPTIPOW SPECIFICATION AND SPARE PARTS LIST

Air filter OPTIPOW135

OPTIPOW 135 (24В) V1614718-0100

OPTIPOW 135 (100V, 50Hz) V1614718-0301

OPTIPOW 135 (120V, 60Hz) V1614718-0400

OPTIPOW 135 (120V, 60Hz, UL CERTIFIED) V1614718-0700

OPTIPOW 135 (without solenoid, rotates 90° C) V1614718-0800 -

Membrane V4549902-0100

O-ring (fluororubber 64.5 x 3) 8003-5573

O-ring (Nitril 70SH 64.5 x 3) 2136-1422

Sealing ring (114.5x3) 2136-1441

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3629022-0100

Round washer (SS3576-5-200HV FE/ZN25) 4903-2146 -

Rubber disc V3640660-0100

Solenoid Valve (24VDC) V3611471-0100

Solenoid valve (100V, 60Hz) V3611471-0201

Solenoid Valve (110V, 50Hz) V3611471-0300

Solenoid Valve (110V, 60Hz) V3611471-0200

Solenoid Valve (120V, 60Hz) V3611471-0400

Solenoid valve (120V, 60Hz-

Optipow pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse valve, direct from China manufacturer - Qingdao Star Machine Technology Co., Ltd.

WHY CHOOSE US

1. Reliable quality assurance system;

2. The latest computer-controlled CNC machines;

3. Individual solutions from highly qualified specialists;

4. Customization and OEM are available for specific application;

5. Extensive warehouse stock of spare parts and accessories;

6. Developed worldwide marketing network;

7. Effective after-sales service system

Optipow pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse valve, directly from China manufacturer - Qingdao Star Machine Technology Co., Ltd. The service life of our OPTIPOW air cleaning valve can reach 1,000,000 times. Resistant to low temperature -60°C and high temperature 150°C. Widely used in air purification and dust removal of thermal power plants, dust removal of glass factories, laboratory dust removal and other industrial dust removal. We have a sales and after-sales service system all over the world. Our goal is to continuously improve the quality and continuously reduce the cost to meet the needs of customers.

We have a global sales network and service system of OPTIPOW air cleaning valves. The company has more than 150 distributors and business cooperation partners in more than 30 countries, including Vietnam, Korea, Thailand, Bangladesh, Singapore, the Philippines, Malaysia, Russia, Kazakhstan, Uzbekistan, Ukraine, Iran, Saudi Arabia, Chile, Brazil, Canada, the United States, Mexico, Poland and other countries. "Honesty, Efficiency, Coordination, Innovation" is our corporate culture. "First-class quality, affordable price and timely service" is the unremitting pursuit of our company.
