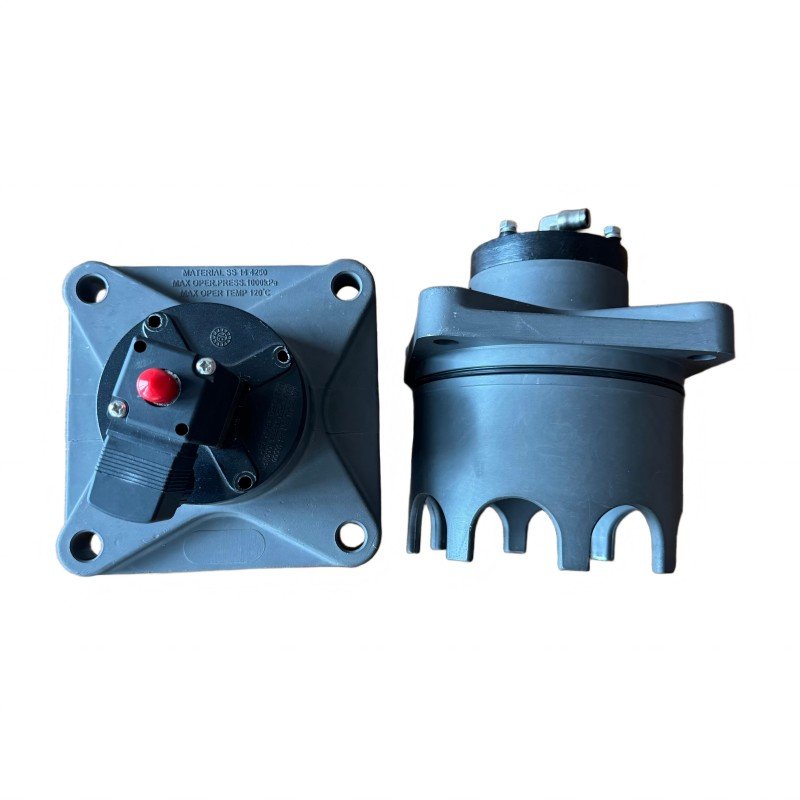

The Optipow135 Jet Pulse Solenoid Valve is designed for high-performance dust cleaning in industrial filtration systems, featuring robust structural reliability and advanced jet pulse technology. This valve is ideal for efficient dust cleaning applications, providing precise airflow regulation to optimize filtration processes.
Product: Pulse Filter, Jet Pulse Valve, Pulse Manifold
Starmashinchina Optipow valve performance: 200,000 pcs/year
Longer service life: more than twice that of the same industry
Optipow valve warranty period: one year free quality assurance service
Payment terms: TT, LC, D/P, Western Union, PayPal, personal account...
Transport package: special foam packaging and wooden box for Optipow valve
Starmashinchina Service: 7*24 hours a day expert consultation online
Starmachinechina Optipow valve serves: replacement instead of repair
Starmachinechina Optipow Valve Origin: China
Manufacturer: SMCC
Product Description
OPTIPOW 135 Pulse Jet Solenoid Valve is a high-performance piston-type dust cleaning valve, mainly used in the pulse cleaning systems of baghouse filters and dust collection equipment. Featuring a piston structure, the valve opens and closes quickly, delivers a strong jet airflow, consumes low air volume and provides excellent sealing. Compared with traditional diaphragm valves, it offers a longer service life and more stable operation.It is suitable for industrial dust removal applications in cement, metallurgy, power, chemical and other industries, and can meet the requirements of efficient dust cleaning under conditions of large air volume, high dust concentration and long filter bags. With a sturdy and durable structure and easy maintenance, it is a key component in industrial flue gas purification and dust control systems.
Technical Specifications
| Item | Specification |
| Model | OPTIPOW 135 |
| Type | Piston-type pulse jet solenoid valve |
| Nominal Diameter | 4 inch |
| Piston Diameter | 135 mm |
| Working Pressure | 0.15 – 1.2 MPa (1.5 – 12 bar) |
| Working Voltage | DC24V (AC220V / AC110V available on request) |
| Operating Temperature | -40℃ ~ +120℃ |
| Response Time | ≤ 0.15 s |
| Service Life | More than 1,000,000 cycles |
| Application | Dust cleaning for baghouse filters, long filter bags, high dust concentration conditions |
| Industries | Cement, metallurgy, power generation, chemical, waste incineration, etc. |

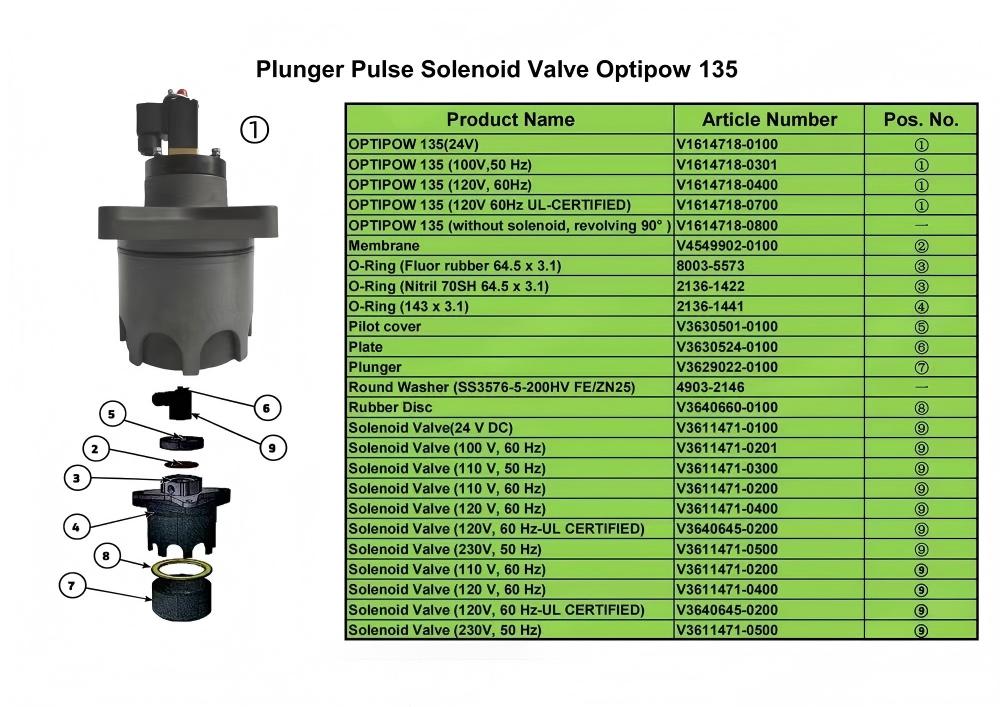

| Product name | Article number | Pos. no. |
| OPTIPOW 135(24V) | V1614718-0100 | ① |
| OPTIPOW 135 (100V,50 Hz) | V1614718-0301 | ① |
| OPTIPOW 135 (120V, 60Hz) | V1614718-0400 | ① |
| OPTIPOW 135 (120V 60Hz UL-CERTIFIED) | V1614718-0700 | ① |
| OPTIPOW 135 (without solenoid, revolving 90° ) | V1614718-0800 | 一 |
| Membrane | V4549902-0100 | ② |
| O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
| O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
| O-Ring (143 x 3.1) | 2136-1441 | ④ |
| Pilot cover | V3630501-0100 | ⑤ |
| Plate | V3630524-0100 | ⑥ |
| Plunger | V3629022-0100 | ⑦ |
| Round Washer (SS3576-5-200HV FE/ZN25) | 4903-2146 | 一 |
| Rubber Disc | V3640660-0100 | ⑧ |
| Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
| Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
| Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
| Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
| Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
| Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
| Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |

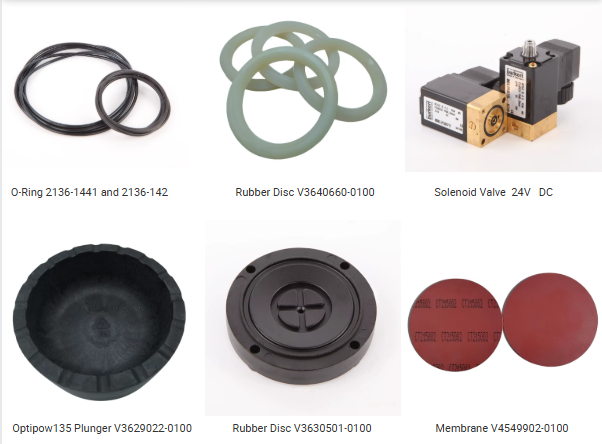

Related Products
