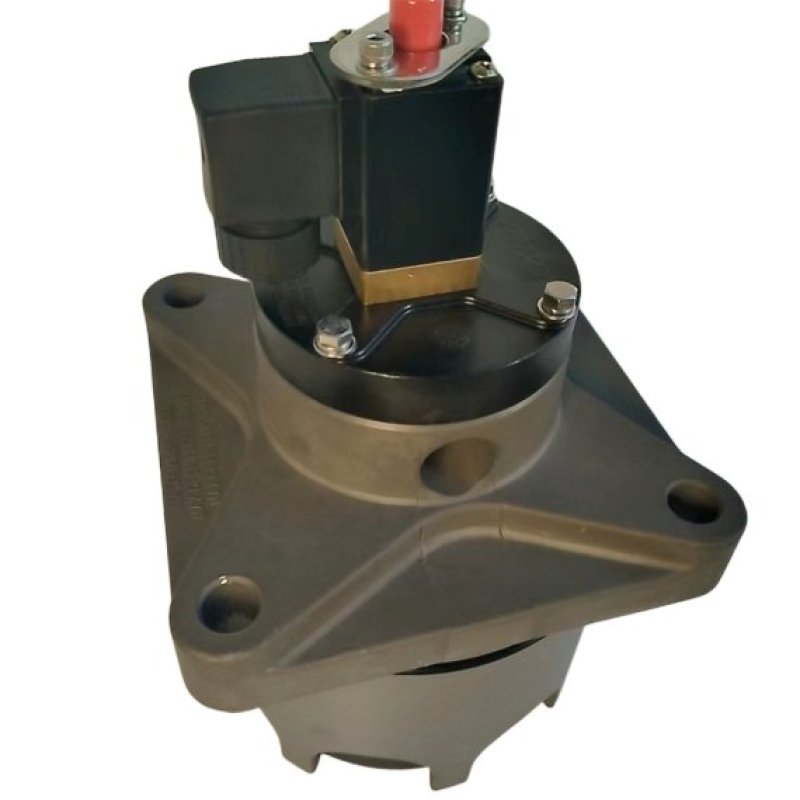

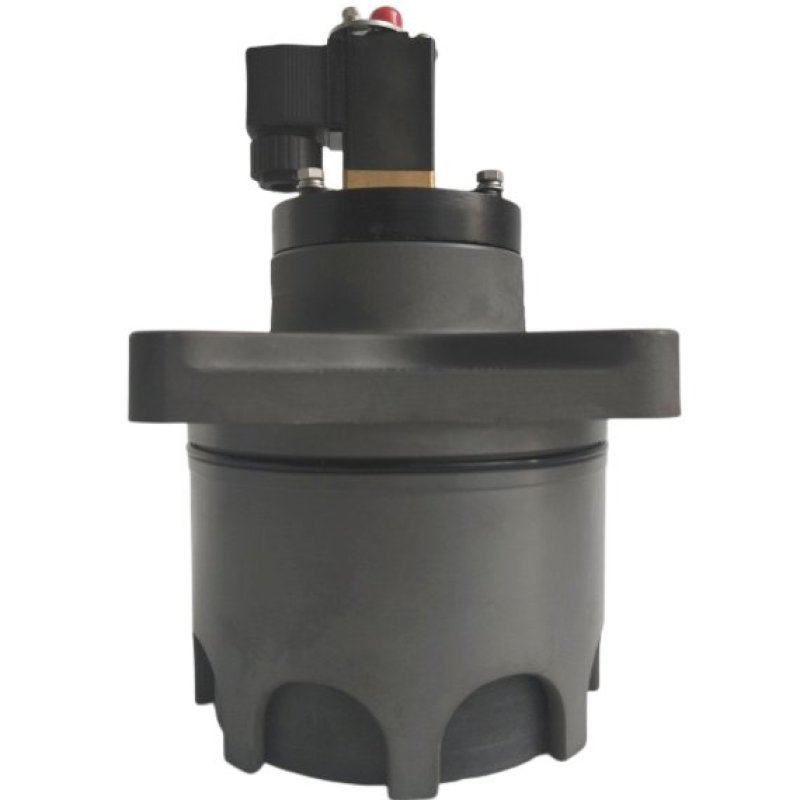

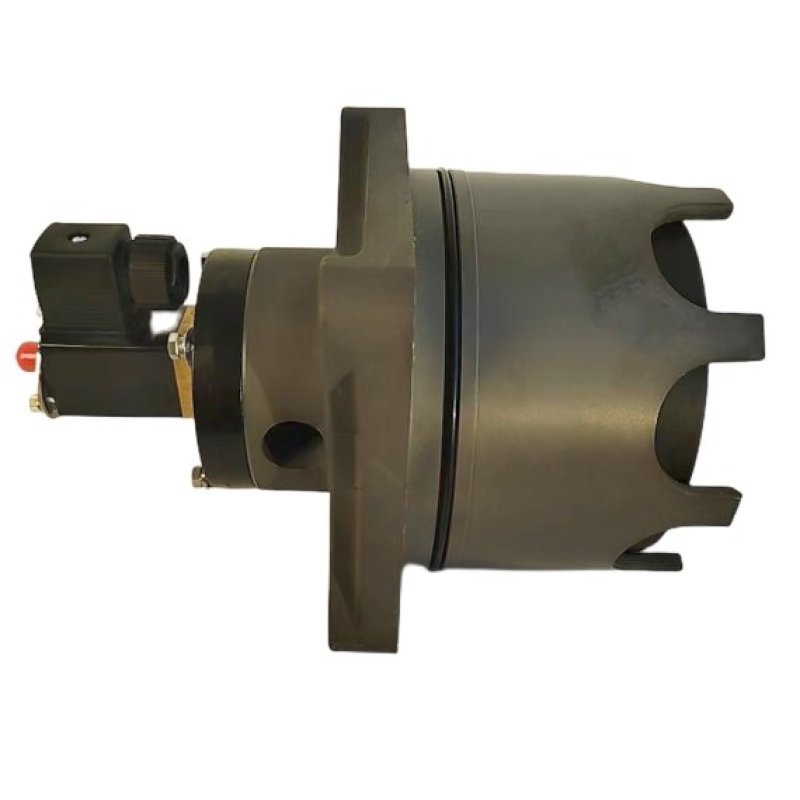

The OPTIPOW135 Air Filter Control Valve (Model V1614718-0400) is a pilot-operated diaphragm valve designed specifically for pulse jet baghouse systems. Built with durable materials, this valve ensures long service life and minimal maintenance in harsh industrial environments.
Valve design: Pilot operated diaphragm structure
Delivery time: 5 working days for delivery after payment.
Payment terms: letter of credit, t/t, d/, money gram
Warranty period: two years or 100,000 times
Warranty mode: replacement, not repair
Origin: Qingdao, China
Model No. | OPTIPOW135 | Valve design | Structure of the plunger membrane |
Power supply | DC solenoid valve | Use | Drainage, dust removal |
Standard | NOISE | Application | Industrial use |
Used for | Dust filter | Trademark | OPTIPOU |
Specification | 4" | Calculated static pressure | 15 bar (1500 kPa) |
Estimated temperature | -60-100 °C | Working pressure | < 6 bars |
Changing the working pressure | 3 bar unlimited number of rooms | Operating temperature | 50 °C |
Product description
Compact pulse valve for Optipulse fabric filters of various types.
is the result of many years of experience in the field of fabric filter technology. It acts quickly and with high efficiency.
It has small dimensions, the figure after the name is on the piston diameter.

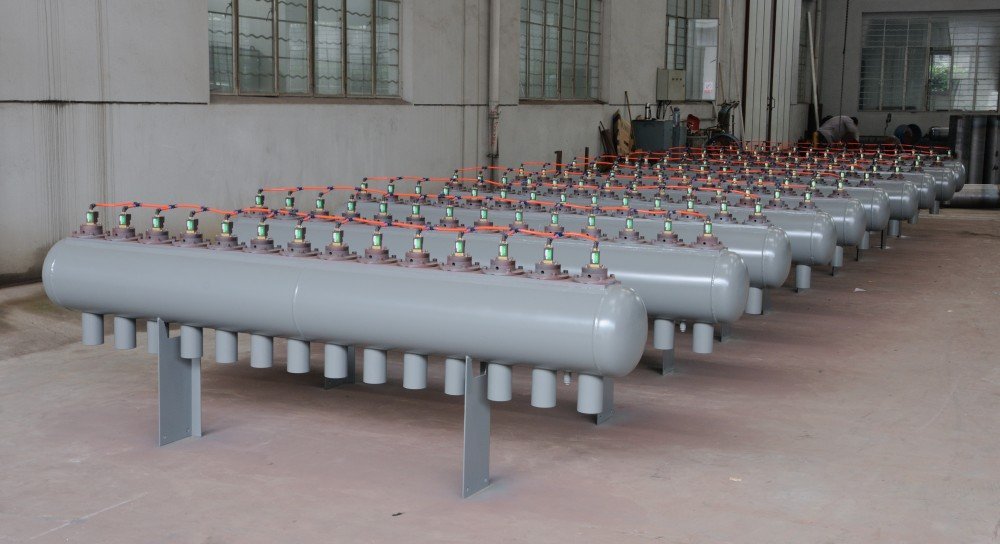

Primarily intended for use in conjunction with a round pressure tank.
easy to install and maintain.
has a very robust construction, designed for normal use at air pressures up to 600 kPa (6 bar).
Normal maximum operating temperature (compact pulse valve) 50°C.
Optipow pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse valve, direct from China manufacturer - Qingdao Star Machine Technology Co., Ltd.

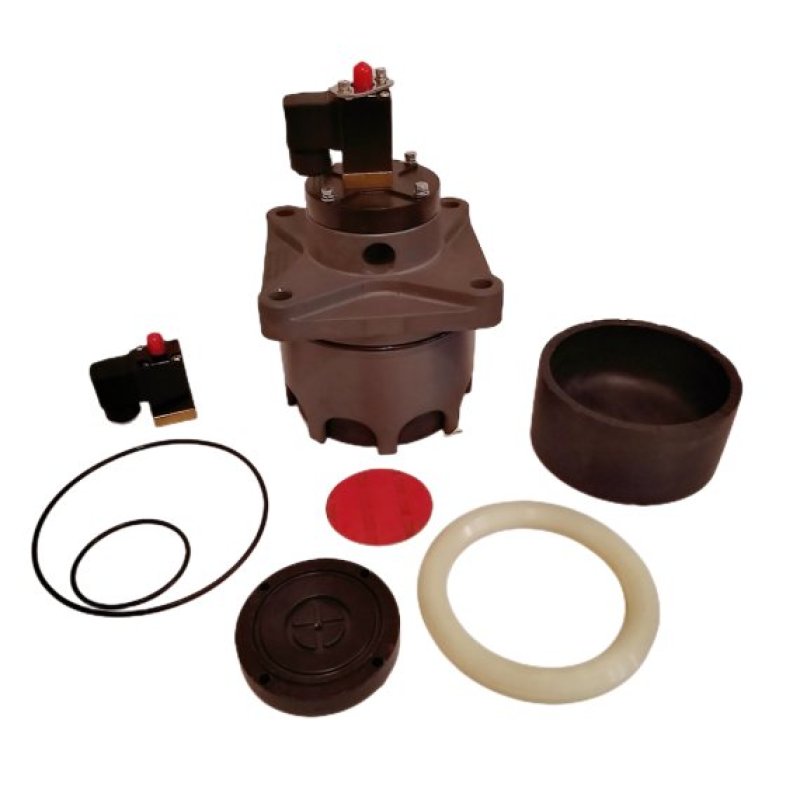

OPTIPOW SPECIFICATION AND SPARE PARTS LIST
Air filter OPTIPOW135
OPTIPOW 135 (24В) V1614718-0100
OPTIPOW 135 (100V, 50Hz) V1614718-0301
OPTIPOW 135 (120V, 60Hz) V1614718-0400
OPTIPOW 135 (120V, 60Hz, UL CERTIFIED) V1614718-0700
OPTIPOW 135 (without solenoid, rotates 90° C) V1614718-0800 -
Membrane V4549902-0100
O-ring (fluororubber 64.5 x 3) 8003-5573
O-ring (Nitril 70SH 64.5 x 3) 2136-1422
Sealing ring (114.5x3) 2136-1441
Pilot cover V3630501-0100
Plate V3630524-0100
Plunger V3629022-0100
Round washer (SS3576-5-200HV FE/ZN25) 4903-2146 -
Rubber disc V3640660-0100
Solenoid Valve (24VDC) V3611471-0100
Solenoid valve (100V, 60Hz) V3611471-0201
Solenoid Valve (110V, 50Hz) V3611471-0300
Solenoid Valve (110V, 60Hz) V3611471-0200
Solenoid Valve (120V, 60Hz) V3611471-0400
Solenoid valve (120V, 60Hz-
