Pulse Jet Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Jet Valve, Direct from China Manufacturer - Qingdao Star Machine Technology Co., Ltd.
BASIC INFORMATION ABOUT THE ALSTOM OPTIPOW AIR DUST COLLECTOR
Model No. | OPTIPOV 135 | Valve design | Pilot membrane structure |
Power supply | DC solenoid valve | Use | Drainage, dust removal |
Standard | NOISE | Application | Industrial use |
Used for | Dust filter | Trademark | OPTIPOU |
Specification | 4" | Calculated static pressure | 15 bar (1500 kPa) |
Estimated temperature | 100 °C | Working pressure | < 6 bars |
Changing the working pressure | 3 bar unlimited number of rooms | Operating temperature | 50 °C |
INTRODUCTION TO OPTIPOW AIR DUST COLLECTOR
Compact pulse valve for Optipulse fabric filters of various types.
is the result of many years of experience in the field of fabric filter technology.
acts quickly with high efficiency.
has small dimensions, the figure after the name is on the piston diameter.
is primarily intended for use in combination with a round pressure tank.
is easy to install and maintain.
has a very robust design, designed for normal use at air pressures up to 600 kPa (6 bar).
Normal maximum operating temperature (compact pulse valve) 50°C.
Product description
Pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse jet valve, direct from China manufacturer - Qingdao Star Machine Technology Co., Ltd. Professional optipow 135 solenoid valve manufacturer, the service life can reach 1,000,000 times. Resistant to low temperature -60 ° C and high temperature 150 ° C. It is widely used in the air purification and dust removal of thermal power plants, glass factory dust removal, laboratory dust removal and other industrial dust removal. We have a sales and after-sales service system all over the world. Our goal is to continuously improve the quality and continuously reduce the cost until satisfying customers' needs. Low loss of compressed air: OPTIPOW pulse valve reduces the compressed air consumption compared with the membrane type. Compact size: OPTIPOW pulse valve is much smaller than the diaphragm valve shape, pulse valve shape, which means that the distance between bags is not limited by the valve size, only the process parameters (Babbe gas, no filter, fly ash type and concentration) determine the bag size, two OPTIPOW pulse valves short distance can be passed up to 160mm.
The OPTIPOW pulse valve has two characteristics: 105, the number indicates the piston diameter.

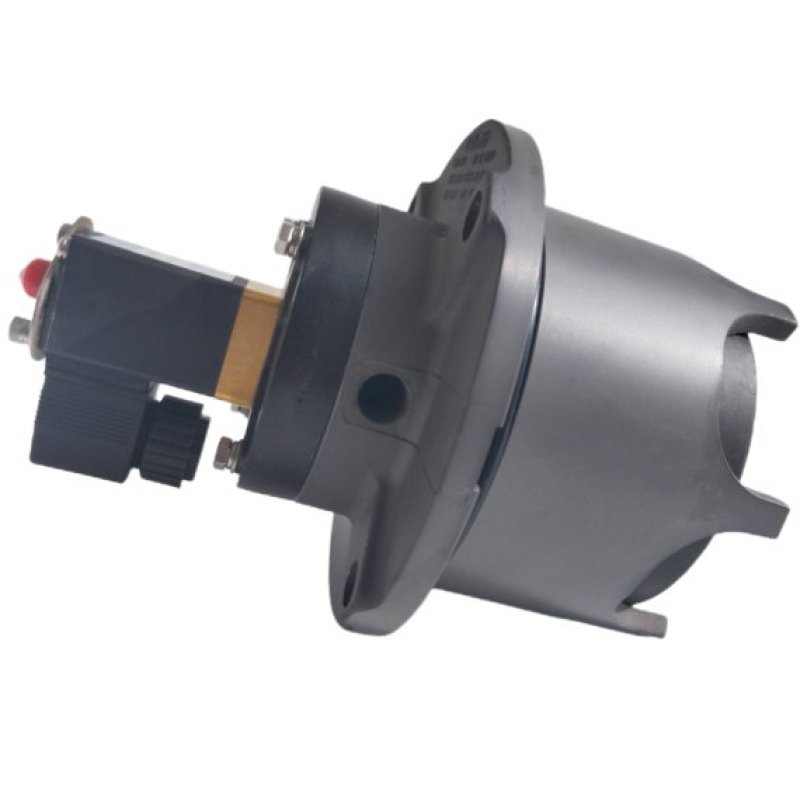

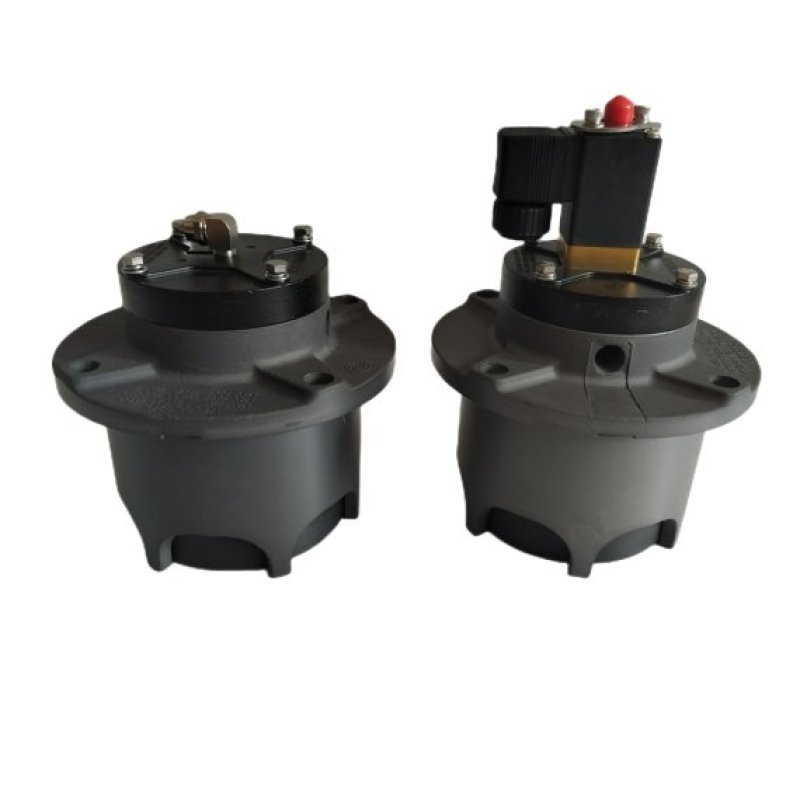

piston type pulse valve model OPTIPOW
piston pulse cleaning valve
Piston type pulse valve V1585320
Piston type pulse valve V3630501
OPTIPOW 105 (24VDC) V1617803-0100
OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) V1617803-0200 [1]
OPTIPOW 105 (110V, 50Hz) V1617803-0300 [1]
OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400 [1]
OPTIPOW 105 (220 V, 50 Hz) V1617803-0500 [1]
OPTIPOW 105 (UR CERTIFIED 120V 60HZ) V1617803-0600 [1]
OPTIPOW 105 (without solenoid, rotates 90°C) V1617803-0800 -

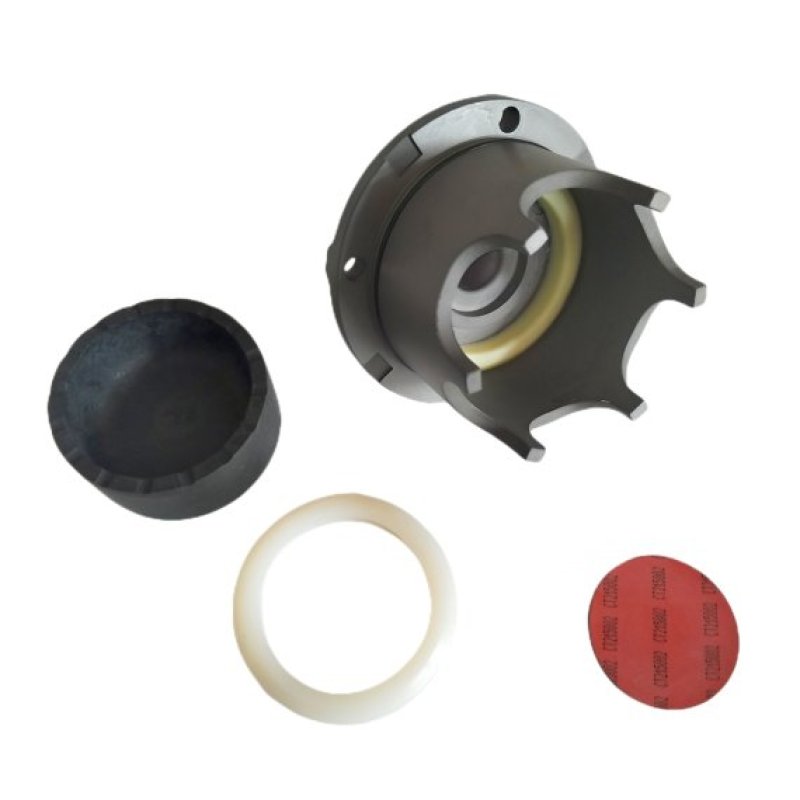

Clutch kit V3592382-0000 -
Membrane V4549902-0100 (2)
O-ring (Fluororubber 64.5 x 3) 8003-5573 (3)
O-ring (Nitril 70SH 64.5 x 3) 2136-1422 (3)
O-ring (114.5 x 3) 2136-1435 (4)
Pilot cover V3630501-0100 (5)
Plate V3630524-0100 (6)
Plunger V3630527-0100 (7)
Round Washer (SS3576-10-200HV FE/ZN45 Mounting Parts) 4903-2173 -
Rubber disc V3630530-0100 (8)
Rubber disc V3640661-0100 (8)
Screw (ISO4762-M10x30-8.8 ZN8C, mounting parts) 2034-2495 -
Solenoid Valve (24VDC) V3611471-0100 (9)
Solenoid valve (100V, 60Hz) V3611471-0201 (9)
Solenoid Valve (110V, 50Hz) V3611471-0300 (9)
Solenoid Valve (110V, 60Hz) V3611471-0200 (9)
Solenoid Valve (120V, 60Hz) V3611471-0400 (9)
Solenoid Valve (120V, 60Hz - UL Listed) V3640645-0200 (9)
Solenoid valve (230V, 50Hz) V3611471-0500 (9)
Solenoid Valve (120V 60Hz-UL Certificate ALSTOM New Compact Piston Pulse Valve ALSTOM New Compact Piston Pulse Valve ALSTOM OPTIPOW is mainly used for bag cleaning and round drum installation.
Low compressed air loss: The OPTIPOW pulse valve reduces compressed air consumption compared to the diaphragm type
