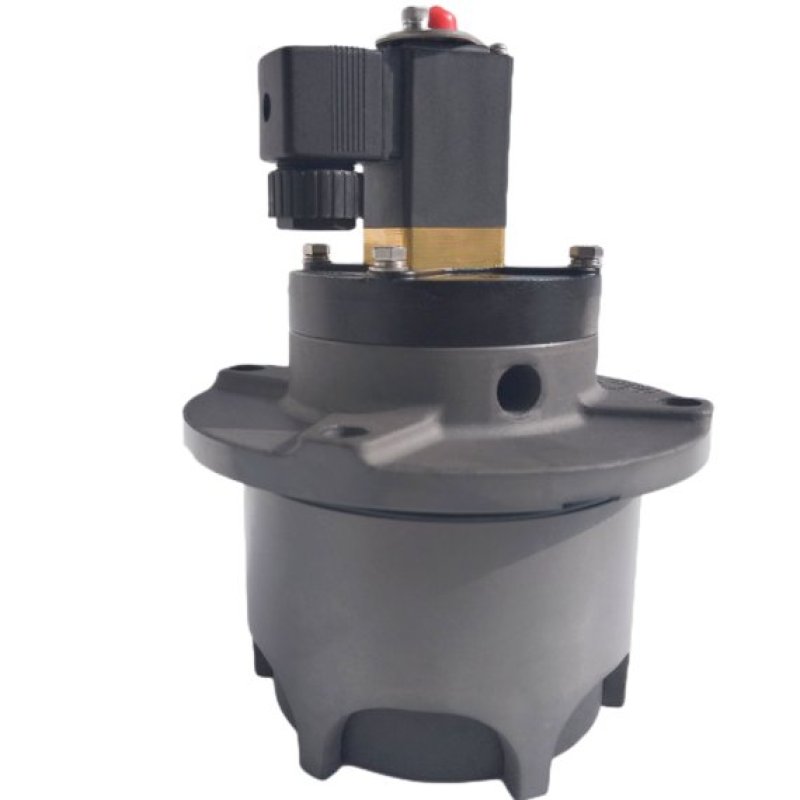

The OPTIPOW105 Solenoid Valve is a 3-inch pulse jet valve designed for industrial dust removal applications. Operating at 24VDC, it features a pilot-operated diaphragm structure that ensures rapid and efficient pulse cleaning.
Valve design: Pilot operated diaphragm structure
Delivery time: 5 working days for delivery after payment.
Payment terms: letter of credit, t/t, d/, money gram
Warranty period: two years or 100,000 times
Warranty mode: replacement, not repair
Origin: Qingdao, China
Model No. | OPTIPOV 105 | Valve design | Pilot membrane structure |
Power supply | DC solenoid valve | Use | Drainage, dust removal |
Standard | NOISE | Application | Industrial use |
Usage | Dust filter | Trademark | OPTIPOU |
Specification | 3" | Calculated static pressure | 15 bar (1500 kPa) |
Estimated temperature | 100 °C | Working pressure | < 6 bars |
Changing the working pressure | 3 bar unlimited number of rooms | Operating temperature | 50 °C |
Product description
Pulse Jet Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Jet Valve, Direct from China Manufacturer - Qingdao Star Machine Technology Co., Ltd.
Compact pulse valve for Optipulse fabric filters of various types.
is the result of many years of experience in the field of fabric filter technology.
acts quickly with high efficiency.
It has small dimensions, the figure after the name is on the piston diameter.

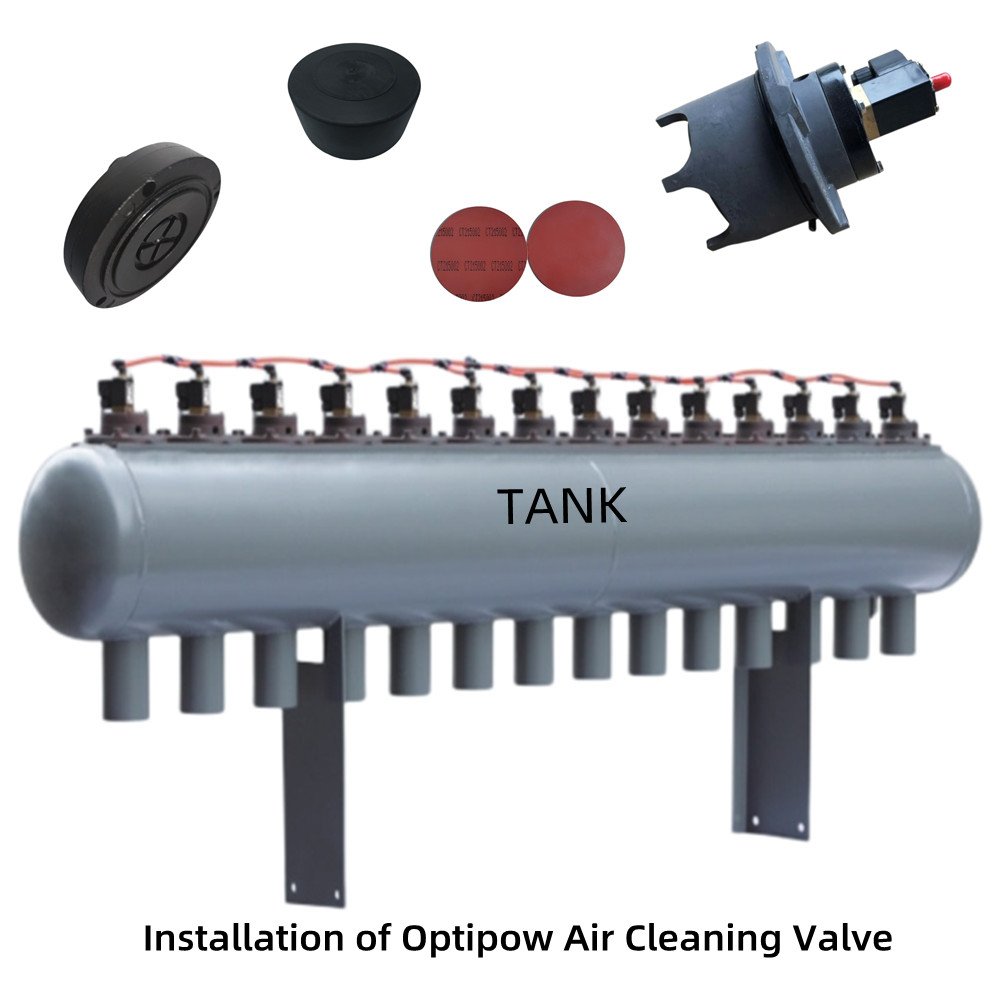

Primarily intended for use in conjunction with a round pressure tank.
easy to install and maintain.
has a very robust construction, designed for normal use at air pressures up to 600 kPa (6 bar).
Normal maximum operating temperature (compact pulse valve) 50°C.

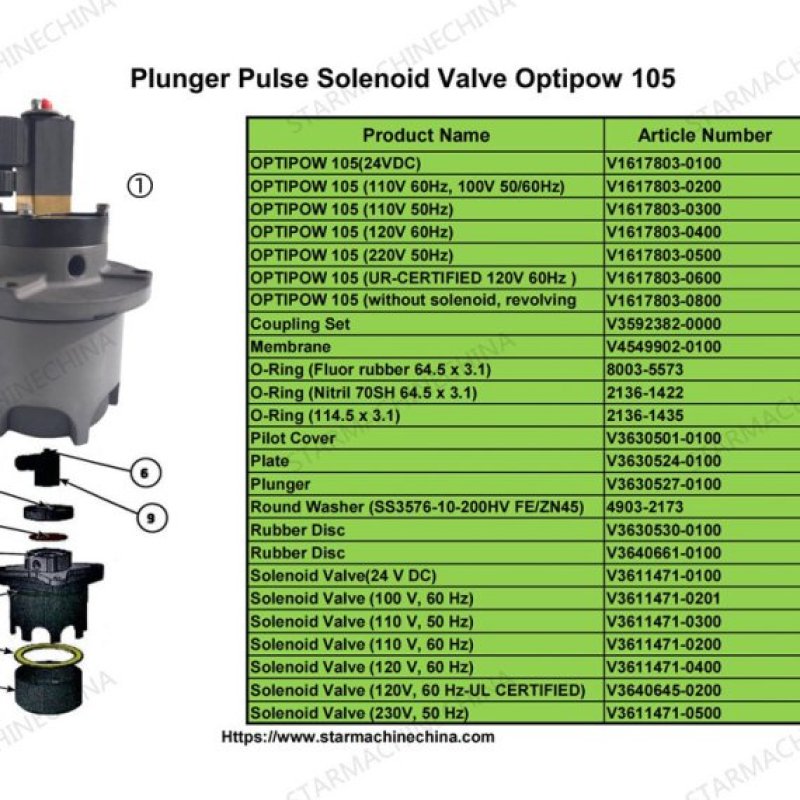

OPTIPOW SPECIFICATION AND SPARE PARTS LIST
Air filter OPTIPOW105
Piston type pulse valve V1585320
Piston type pulse valve V3630501
OPTIPOW 105 (24VDC) V1617803-0100
OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) V1617803-0200
OPTIPOW 105 (110V, 50Hz) V1617803-0300
OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400
OPTIPOW 105 (220 V, 50 Hz) V1617803-0500
OPTIPOW 105 (CERTIFIED UR 120V 60HZ) V1617803-0600
OPTIPOW 105 (without solenoid, rotates 90°C) V1617803-0800

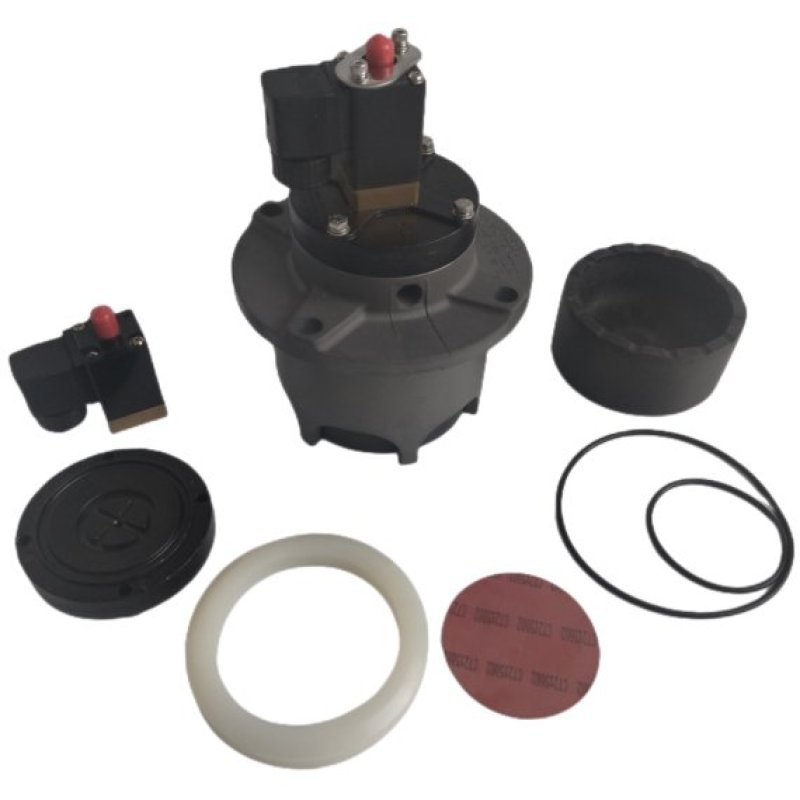

Clutch kit V3592382-0000
Membrane V4549902-0100
O-ring (fluororubber 64.5 x 3) 8003-5573
O-ring (Nitril 70SH 64.5 x 3) 2136-1422
O-ring (114.5 x 3) 2136-1435
Pilot cover V3630501-0100
Plate V3630524-0100
Plunger V3630527-0100
Round Washer (SS3576-10-200HV FE/ZN45 Mounting Parts) 4903-2173
Rubber disc V3630530-0100
Rubber disc V3640661-0100
Screw (ISO4762-M10x30-8.8 ZN8C, mounting parts) 2034-2495
Solenoid Valve (24VDC) V3611471-0100
Solenoid valve (100V, 60Hz) V3611471-0201
Solenoid Valve (110V, 50Hz) V3611471-0300
Solenoid Valve (110V, 60Hz) V3611471-0200
Solenoid Valve (120V, 60Hz) V3611471-0400
Solenoid Valve (120V, 60Hz - UL Listed) V3640645-0200
Solenoid valve (230V, 50Hz) V3611471-0500
WHY CHOOSE US
1. Reliable quality assurance system;
2. The latest computer-controlled CNC machines;
3. Individual solutions from highly qualified specialists;
4. Customization and OEM are available for specific application;
5. Extensive warehouse stock of spare parts and accessories;
6. Developed worldwide marketing network;
7. Effective after-sales service system
Pulse Jet Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Jet Valve, Direct from China Manufacturer - Qingdao Star Machine Technology Co., Ltd.
The service life of OPTIPOW air cleaning valve can reach 1,000,000 times. Resistant to low temperature of -60°C and high temperature of 150°C. Widely used in air purification and dust removal of thermal power plants, glass factory dust removal, laboratory dust removal and other industrial dust removal. We have a sales and after-sales service system all over the world. Our goal is to continuously improve the quality and continuously reduce the cost to meet the needs of customers.
