Optipow Air Jet Valve Piston Diaphragm Pulse Dust Collector Fabric Bag Filter

Compact pulse valve for Optipulse fabric filters of various types.
is the result of many years of experience in the field of fabric filter technology.
acts quickly with high efficiency.
has small dimensions, the figure after the name is on the piston diameter.
is primarily intended for use in combination with a round pressure tank.
is easy to install and maintain.
has a very robust design, designed for normal use at air pressures of up to 600 kPa (6 bar).
Normal maximum operating temperature (compact pulse valve) 50 ° C.

Product description

Professional manufacturer of optipow 135 solenoid valve, the service life can reach 1,000,000 times. Resistant to low temperature of -60°C and high temperature of 150°C. Widely used in air purification and dust removal of thermal power plants, glass factory dust removal, laboratory dust removal and other industrial dust removal. We have a sales and after-sales service system all over the world. Our goal is to continuously improve the quality and continuously reduce the cost until satisfying customers. Low loss of compressed air: OPTIPOW pulse valve reduces the compressed air consumption compared with diaphragm type. Compact size: OPTIPOW pulse valve is much smaller than the diaphragm valve shape, pulse valve shape, which means that the distance between bags is not limited by the valve size, only the process parameters (Bubbe gas, no filter, fly ash type and concentration) determine the bag size, two OPTIPOW pulse valves * * * short distance can be passed up to 160mm.

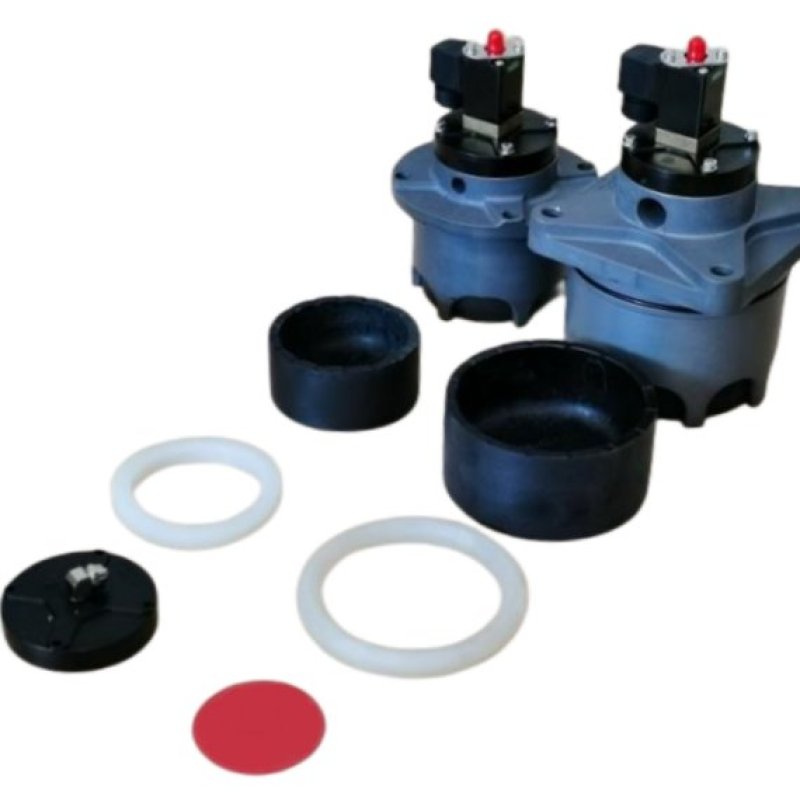

OPTIPOW pulse valve has two specifications: 105 and 135, the number indicates the piston diameter.

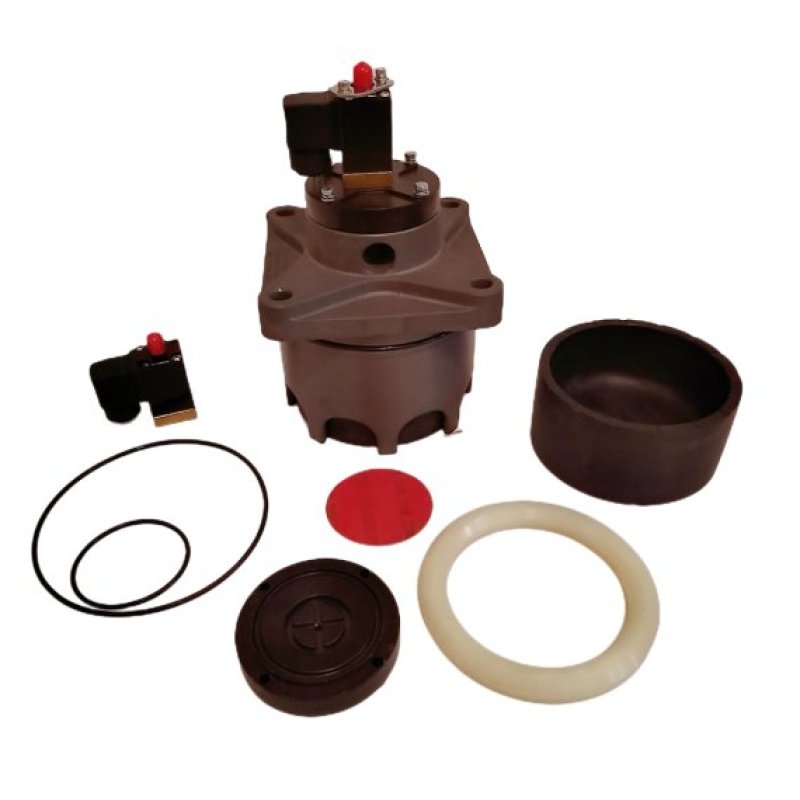

OPTIPOW piston type pulse valve
Piston diameter 105mm 135mm

OPTIPOW pulse valve has two specifications: 105 and 135, the number stands for the piston diameter.
OPTIPOW Piston Pulse Valve
Model OPTIPOW Piston Pulse Cleaning Valve

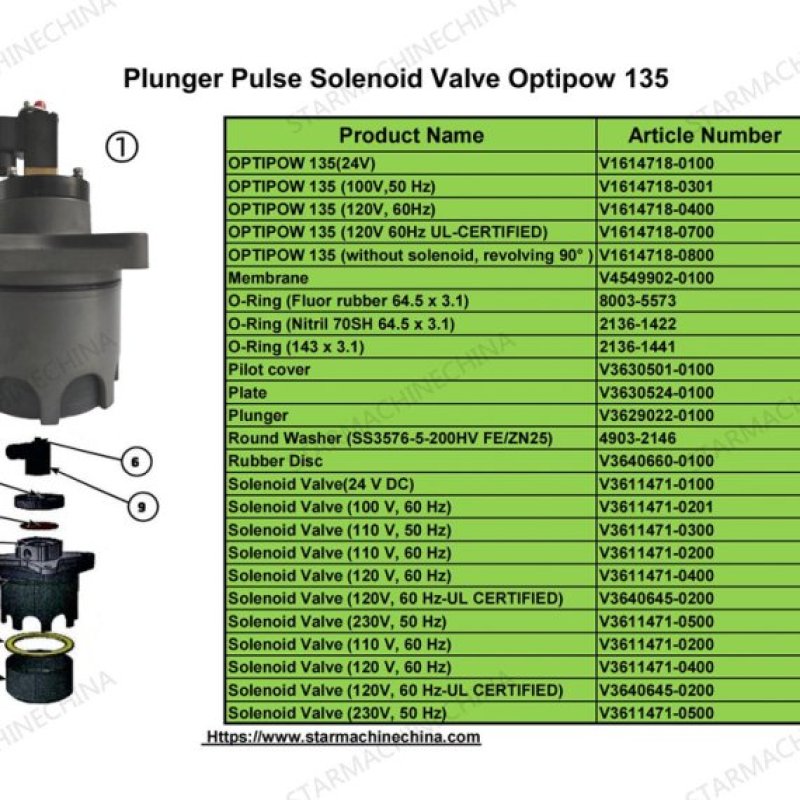

OPTIPOW 135 (24V) V1614718-0100
OPTIPOW 135 (100V, 50Hz) V1614718-0301
OPTIPOW 135 (120V, 60Hz) V1614718-0400
OPTIPOW 135 (120V, 60Hz, UL-CERTIFIED) V1614718-0700
OPTIPOW 135 (without solenoid, rotating 90° C) V1614718-

Number of filter bags: 30
Filter bag length: 10M
Piston type pulse valve V1585320
Piston type pulse valve V3630501

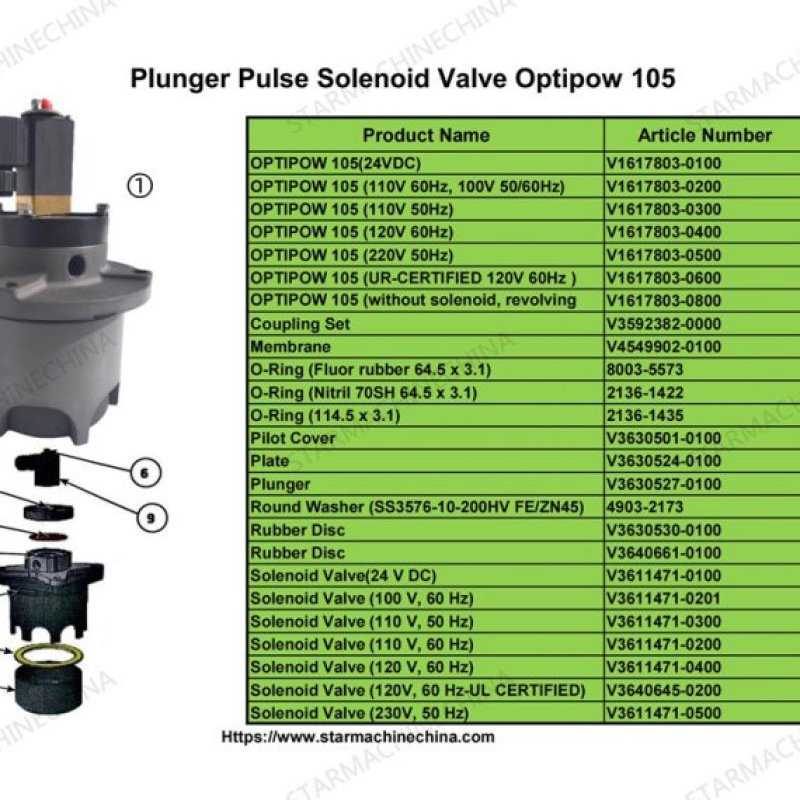

OPTIPOW 105 (24V DC) V1617803-0100
OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) V1617803-0200
OPTIPOW 105 (110V 50Hz) V1617803-0300 OPTIPOW
105 (110V 50Hz, 120V 60Hz) V1617803-0400
OPTIPOW 105 (220V 50Hz) V1617803-0500
OPTIPOW 105 (UR CERTIFIED 120V 60HZ) V1617803-0600
OPTIPOW 105 (No Solenoid, Rotating 90° C) V1617803-0800 -

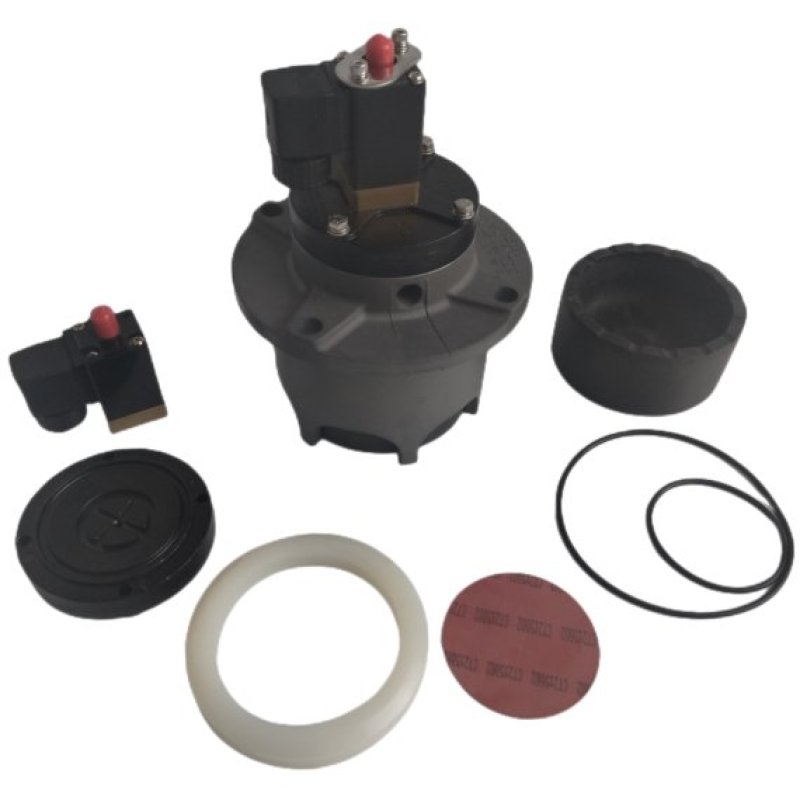

Coupling Kit V3592382-0000 -
Diaphragm V4549902-0100
O-Ring (Fluororubber 64.5 x 3) 8003-5573
O-Ring (Nitril 70SH 64.5 x 3) 2136-1422
O-Ring (114.5 x 3) 2136-1435
Pilot Cover V3630501-0100 Plate V3630524-0100

Plunger V3630527-0100
Round Washer (SS3576-10-200HV FE/ZN45 Mounting Parts) 4903-2173 -
Rubber Disc V3630530-0100
Rubber Disc V3640661-0100
Screw (ISO4762-M10x30-8.8 ZN8C Mounting Parts) 2034-2495 -
Solenoid Valve (24VDC) V3611471-0100
Solenoid Valve (100V, 60Hz) V3611471-0201
Solenoid Valve (110V, 50Hz) V3611471-0300
Solenoid Valve (110V, 60Hz) V3611471-0200
Solenoid Valve (120 V, 60Hz) V3611471-0400
Solenoid Valve (120V, 60Hz - UL Listed) V3640645-0200
Solenoid Valve (230V, 50Hz) V3611471-0500
