Specification of filter bag cages
Material: carbon steel, galvanized steel, 304 stainless steel, 316 stainless steel, 316L stainless steel.
Wire diameter: 3mm, 3.2mm, 3.5mm, 3.8mm, 4mm, 5mm.

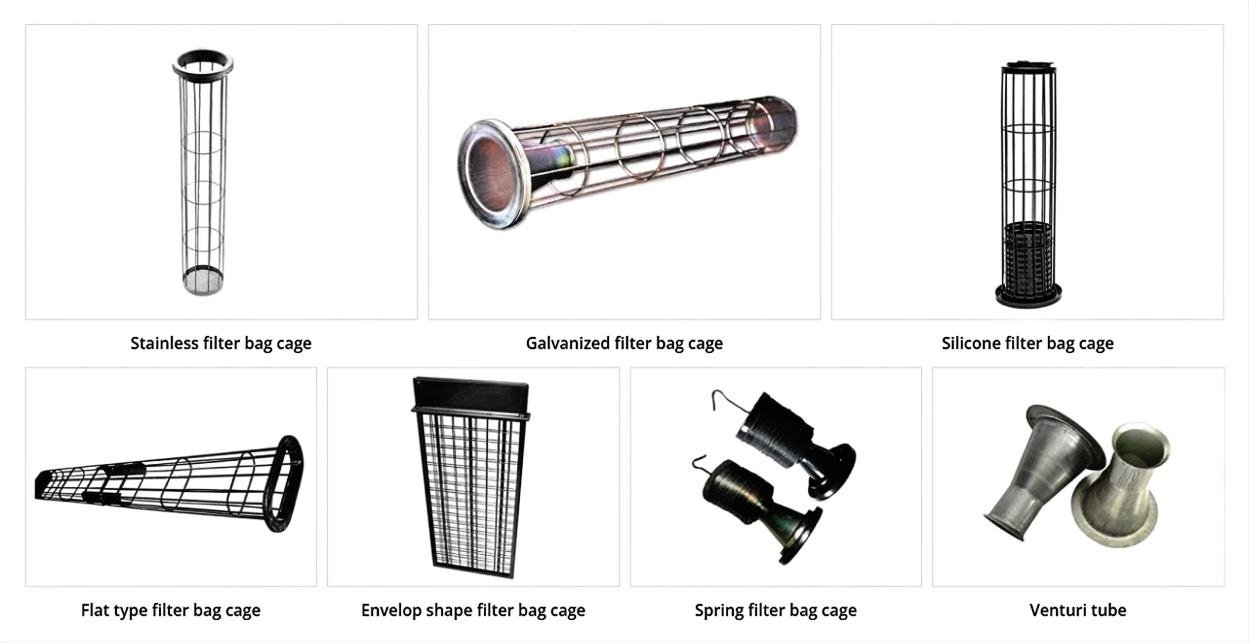

Horizontal bar type: round, envelop, flat.
Vertical wire number: 8, 10, 12, 16, 20, 24.
Ring space: 15.24cm or 20.32cm.
Cage diameter: 100mm – 200mm.
Style of connection: clamp, chuck, claw join, guide plate.
Surface treatment: galvanization, silicon coating or epoxy, PVC vinyl coating.

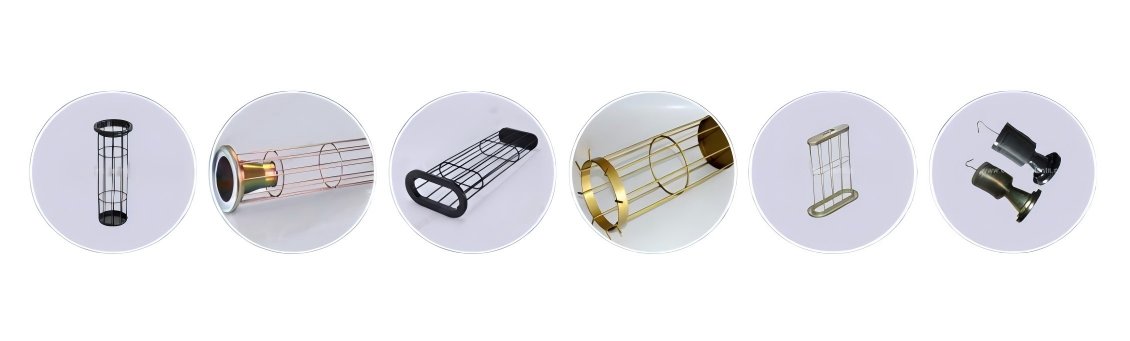

STEP1: Materials selection
stainless Steel 316
Stainless Steel 304
Pre/Electrogalvanized
SNK10
Powder Coated
STEP2: Cage joint type

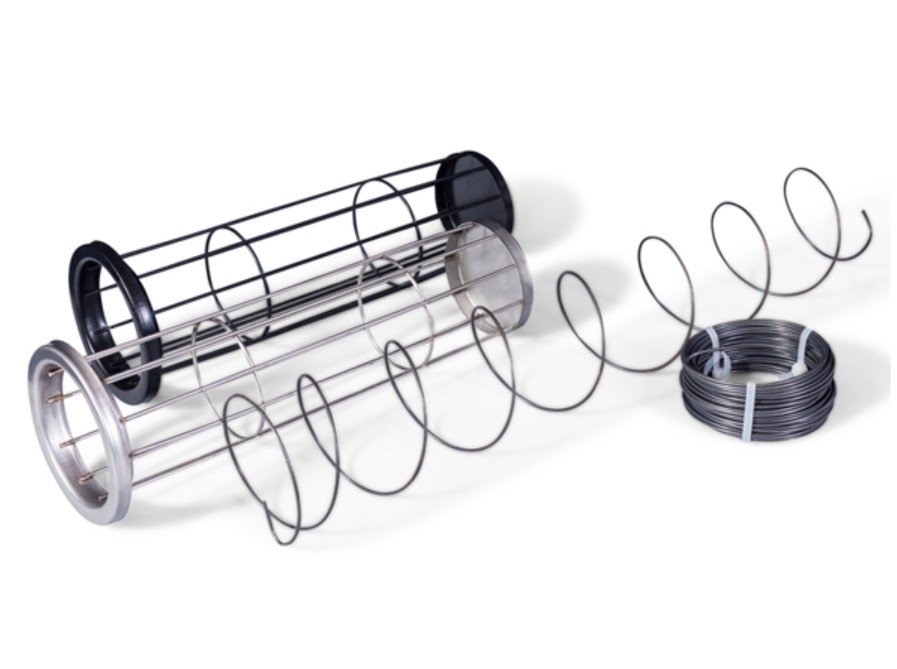

8-24 Wire filter cages
Cage Length
Knuckle/Claw Joints
Ring Joints
Custom Joints
STEP3: Venturis or collars
Standard Venturi
Eco Venturi
Custom Venturi
Collar
Split Collar
STEP4: Filter cage end caps
Welded End Caps
Snap Type End Caps
choose end caps according to your specifications.
STEP5: Package& delivery
Packaged Crates
Delivery Services
proper package to prevent damage during delivery.
| ound Style | Diameter | Bag Diameter | Length |
| 115mm | 120mm | 2000mm, 2400mm, 2800mm, 3200mm, 3600mm, 4000mm, 4400mm, 4800mm, 5200mm, 5600mm, 6000mm, 7000mm | |
| 125mm | 130mm | ||
| 147mm | 152mm | ||
| 195mm | 200mm | ||
| Flat Style | Perimeter | Bag Perimeter | Length |
| 800mm | 800mm | 2000mm, 3000mm, 4000mm, 5000mm, 6000mm | |
| 900mm | 900mm | ||
| Envelope Style | Length × Width × Thickness | Bag Length × Width × Thickness | |
| 1500mm × 750mm × 25mm | 1500mm × 750mm × 25mm | ||
