Minimum order: 1
Operating temperature: -40°C-130°C
Multi-voltage selection: DC24V, AC100V50/60Hz, AC120V60Hz, AC110V50/60Hz, AC220V50Hz
Activation life: more than 1,000,000 pulses
Switching: Alstom pulse jet valve, Optipow105 fabric bag manifold valve Service
: 7*24 hours Online expert consultation, replacement instead of repair
Warranty: 12 months
Supply capacity: 5000 pieces per day
Valve design: plunger diaphragm control solenoid valve
Transport packaging: special packaging in foam boxes
Longer service life: more than twice that of the same industry
Manufacturer: Sarmachinechina

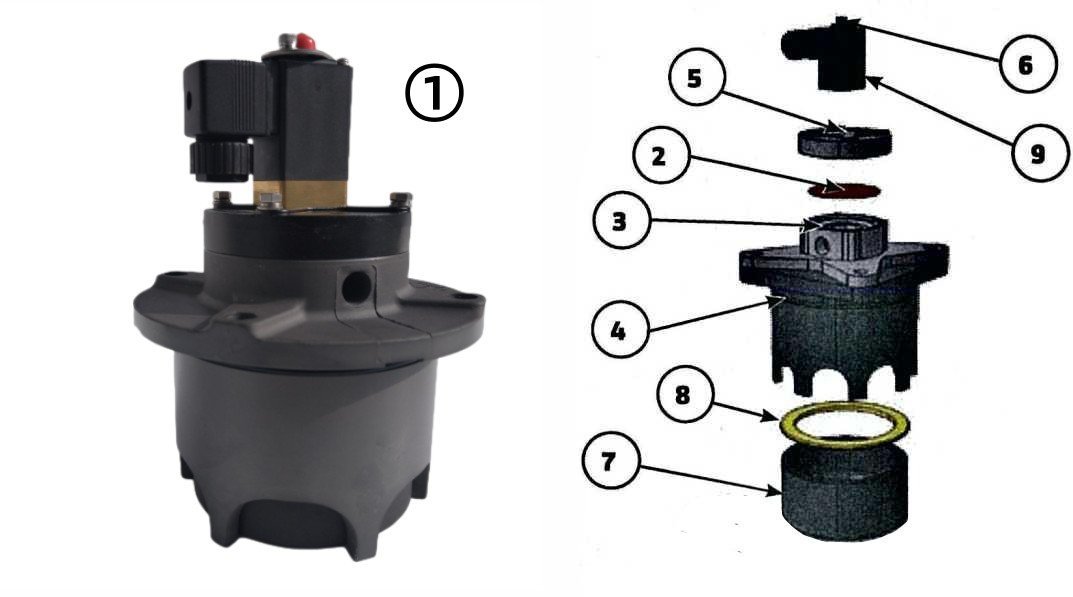

| roduct name | Article number | Pos. no. |
| OPTIPOW 105 (24VDC) | V1617803-0100 | (1) |
| OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) | V1617803-0200 | (1) |
| OPTIPOW 105 (110V, 50Hz) | V1617803-0300 | (1) |
| OPTIPOW 105 (120V, 60Hz) | V1617803-0400 | (1) |
| OPTIPOW 105 (220 V, 50 Hz) | V1617803-0500 | (1) |
| OPTIPOW 105 (UR CERTIFIED 120V 60Hz) | V1617803-0600 | (1) |
| OPTIPOW 105 (without solenoid, rotates 90°C) | V1617803-0800 | one |
| Set of couplings | V3592382-0000 | one |
| Membrane | V4549902-0100 | (2) |
| Sealing ring (fluororubber 64.5 x 3.1) | 8003-5573 | (3) |
| O-ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | (3) |
| O-ring (114.5 x 3.1) | 2136-1435 | (4) |
| Pilot cover | V3630501-0100 | (5) |
| Plate | V3630524-0100 | (6) |
| Valve | V3630527-0100 | (7) |
| Round Washer (SS3576-10-200HV FE/ZN45) | 4903-2173 | one |
| Rubber disc | V3630530-0100 | (8) |
| Rubber disc | V3640661-0100 | (8) |
| Solenoid valve (24VDC) | V3611471-0100 | (9) |
| Solenoid valve (100V, 60Hz) | V3611471-0201 | (9) |
| Solenoid valve (110V, 50Hz) | V3611471-0300 | (9) |
| Solenoid valve (110V, 60Hz) | V3611471-0200 | (9) |
| Solenoid valve (120V, 60Hz) | V3611471-0400 | (9) |
| Solenoid Valve (120V, 60Hz-UL CERTIFIED) | V3640645-0200 | (9) |
| Solenoid valve (230 V, 50 Hz) | V3611471-0500 | (9) |
Product description
Model No. | OPTIPOW105 | Optipow valve design | Pilot membrane |
Power supply | DC solenoid valve | Use | Air dust collector |
Standard | DIN, ISO | Application | Industrial use |
Used for | Industrial dust filter | Trademark | OPTIPOU |
Specification | 3" air filter | Calculated static pressure | 15 bar (1500 kPa) |
Estimated temperature | -40°С-130°С | Working pressure | < 6 bars |
Pressure change | 3 bar unlimited number of rooms | Operating temperature | 50 °C |
We provide you with tailored air pollution control solutions to reduce emissions and improve productivity and efficiency in line with changing market conditions and asset strategy. Our offering covers the entire flue gas range, from particulate control, dry and wet scrubbers to multi-pollutant treatment equipment for industrial, waste incineration and power plants.
Starmachinechina's air pollution control products meet the requirements of the world's most stringent emission legislation, the desire for low additive consumption, the need for minimal residues, as well as ease of installation and compact design. Quite often, our systems are supplied "turnkey" to ensure accountability and efficiency from a single source.
Advanced engineering tools and global R&D collaboration with a network of recognized partners and universities form the foundation of our work. Early identification of each customer's needs helps Starmachinechina make long-term contributions to clean air and the environment.
Starmachinechina pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse valve, direct from China manufacturer - Qingdao Star Machine Technology Co., Ltd. The service life of our OPTIPOW air cleaning valve can reach 1,000,000 times. Resistant to low temperature -60°C and high temperature 150°C. Widely used in air purification and dust removal of thermal power plants, glass factory dust removal, laboratory dust removal and other industrial dust removal. We have a sales and after-sales service system all over the world. Our goal is to constantly improve the quality and constantly reduce the cost until customers' needs are met.
We have a global sales network and service system of OPTIPOW air cleaning valves. The company has more than 150 distributors and business cooperation partners in more than 30 countries, including Vietnam, Korea, Thailand, Bangladesh, Singapore, the Philippines, Malaysia, Russia, Kazakhstan, Uzbekistan, Ukraine, Iran, Saudi Arabia, Chile, Brazil, Canada, the United States, Mexico, Poland and other countries. "Honesty, Efficiency, Coordination, Innovation" is our corporate culture. "First-class quality, affordable price and timely service" is the unremitting pursuit of our company.
