Antistatic PET filter bags are widely used explosion-proof dust removal media. Their antistatic performance is achieved by incorporating conductive yarn into polyester fibers during the textile production process, making them economical and cost-effective. Conductive fibers or stainless steel fibers can be blended into PET yarn to deliver reliable antistatic properties.
These antistatic filter media are ideal for environments with static electricity, explosion hazards and flammable dusts. Preventing industrial dust explosions is critical when dust reaches certain concentrations. During operation, antistatic filter bags safely discharge static electricity carried by dust-laden gas, avoiding sparks and potential explosions caused by static discharge.
Striped Type: Conductive yarn is only inserted in the warp direction of the base fabric. This design offers lower cost and is suitable for general explosion-proof applications.

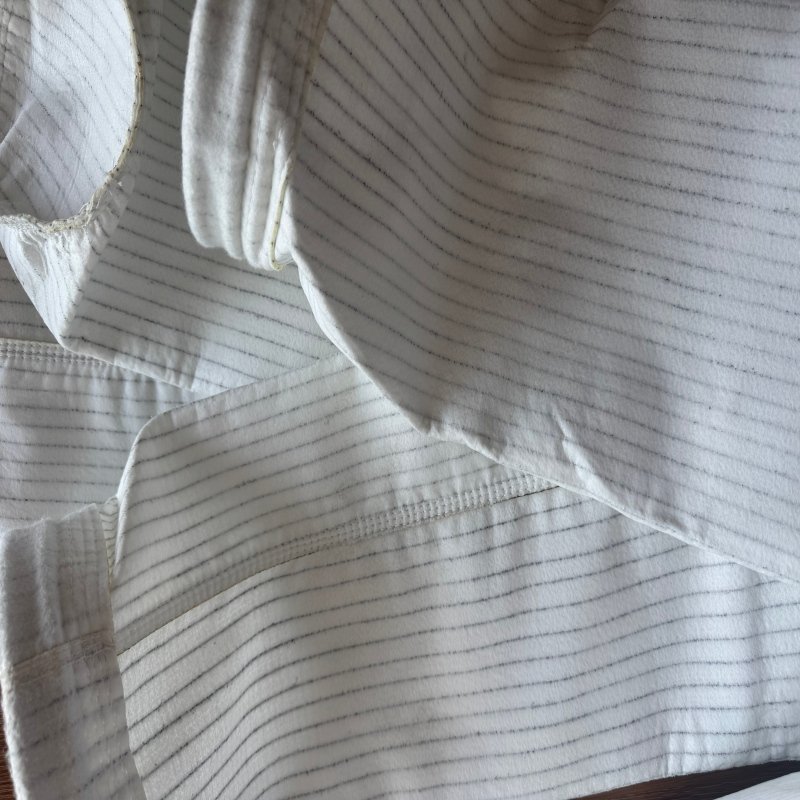

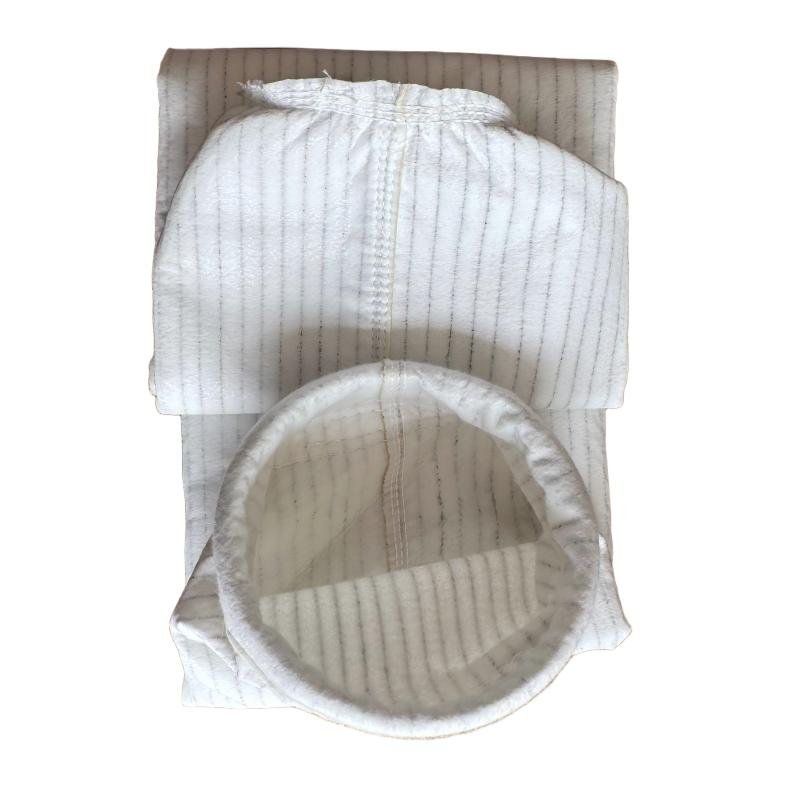

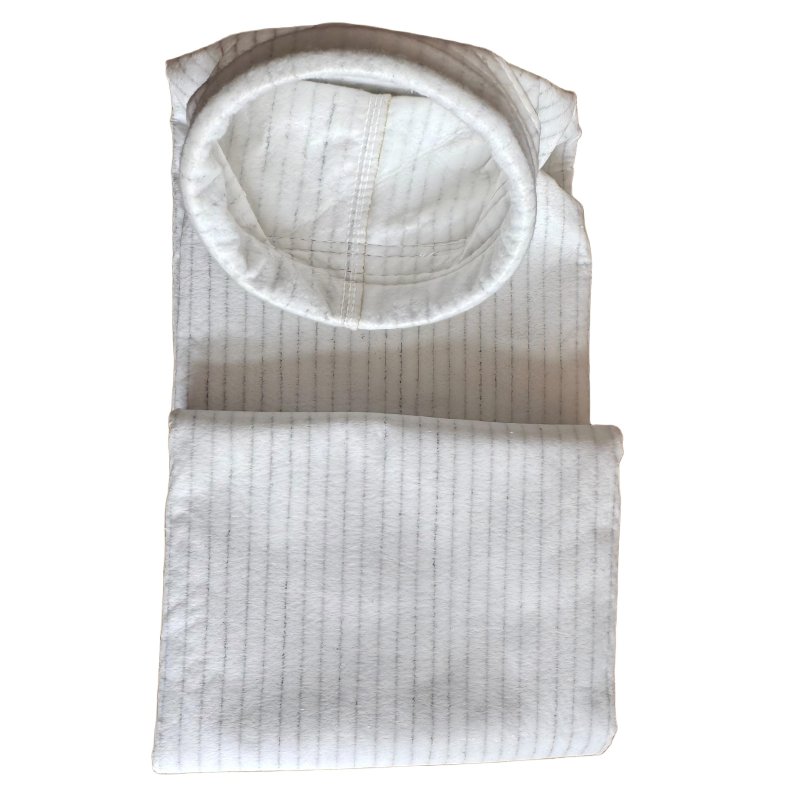

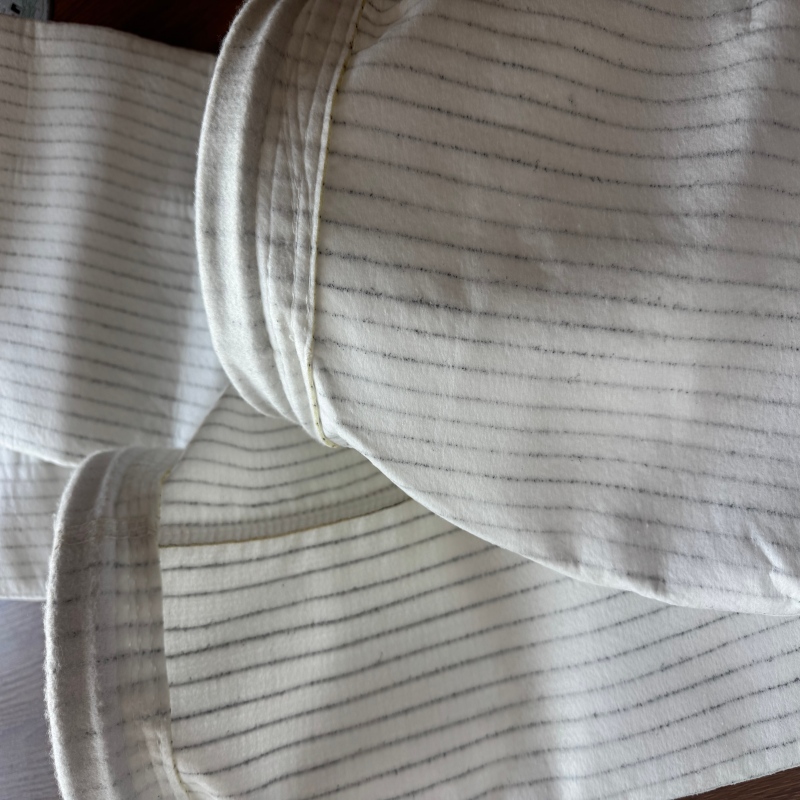

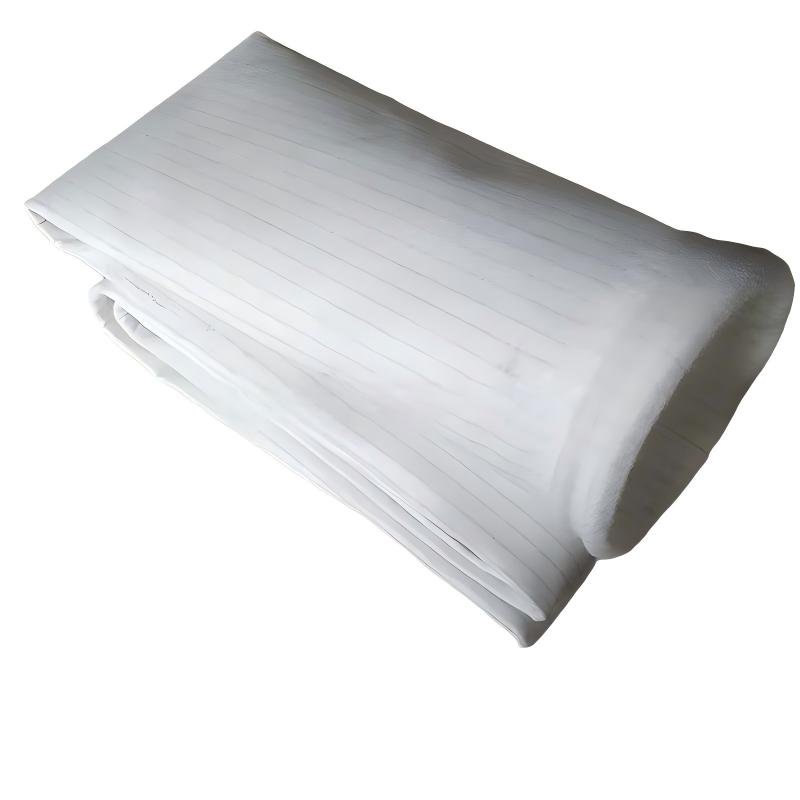

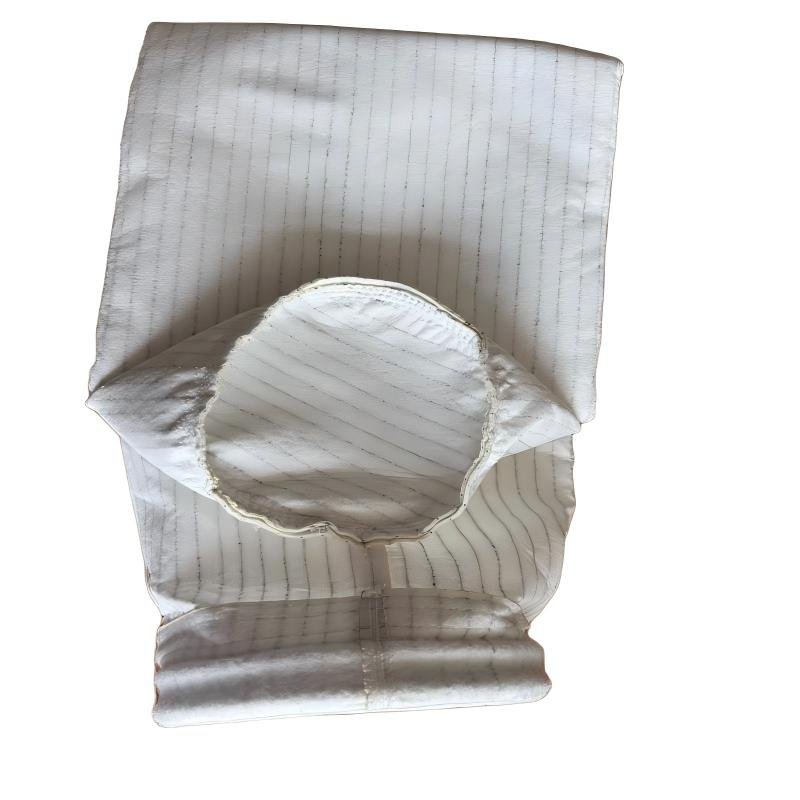

Striped Type Antistatic PET Dust Collector Filter Bag

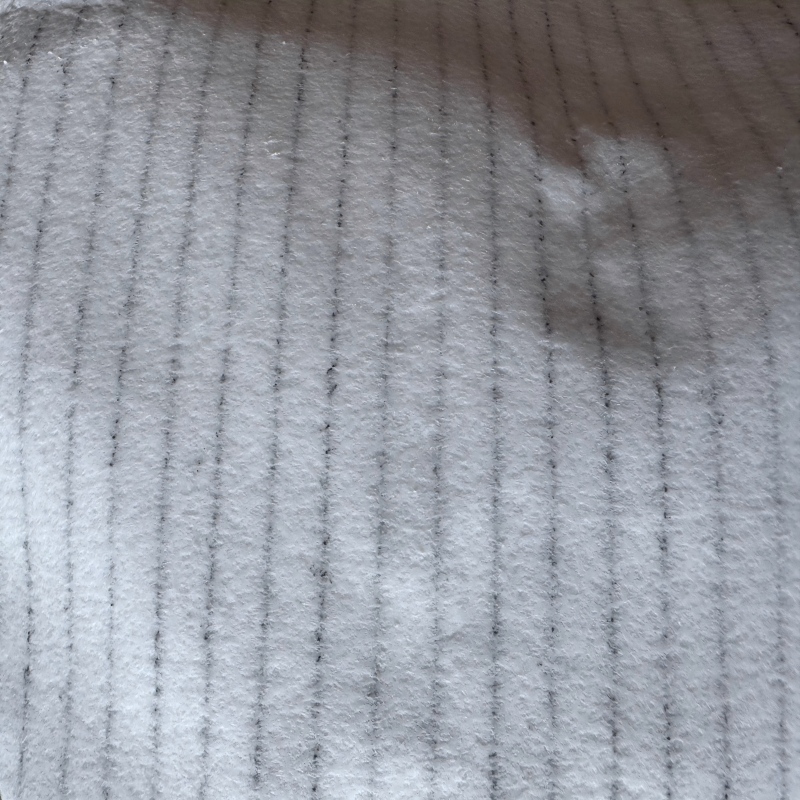

Striped type antistatic PET filter bags are cost-effective explosion-proof filter media engineered with antistatic treatment based on standard polyester needle felt. The core manufacturing process involves embedding conductive yarns at intervals along the warp direction of the filter media's base fabric, forming striped conductive channels. These conductive yarns rapidly dissipate static electricity generated by the friction between dust and airflow, preventing static accumulation, discharge sparks, and thus minimizing the risk of dust explosions.
This filter bag retains the inherent advantages of polyester material, including excellent abrasion resistance, good acid and alkali resistance, stable dimensional stability, and optimal air permeability. With a continuous working temperature of up to 130°C, it is suitable for most neutral and weakly acidic/alkaline dust removal applications. Compared with fully blended antistatic filter bags with conductive fibers, the striped structure uses less material and reduces production costs, delivering higher cost-effectiveness while meeting standard explosion-proof dust removal requirements.
It is primarily designed for environments with flammable dust and general static/explosion-proof requirements, such as pulse bag dust collectors in wood processing, grain & feed, cement & building materials, general chemical, and other industries. It is a popular choice for industrial dust removal that balances safety and cost efficiency.
Anti-static Mixed Fiber Needle Felt
| Specification Item | Detail Item | Specification Value |
| Scrim | - | 100% Polyester |
| Material | - | Polyester fiber, anti-static fiber |
| Weight | - | 500g/m² |
| Air premeability | - | 200–300L/m²/s |
| Tensile Strength | Warp | 1100N/5×20cm |
| Weft | 1200N/5×20cm | |
| After Treatment | - | Singeing, calendering, heat setting |
| Continue Working Temperature | - | 130℃ |
| Max. Working Temperature | - | 150℃ |
| Chemical Properties | - | - |
| Anti-acid | - | Good |
| Anti-alkali Excellent | - | Fair |
| Anti-oxidative | - | Good |

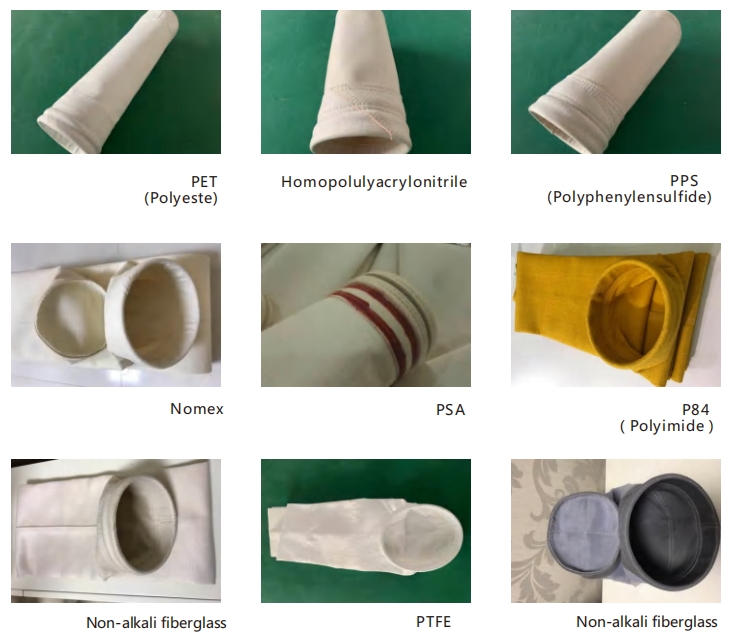

More Products

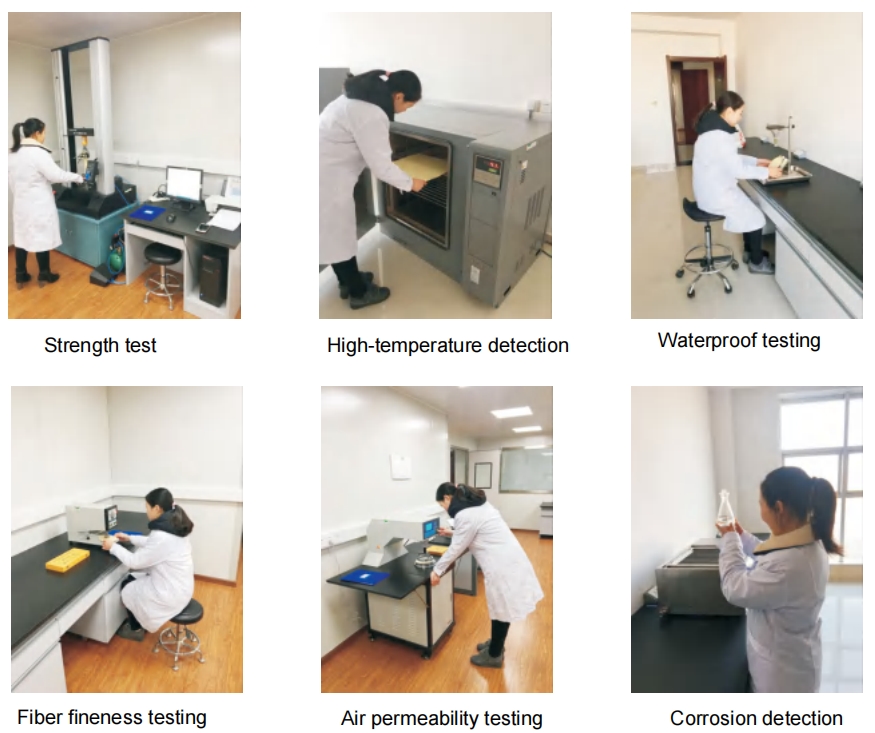

Testing Equipment

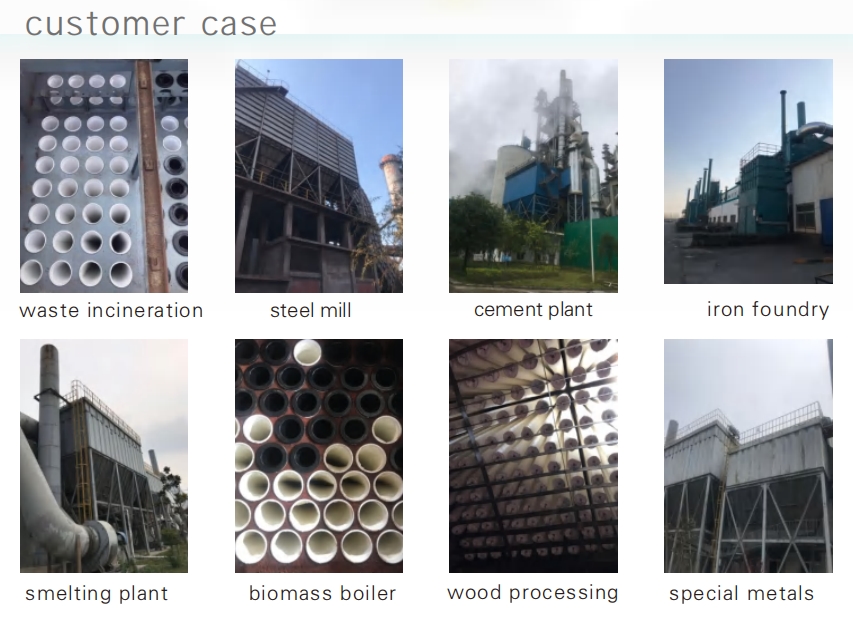

Application Scenarios
