Selecting Filter Cartridge Materials for the Pharmaceutical Industry

Overview of Cartridge Dust Collectors

A cartridge dust collector is a high-efficiency dust separation equipment that uses filter cartridges as the core filtering element and achieves dust separation through a closed loop of "filtration - cleaning - ash discharge". Its core working principle is as follows: After the dust-laden air enters the dust collector box, it is evenly distributed by the flow guide device. Dust particles are intercepted and adsorbed by the filter medium on the surface of the filter cartridge, and the purified clean air passes through the filter cartridge and is discharged from the air outlet. When the dust accumulation on the surface of the filter cartridge reaches a certain thickness, the ash cleaning system starts automatically (mostly using pulse jetting), peels off the dust on the surface of the filter cartridge and makes it fall into the ash hopper. After the ash cleaning is completed, the equipment operates continuously and stably.

Compared with traditional baghouse dust collectors, the core advantage of cartridge dust collectors lies in higher filtration accuracy. The interception efficiency for particles above 0.3 microns can exceed 99.9%, and some high-end models can reach more than 99.999%, which can easily meet the requirements of Class 10,000 and Class 1,000 clean areas in the pharmaceutical industry. At the same time, it has a more compact volume, which is suitable for the scenario of limited space in pharmaceutical workshops. In addition, it is convenient to maintain and has lower energy consumption. There is no need to frequently disassemble the filter cartridge, which greatly reduces the maintenance downtime and meets the demand for continuous production in the pharmaceutical industry. At present, it has been widely used in various dust-producing processes such as pharmaceutical API, preparations, and traditional Chinese medicine processing.

Dust Characteristics and Dust Removal Safety Risks in the Pharmaceutical Industry

Compared with industries such as chemical industry and mining, the dust in the pharmaceutical industry presents distinct characteristics of "high requirements and high risks" due to the particularity of production raw materials and processes:

1.Small particle size and easy to suspend

2.Complex composition and particularity

3.Extremely high hygiene requirements

4.Large differences in dust viscosity

5.Fluctuating dust concentration

Therefore, improper management of cartridge dust collectors during application will lead to multiple safety risks, which not only threaten production safety but also may cause enterprises to stop production due to violations. There are mainly 4 types:

Fire and explosion risk (the core risk): Combustible dust (such as starch, API organic dust) accumulates in the dust collector box. When it reaches the lower explosive limit, if it encounters an ignition source (such as static electricity generated by filter cartridge friction, electric sparks from the ash cleaning system, electric sparks from motor failures, etc.), coupled with the closed box and sufficient air conditions, it is very easy to cause dust explosion. In severe cases, it may lead to equipment explosion, workshop fire, and even casualties.

Drug contamination risk: Damage to the filter cartridge or poor sealing will lead to leakage of unfiltered dust-laden air, polluting the production environment and drugs. If the filter cartridge material does not meet pharmaceutical standards, it may release harmful substances, or the dust accumulated on the surface of the filter cartridge may fall off into the drug production process, resulting in cross-contamination of drugs and batch scrapping, which violates GMP requirements and affects the compliant operation of enterprises.

Personnel health and environmental protection risks: If toxic and corrosive dust leaks through the dust collector and is inhaled by operators, it will irritate the respiratory tract and damage health, and long-term exposure may cause occupational diseases. If the dust emission exceeds the standard, it will also violate environmental protection laws and regulations, facing penalties such as high fines and production suspension for rectification. In some strict regions, the dust emission concentration is required to be controlled below 10mg/m³.

Equipment Operation & Reliability: Selecting the right filter cartridge material is key to mitigating operational risks and ensuring uninterrupted production. Common challenges such as filter cartridge blockage, corrosion, or aging can cause uneven pressure differentials and unnecessary fan wear. Similarly, well-maintained ash cleaning systems (e.g., clear pulse valves and adequate injection pressure) are essential for thorough cleaning, reducing premature cartridge wear. Under extreme conditions, high temperature and humidity can lead to dampness and performance issues. By choosing materials engineered for specific environments—whether heat, moisture, or sticky dust—manufacturers can prevent these inefficiencies and maintain consistent, reliable operation.

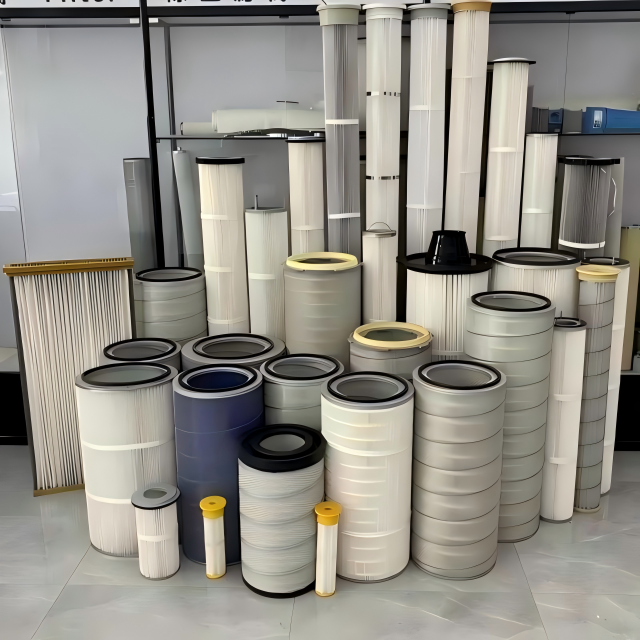

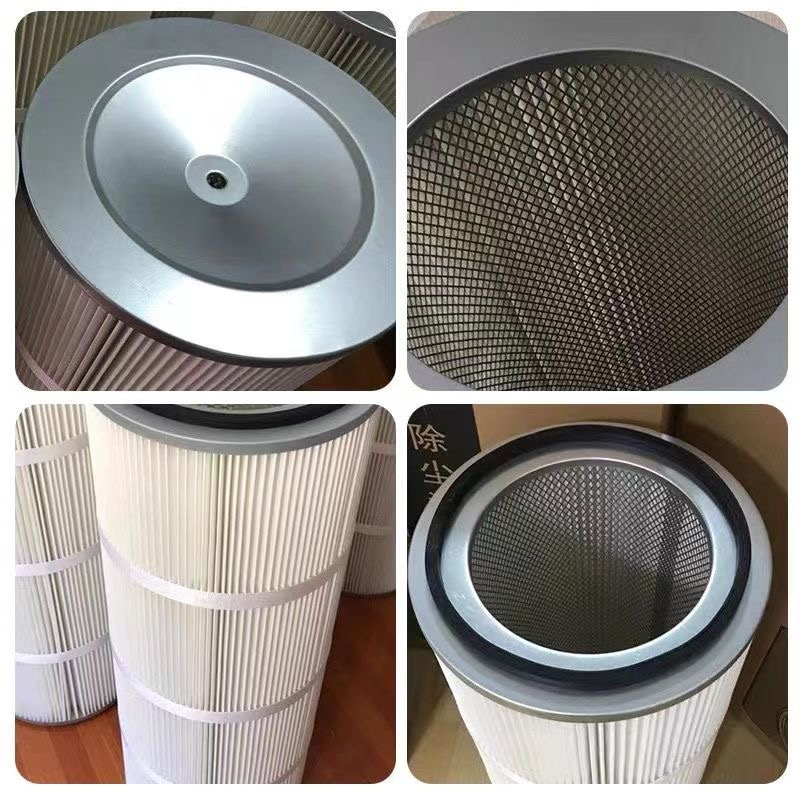

Selection of Filter Cartridge Materials

As the core component of the dust collector, the selection of filter cartridge material directly determines the filtration efficiency, safety performance and service life. The selection of filter cartridges in the pharmaceutical industry must follow the principles of "compliance first, adaptation to working conditions, and safety and reliability". Combined with dust characteristics and production requirements, the common materials and applicable scenarios are as follows to avoid the trap of "mismatch between material and working conditions":

1.Pharmaceutical-grade polyester fiber filter material: The most commonly used basic material, which meets food-grade and pharmaceutical-grade standards, contains no harmful substances, has undergone high-temperature sterilization (121℃ moist heat sterilization), and will not release VOCs. It is suitable for ordinary dry pharmaceutical powders (such as excipients like starch and lactose). It has high filtration accuracy, a smooth surface that is easy to clean, and adopts an integrated molding process with no dead corners for hygiene. It can be cleaned by sterile compressed air purging, with high cost performance and a service life of about 3-6 months. It is suitable for ordinary dust-producing processes in Class 10,000 clean areas, and some models can reach a filtration accuracy of 5um.

2.PTFE microporous membrane filter material: A high-end adaptive material. The surface is compounded with a 0.2-micron PTFE membrane to form a molecular-level filtration barrier. The interception efficiency can reach more than 99.995%, which can effectively intercept sub-micron dust and microorganisms (such as Escherichia coli), fully meeting the requirements of FDA and EU GMP for Class A clean areas. Its core advantages are anti-sticking, corrosion resistance and anti-static. It has low surface energy, reducing dust adhesion by 75%, which can avoid the adhesion of viscous dust. At the same time, it can resist the erosion of acid and alkali substances, and is suitable for flammable, explosive, corrosive and sticky dust working conditions (such as API raw materials and organic acid dust). The service life can reach 6-10 months, making it the first choice for high-risk working conditions in the pharmaceutical industry.

3.Glass fiber composite filter material: A special material for high temperature resistance. It can withstand high temperatures above 150℃ for a long time and 200℃ for a short time, and is suitable for high-temperature working conditions (such as high-temperature dust-laden air in API drying and traditional Chinese medicine stir-frying links). It has excellent high-temperature resistance and sterilization resistance. It will not soften, deform or release harmful substances during 121℃ moist heat sterilization and 180℃ dry heat sterilization. It is suitable for high-temperature dust-producing processes, but its price is relatively high and it is brittle, so severe collision should be avoided.
