This series of filter cloth is woven from polypropylene (PP) fiber,available in staple fiber, filament and monofilament.It features excellent acid and alkali resistance, low specific gravity,with a recommended operating temperature below 90℃.

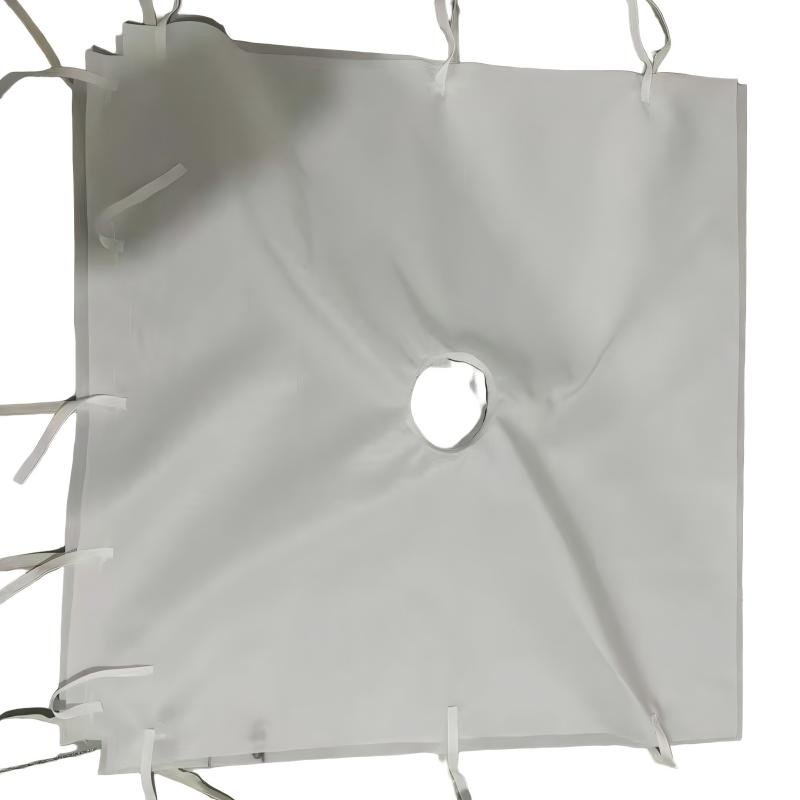

The PP filament filter cloth has a smooth surface and good permeability,making it ideal for filter press applications and powder filtration.

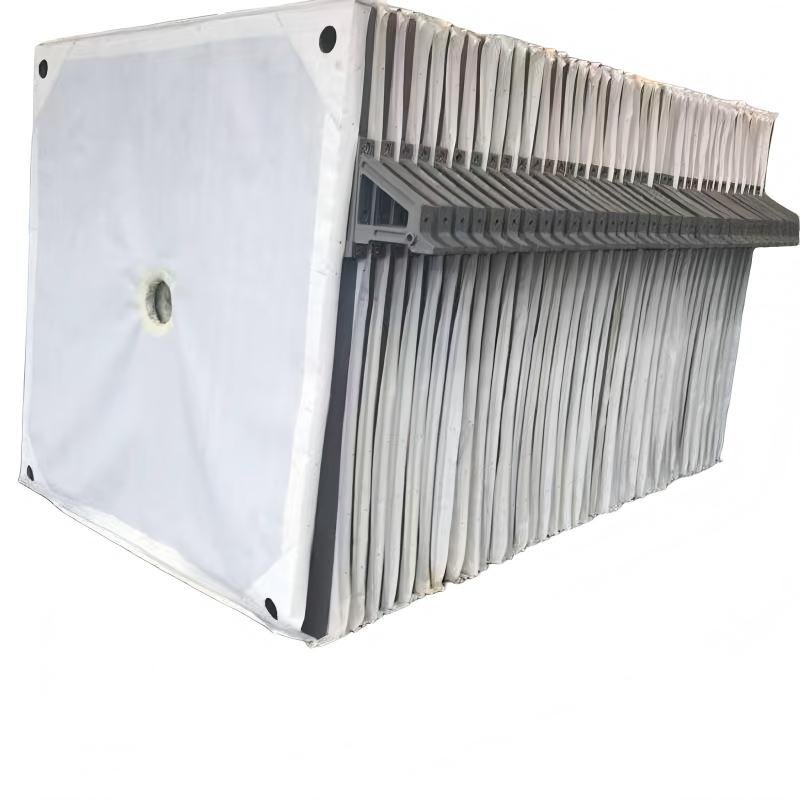

Our company currently offers more than 80 varieties of polypropylene filament filter cloths. We can flexibly adjust the pattern, density and weaving method of the products according to customers' actual needs to adapt to different working conditions. This series of products has a wide range of applications and can be supporting used in various filtration equipment such as plate and frame filter presses and belt filters. It is especially suitable for strong alkaline working conditions in industries such as dyestuff and chemical industry, sugar industry, pharmaceutical industry and alumina industry. In addition, this series of filter cloths has excellent filtration precision, which can reach below 1 micron, effectively realizing fine filtration and ensuring the filtration effect.
Polypropylene Filter Cloth Product Description
Technical Specifications
| Parameter | Value | Parameter | Value |
| Material | Polypropylene Fiber (PP Fiber) | Thickness | 1.4 mm |
| Weave Type | Plain Weave & Twill Weave | Air Permeability | 24.41 L/(m²·s) @200Pa |
| Unit Weight | 600 g/m² | Tensile Strength (Weft Direction) | 5421 N/5×20cm |
| Tensile Strength (Warp Direction) | 6718 N/5×20cm | Density (Weft Direction) | 220 yarns/10cm |
| Density (Warp Direction) | 377 yarns/10cm |
Chemical Resistance
| Property | Rating | Property | Rating | Property | Rating |
| Acid Resistance | Good | Alkali Resistance | Good | Oxidation Resistance | Fair |
Why Choose Us

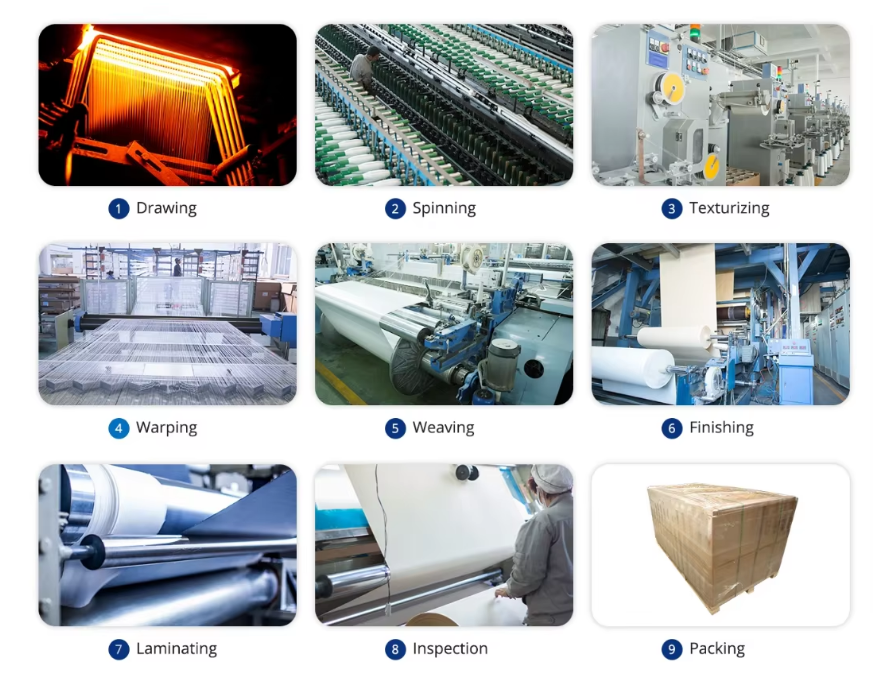

The company boasts mature and standardized production processes, advanced quality inspection equipment, and a complete, systematic packaging and delivery workflow.
