This valve features a pilot-operated solenoid and provides fast response times for accurate pulse jet control. Its robust construction ensures minimal wear over time, while the energy-saving design reduces operational costs.
Item: Pulse Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Manifold, Jet Pulse Filter, Pulse Valve, Directly from Chinese Manufacturer
Valve design: Pilot operated diaphragm structure
Warranty period: two years or 100,000 times
Warranty mode: Replacement, not repair
Service: 7 * 24 hours online
Paymet product: letter of credit, t/t, d/, Western Union, PayPal, Money Gram
Transport packaging: according to customer requirements
Delivery time: Any time

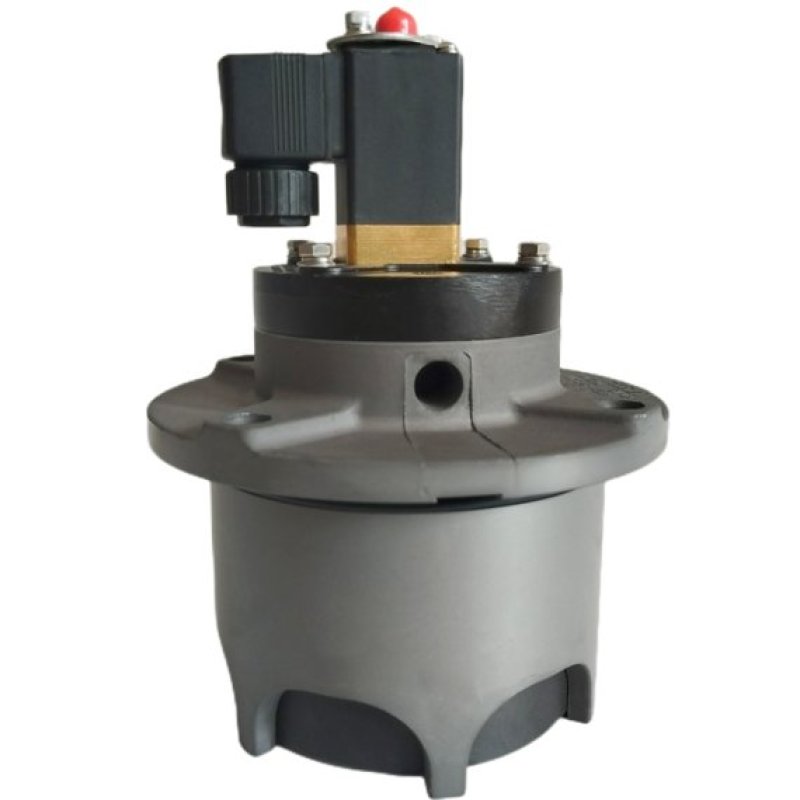

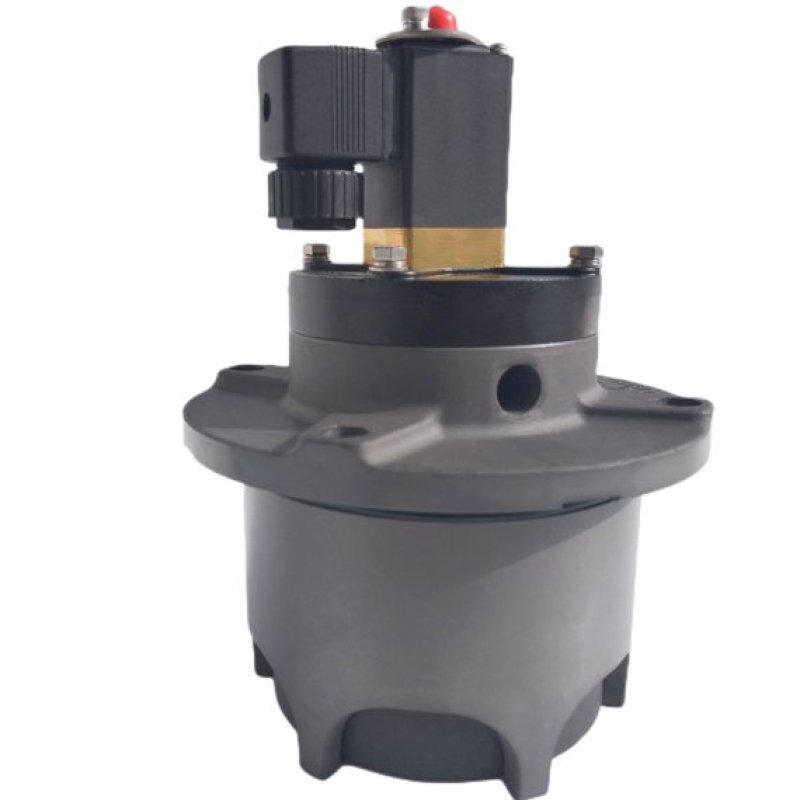

Compact pulse valve for Optipulse fabric filters of various types.
is the result of many years of experience in the field of fabric filter technology.
acts quickly with high efficiency.
has small dimensions, the figure after the name is on the piston diameter.
is primarily intended for use in combination with a round pressure tank.
is easy to install and maintain.
has a very robust design, designed for normal use at air pressures of up to 600 kPa (6 bar).
Normal maximum operating temperature (compact pulse valve) 50 ° C.
Product description
OPTIPOW AIR DUST COLLECTOR FUNCTION
Volume A is connected to the pressure tank through a gap between the valve body and the plunger. Volume A has the same pressure as the pressure tank.
Due to the larger pressure surface of the plunger in volume A, the piston is pressed against the impulse pipe and sealed between the pressure tank and the impulse pipe.
Volume B is released through a solenoid valve connected to the pilot air system. The area on the pilot air side is larger, so the pilot diaphragm is pressed against the top of the valve body and isolates volume A from the environment.

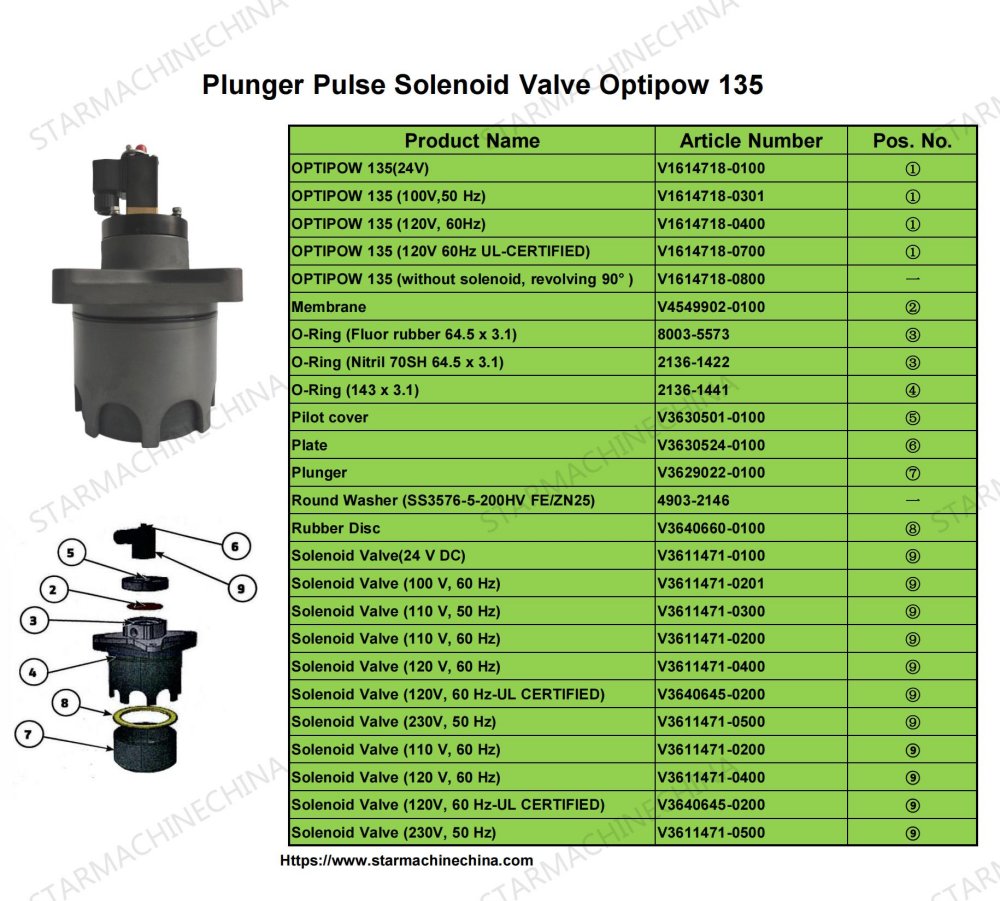

TWO SPECIFICATIONS: OPTIPOW PLUNGER PULSE AIR MANIFOLD SOLENOID VALVE
OPTIPOW 135 (24В) V1614718-0100
OPTIPOW 135 (100V, 50Hz) V1614718-0301
OPTIPOW 135 (120V, 60Hz) V1614718-0400
OPTIPOW 135 (120V, 60Hz, UL-CERTIFIED) V1614718-0700
OPTIPOW 135 (without solenoid, rotates 90°C) V1614718-0800

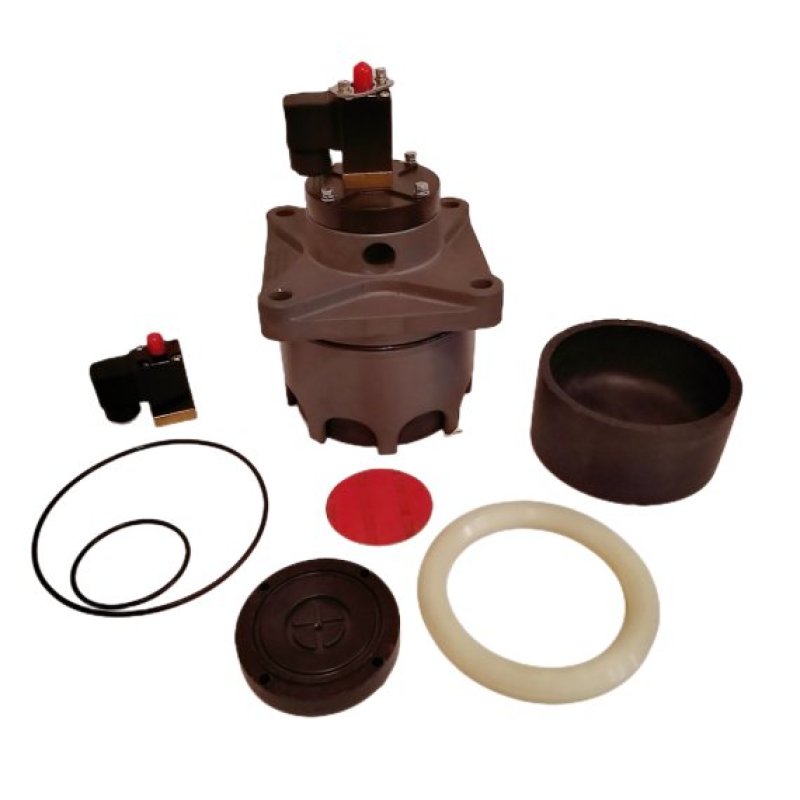

Membrane V4549902-0100
O-ring (fluororubber 64.5 x 3) 8003-5573
O-ring (Nitril 70SH 64.5 x 3) 2136-1422
Sealing ring (114.5x3) 2136-1441
Pilot cover V3630501-0100
Plate V3630524-0100
Plunger V3629022-0100
Round washer (SS3576-5-200HV FE/ZN25) 4903-2146 -
Rubber disc V3640660-0100
Solenoid Valve (24VDC) V3611471-0100
Solenoid valve (100V, 60Hz) V3611471-0201
Solenoid Valve (110V, 50Hz) V3611471-0300
Solenoid Valve (110V, 60Hz) V3611471-0200
Solenoid Valve (120V, 60Hz) V3611471-0400
Solenoid valve (120V, 60Hz-
Piston type pulse valve V1585320
Piston type pulse valve V3630501
OPTIPOW 105 (24VDC) V1617803-0100
OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) V1617803-0200
OPTIPOW 105 (110V, 50Hz) V1617803-0300
OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400
OPTIPOW 105 (220 V, 50 Hz) V1617803-0500
OPTIPOW 105 (CERTIFIED UR 120V 60HZ) V1617803-0600
OPTIPOW 105 (without solenoid, rotates 90°C) V1617803-0800

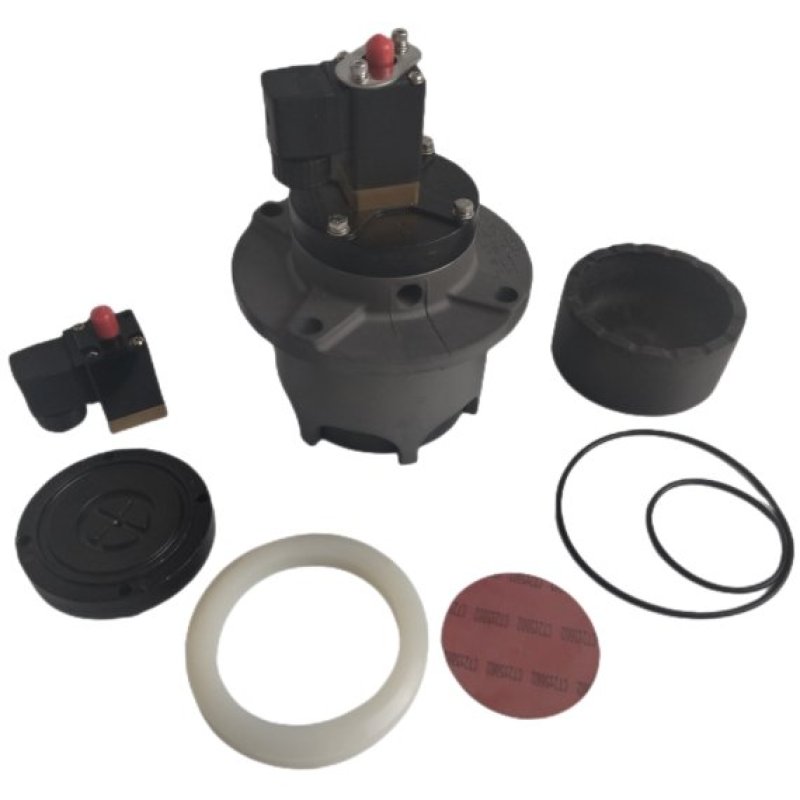

Clutch kit V3592382-0000
Membrane V4549902-0100
O-ring (fluororubber 64.5 x 3) 8003-5573
O-ring (Nitril 70SH 64.5 x 3) 2136-1422
O-ring (114.5 x 3) 2136-1435
Pilot cover V3630501-0100
Plate V3630524-0100
Plunger V3630527-0100
Round Washer (SS3576-10-200HV FE/ZN45 Mounting Parts) 4903-2173
Rubber disc V3630530-0100
Rubber disc V3640661-0100
Screw (ISO4762-M10x30-8.8 ZN8C, mounting parts) 2034-2495
Solenoid Valve (24VDC) V3611471-0100
Solenoid valve (100V, 60Hz) V3611471-0201
Solenoid Valve (110V, 50Hz) V3611471-0300
Solenoid Valve (110V, 60Hz) V3611471-0200
Solenoid Valve (120V, 60Hz) V3611471-0400
Solenoid Valve (120V, 60Hz - UL Listed) V3640645-0200
Solenoid valve (230V, 50Hz) V3611471-0500

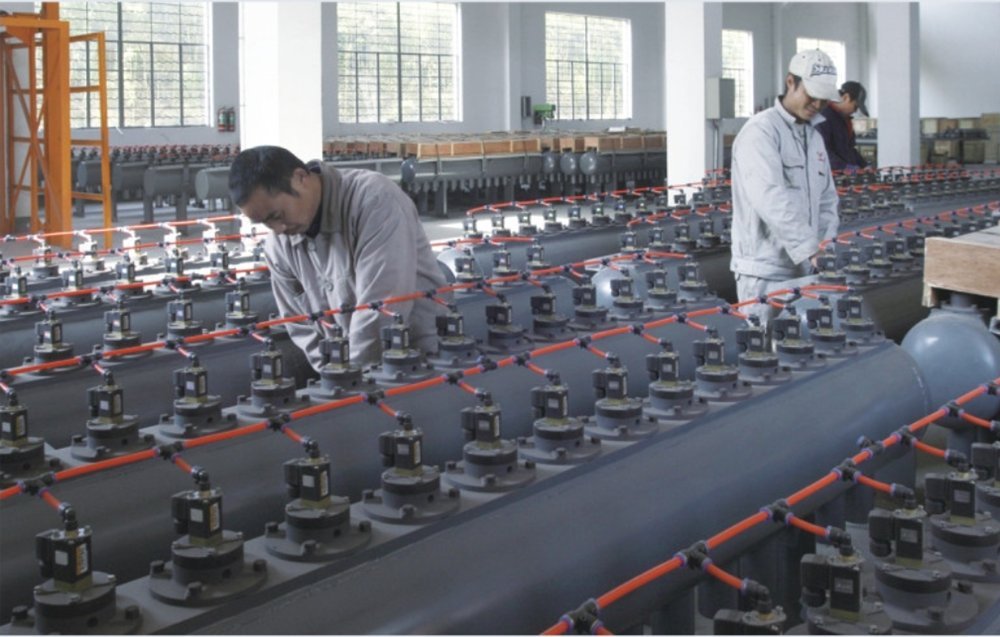

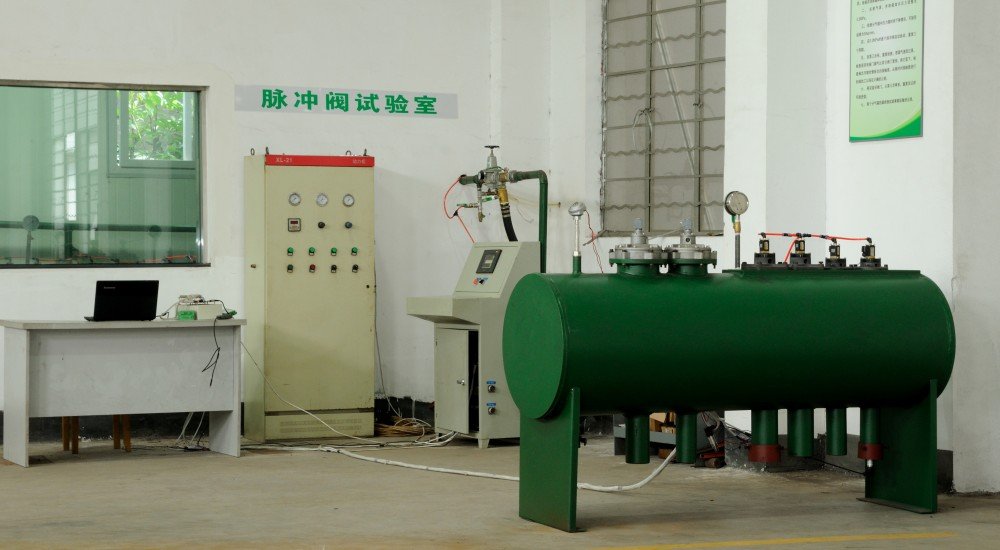

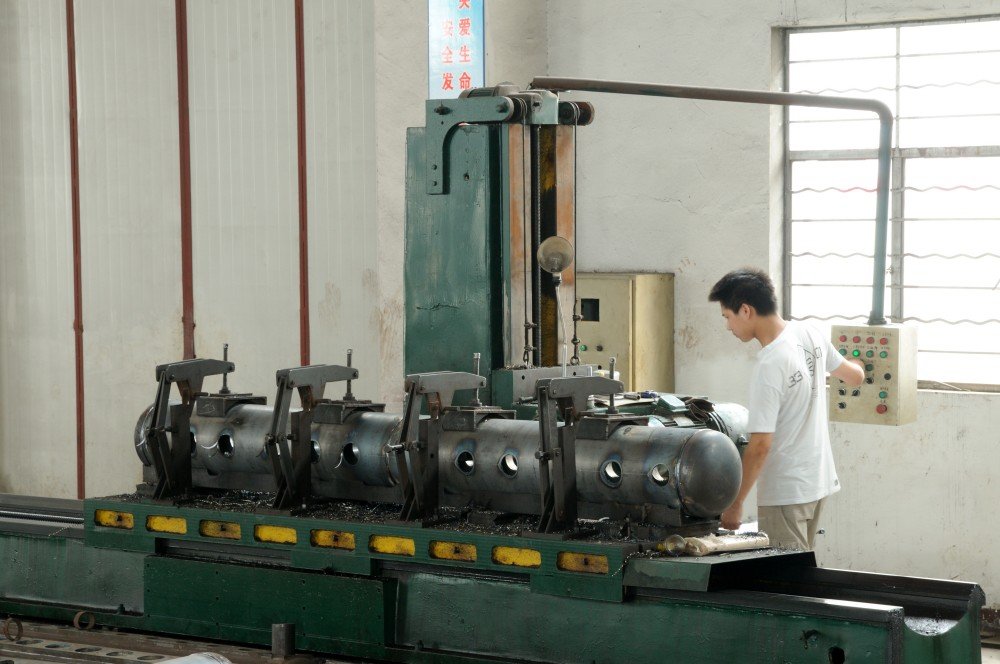

Optipow Valve Parts Machining Workshop and Testing Laboratory
WHY CHOOSE US
1. Reliable quality assurance system;
2. The latest computer-controlled CNC machines;
3. Individual solutions from highly qualified specialists;
4. Customization and OEM are available for specific application;
5. Extensive warehouse stock of spare parts and accessories;
6. Developed worldwide marketing network;
7. Effective after-sales service system
As a pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse manifold, jet filter, pulse valve, directly from China manufacturer, we have a global sales network and service system. At present, there are more than 150 distributors and business cooperation partners in more than 30 countries, including Vietnam, Korea, Thailand, Bangladesh, Singapore, the Philippines, Malaysia, Russia, Kazakhstan, Uzbekistan, Ukraine, Iran, Saudi Arabia, Chile, Brazil, Canada, the United States, Mexico, Poland and other countries. "Integrity, Efficiency, Coordination, Innovation" is our enterprise culture. "First-class quality, affordable price and timely service" is the unremitting pursuit of our company.
EXPRESS DELIVERY OF OPTIPOW DUST COLLECTOR IS POSSIBLE
We cooperate with UPS, DHL, FEDEX, TNT and other door-to-door express delivery services all year round. Generally, we will choose the fastest way according to the customer's address.
LET OUR INDUSTRY EXPERTS CREATE A CUSTOM SOLUTION FOR YOU
Working with Qingdao Star Machine Technology Co., Ltd. for dust collection is as easy as requesting a quote. Once you contact our sales team, our dedicated representative will work with you from start to finish, gain a deep understanding of your needs, and provide the best solutions to the problems you face. Qingdao Star Machine Technology Co., Ltd. will not waste your time. We respect your position in the market and provide honest, up-to-date information that saves you time, money, and peace of mind.
