INTRODUCTION TO OPTIPOW AIR DUST COLLECTOR

Pulse valve for dust collector, used with filter bags.

Compact pulse valve for Optipulse fabric filters of various types. Pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse jet valve, direct from Chinese manufacturer - Qingdao Star Machine Technology Co., Ltd.

is the result of many years of experience in the field of fabric filter technology.

acts quickly with high efficiency.

It has small dimensions, the figure after the name is on the piston diameter.

Primarily intended for use in conjunction with a round pressure tank.

easy to install and maintain.

has a very robust construction, designed for normal use at air pressures up to 600 kPa (6 bar).

Normal maximum operating temperature (compact pulse valve) 50°C.

Product description

INSTALLATION OF OPTIPOW AIR DUST COLLECTOR

ASSEMBLY INSTRUCTIONS

Before assembling OPTIPOW units, it is important to thoroughly clean the inside of the pressure tank. Any particle in the tank can cause serious problems with the operation of the pulse valves in the future.

Pulse valve for dust collector

The OPTIPOW valve is designed for vertical installation as standard. When the valve is to operate horizontally, an additional internal spring must be used. This ensures that the plunger is always in the closed position when pressurizing the cleaning system. As a rule, OPTIPOW is supplied as a single unit in special packaging. For detailed assembly instructions for individual parts, see the OPTIPOW assembly drawing.

First, unpack the valves when installing them.

Make sure there is no visible damage to the valve.

Make sure there is no foreign material inside the valve.

Make sure the top of the impulse tube is smooth and free of burrs.

The item numbers below refer to those shown in Figure 1.

Place the piston (item 4) into the top of the impulse tube. Lubricate the O-ring on the outside of the valve body (item 1) and align the house with the plunger. When installing the impulse valve, be careful not to damage the O-ring. Rotate the house so that the solenoid faces the desired direction. Tighten the four bolts with your fingers as far as possible, then make the final adjustment with a cross-shaped tool to avoid damaging the O-ring. Torque to specifications.

Optipow Solenoid Valve

The service life can reach 1,000,000 times. Resistant to low temperature of -60°C and high temperature of 150°C. Widely used in air purification and dust removal of thermal power plants, glass factory dust removal, laboratory dust removal and other industrial dust removal. We have a sales and after-sales service system all over the world. Our goal is to continuously improve the quality and continuously reduce the cost to meet the needs of customers.

Low compressed air loss: The OPTIPOW pulse valve reduces compressed air consumption compared to the diaphragm type.

Compact size: OPTIPOW pulse valve is much smaller than the diaphragm valve shape, pulse valve shape, which means that the distance between bags is not limited by the valve size, only the process parameters (Babbe gas, no filter, fly ash type and concentration) determine the bag size, two OPTIPOW pulse valves short distance can be passed up to 160mm.

OPTIPOW pulse valve has two specifications 105 and 135, the number represents the piston diameter.

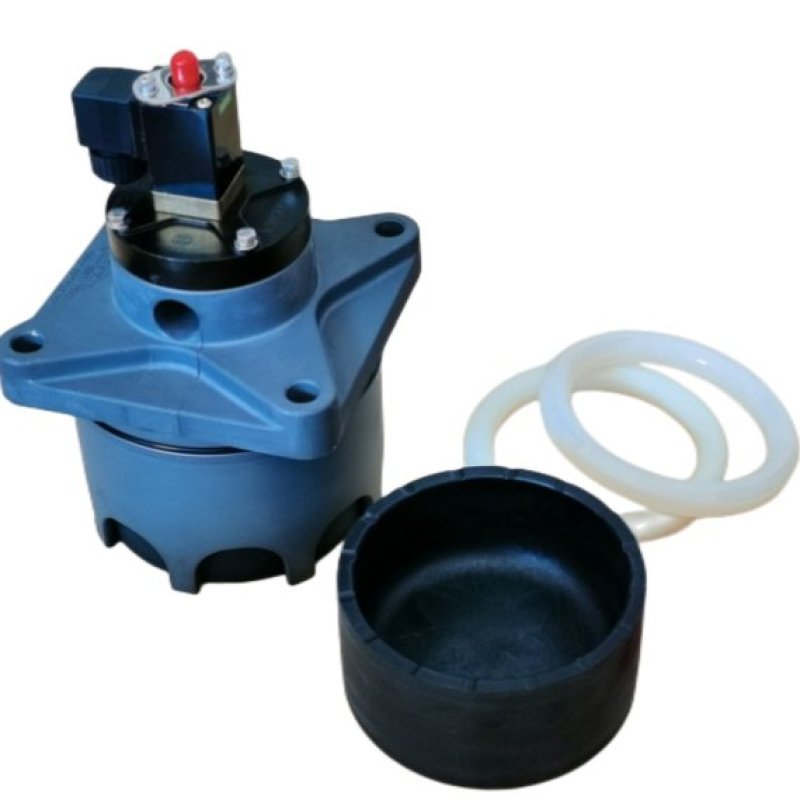

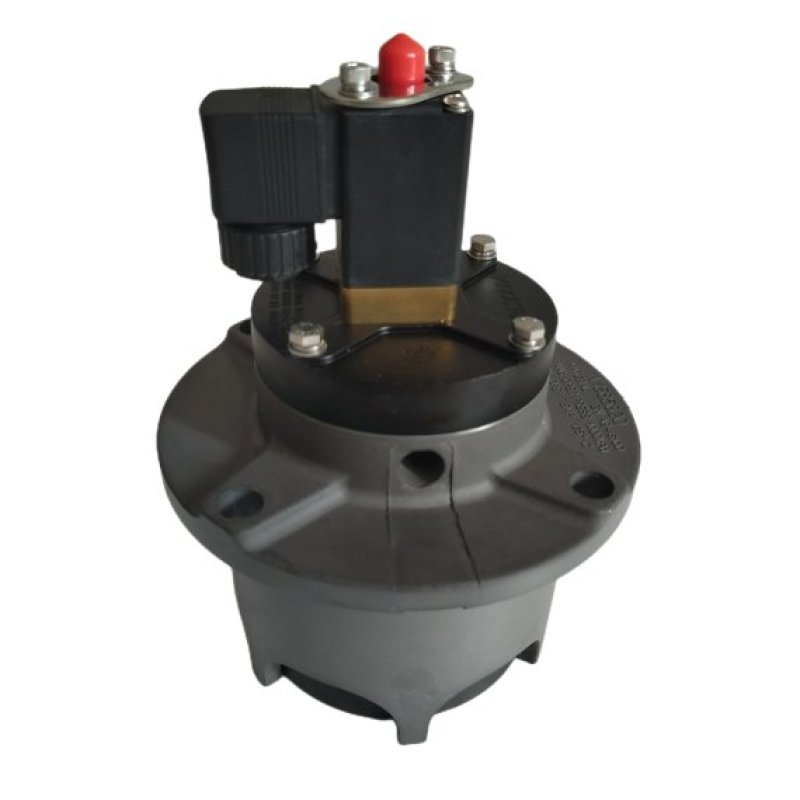

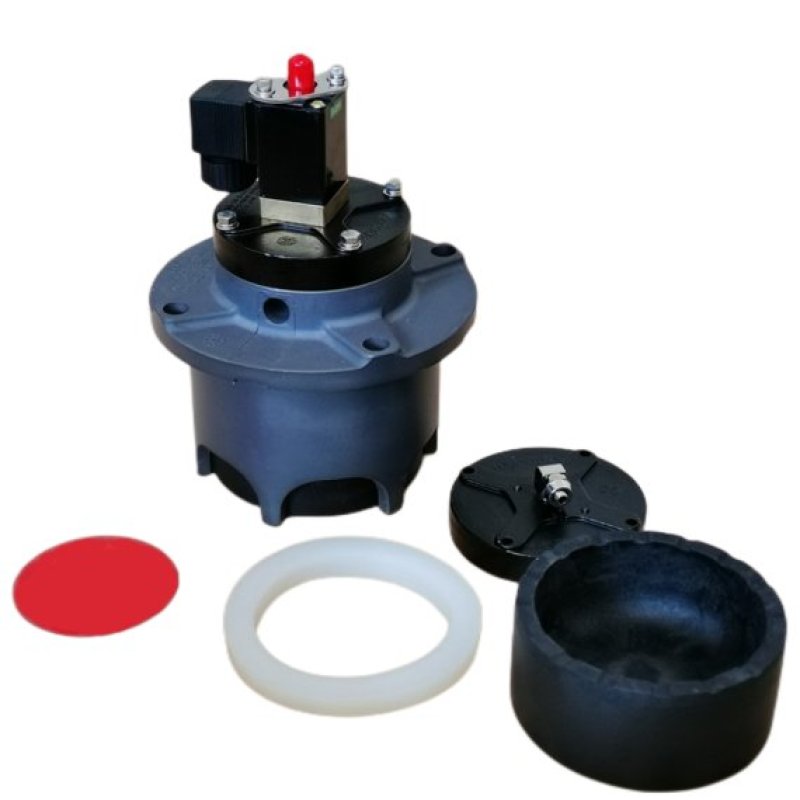

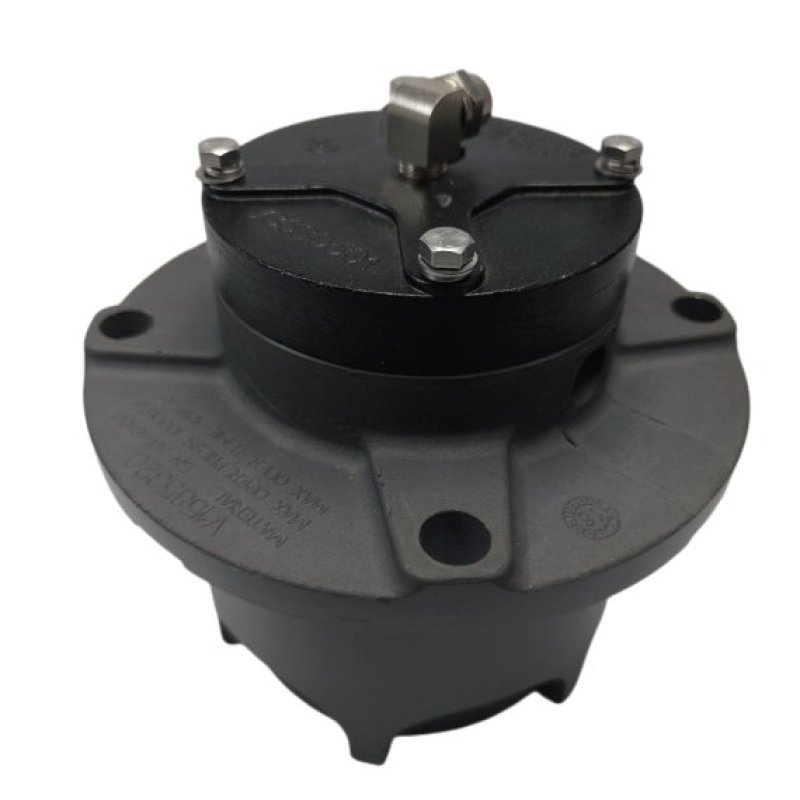

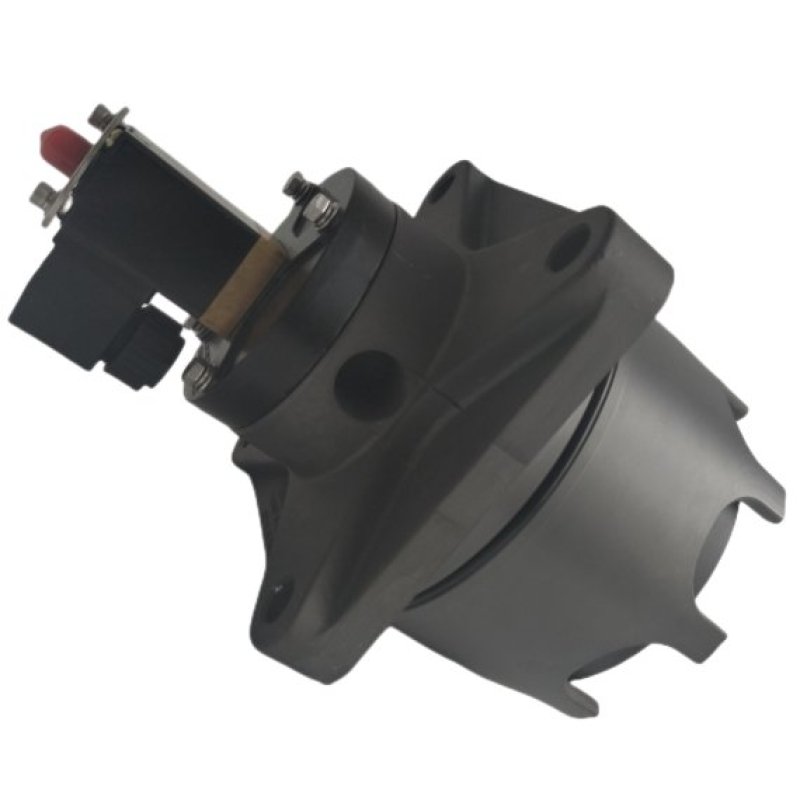

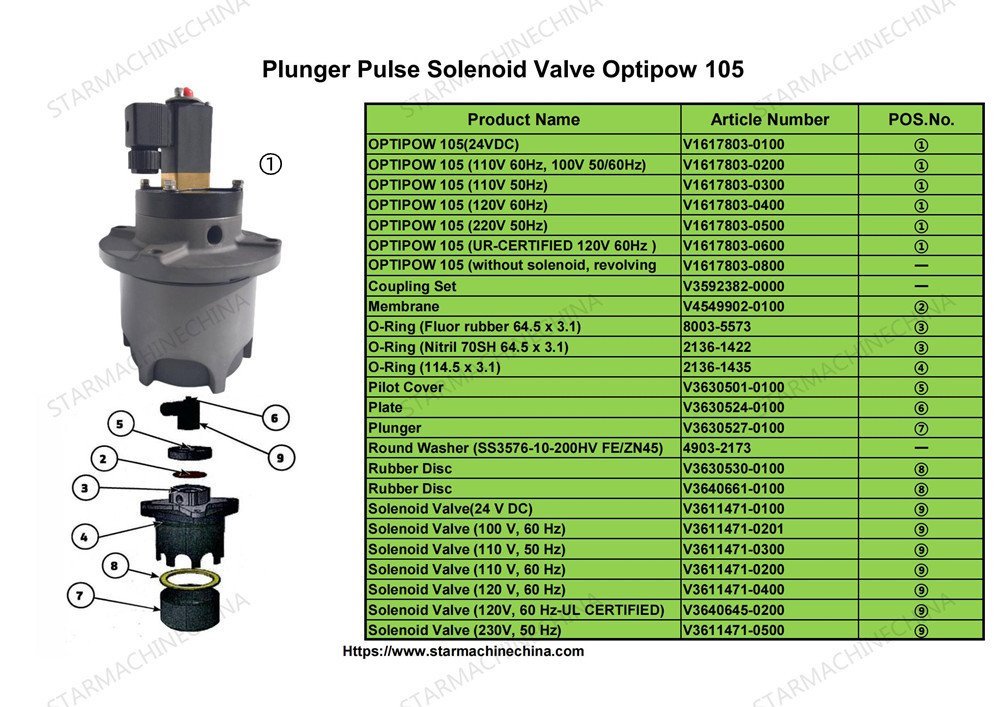

Optipow OPTIPOW105 piston type pulse valve

Piston diameter 105 mm

Number of filter bags: 30

Filter bag length: 10 m

Piston type pulse valve V1585320

Piston type pulse valve V3630501

OPTIPOW 105 (24VDC) V1617803-0100

OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) V1617803-0200

OPTIPOW 105 (110V, 50Hz) V1617803-0300

OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400

OPTIPOW 105 (220 V, 50 Hz) V1617803-0500

OPTIPOW 105 (CERTIFIED UR 120V 60HZ) V1617803-0600

OPTIPOW 105 (without solenoid, rotates 90°C) V1617803-0800

Clutch kit V3592382-0000

Membrane V4549902-0100

O-ring (fluororubber 64.5 x 3) 8003-5573

O-ring (Nitril 70SH 64.5 x 3) 2136-1422

O-ring (114.5 x 3) 2136-1435

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3630527-0100

Round Washer (SS3576-10-200HV FE/ZN45 Mounting Parts) 4903-2173

Rubber disc V3630530-0100

Rubber disc V3640661-0100

Screw (ISO4762-M10x30-8.8

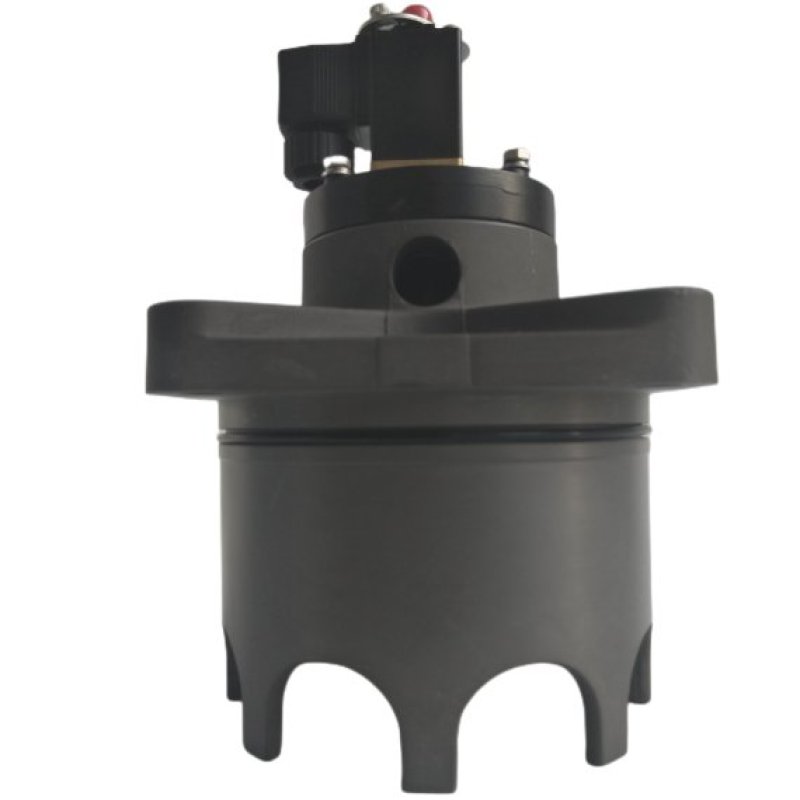

Optipow OPTIPOW135 piston type pulse valve

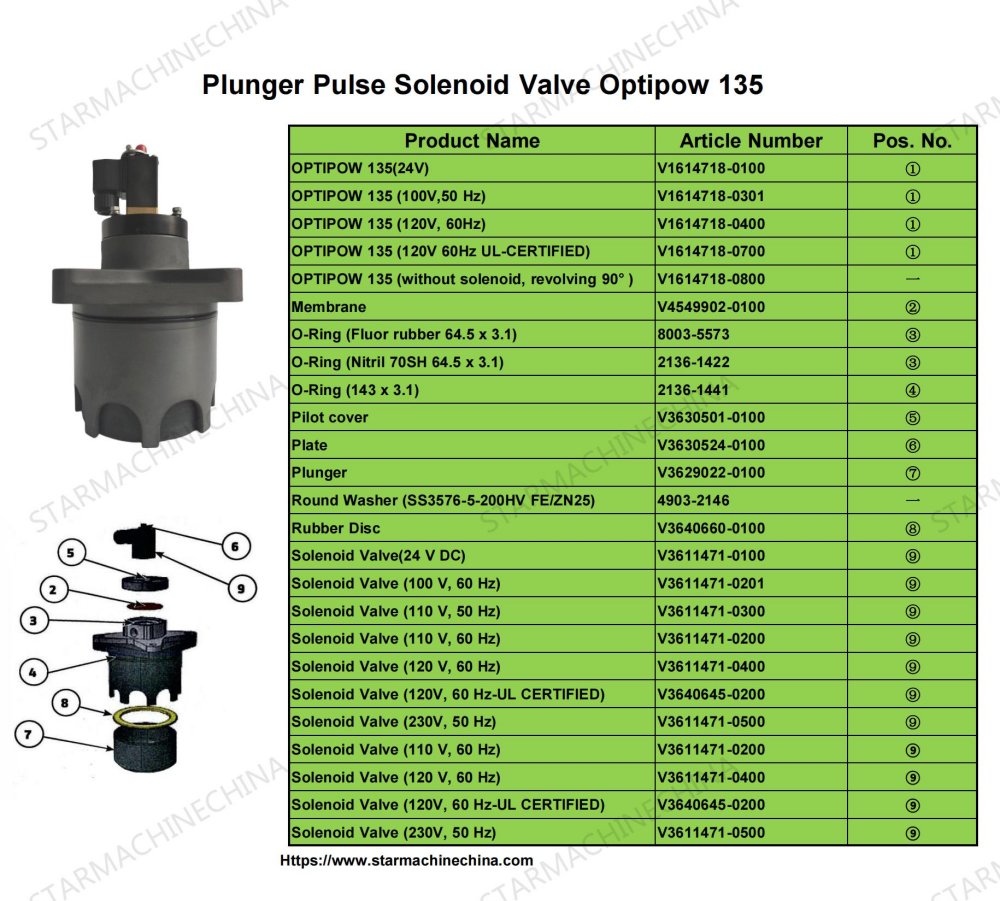

OPTIPOW piston pulse cleaning valve models

OPTIPOW 135 (24В) V1614718-0100

OPTIPOW 135 (100V, 50Hz) V1614718-0301

OPTIPOW 135 (120V, 60Hz) V1614718-0400

OPTIPOW 135 (120V, 60Hz, UL-CERTIFIED) V1614718-0700

OPTIPOW 135 (without solenoid, rotates 90°C) V1614718-0800

Membrane V4549902-0100

O-ring (fluororubber 64.5 x 3) 8003-5573

O-ring (Nitril 70SH 64.5 x 3) 2136-1422

Sealing ring (114.5x3) 2136-1441

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3629022-0100

Round washer (SS3576-5-200HV FE/ZN25) 4903-2146

Rubber disc V3640660-0100

Solenoid Valve (24VDC) V3611471-0100

Solenoid valve (100V, 60Hz) V3611471-0201

Solenoid Valve (110V, 50Hz) V3611471-0300

Solenoid Valve (110V, 60Hz) V3611471-0200

Solenoid Valve (120V, 60Hz) V3611471-0400

Solenoid Valve (120V 60Hz-UL Certificate ALSTOM New Compact Piston Pulse Valve ALSTOM New Compact Piston Pulse Valve ALSTOM OPTIPOW is mainly used for bag cleaning and round drum installation.

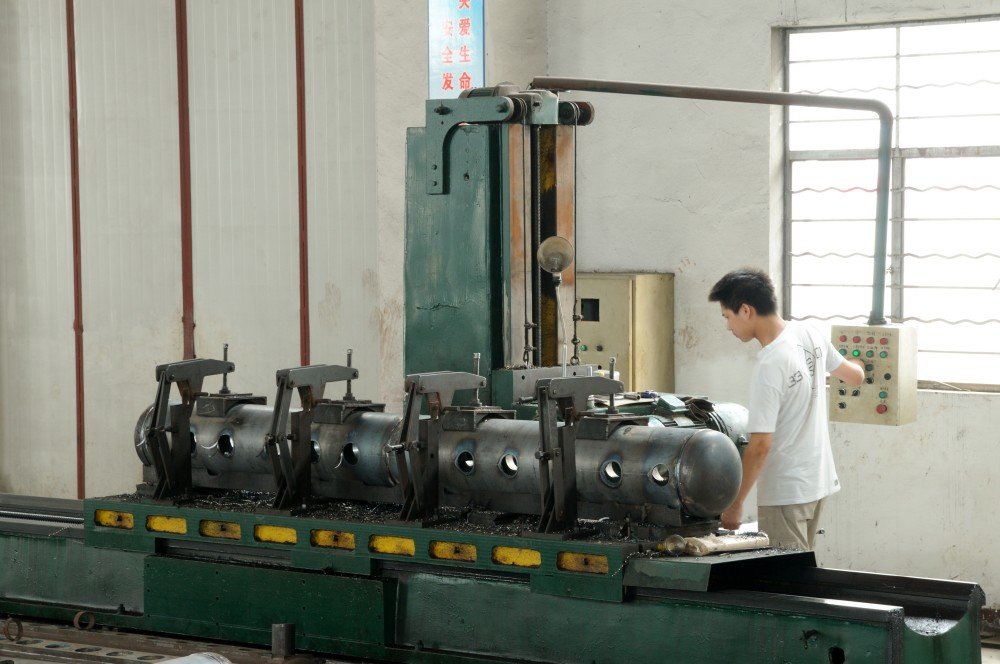

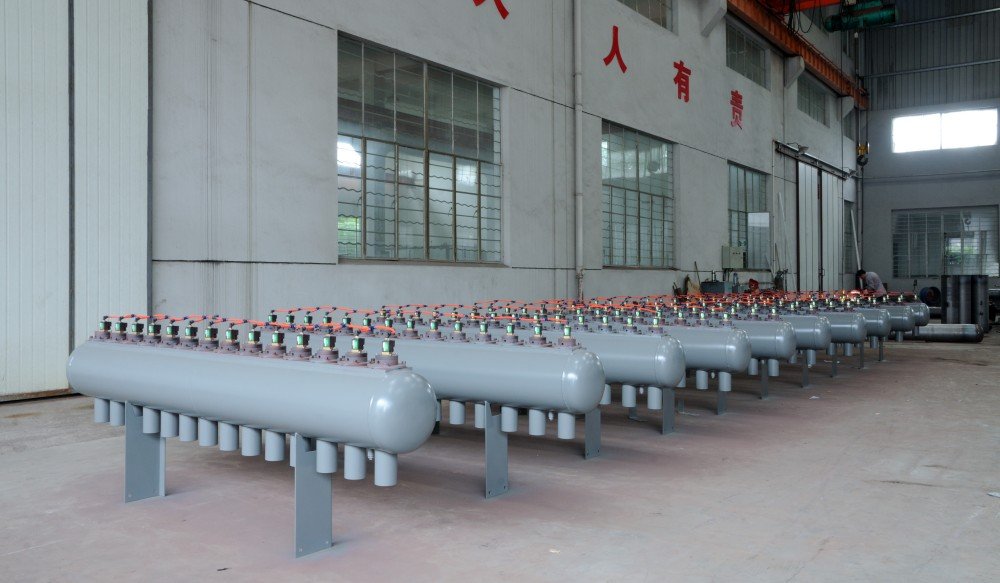

Optipow Valve Parts Processing Workshop
