The Optipow 105 Diaphragm Valve V1617803 is engineered for precise airflow regulation in industrial dust collection systems. The 3-inch aluminum pulse solenoid valve offers efficient operation by delivering quick bursts of air to clean filter bags and prevent clogging.
Subject: Pulse Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Manifold, Jet Pulse Filter, Pulse Valve
Valve design: Pilot operated diaphragm structure
Delivery time: 5 working days for delivery after payment.
Payment terms: letter of credit, t/t, d/, money gram
Warranty period: two years or 100,000 times
Warranty mode: replacement, not repair
Origin: Qingdao, China
Compact pulse valve for Optipulse fabric filters of various types.
is the result of many years of experience in the field of fabric filter technology.
acts quickly with high efficiency.
has small dimensions, the figure after the name is on the piston diameter.
is primarily intended for use in combination with a round pressure tank.
is easy to install and maintain.
has a very robust design, designed for normal use at air pressures of up to 600 kPa (6 bar).
Normal maximum operating temperature (compact pulse valve) 50 ° C.
Product description
Optipow pulse jet filter, Optipow fabric filter, jet pulse valve, pulse manifold, jet filter, pulse valve, directly from China manufacturer, professional optipow solenoid valve manufacturer, the service life can reach 1,000,000 times. Resistant to low temperature -60 ° C and high temperature 150 ° C. It is widely used in air purification and dust removal of thermal power plants, glass factory dust removal, laboratory dust removal and other industrial dust removal. We have a sales and after-sales service system all over the world. Our goal is to continuously improve the quality and continuously reduce the cost until the needs of customers are met.
Pulse Jet Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Jet Valve, Directly from China Manufacturer - Qingdao Star Machine Technology Co., Ltd. Low Compressed Air Loss: OPTIPOW pulse valve reduces compressed air consumption compared with membrane type.
Compact size: OPTIPOW pulse valve is much smaller than the diaphragm valve shape, pulse valve shape, which means that the distance between bags is not limited by the valve size, only the process parameters (Bubbe gas, no filter, fly ash type and concentration) determine the bag size, two OPTIPOW pulse valves * * * short distance can be passed up to 160mm.

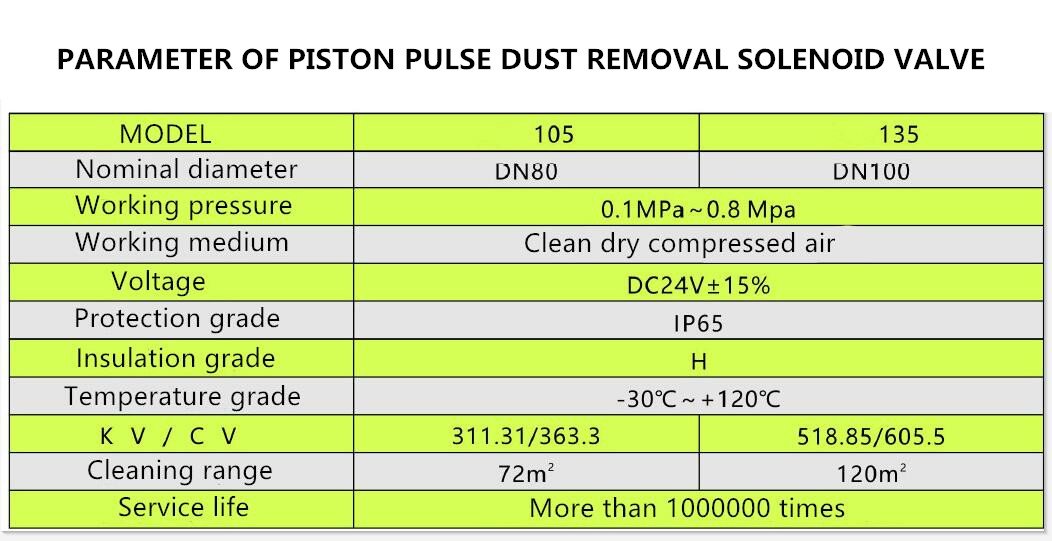

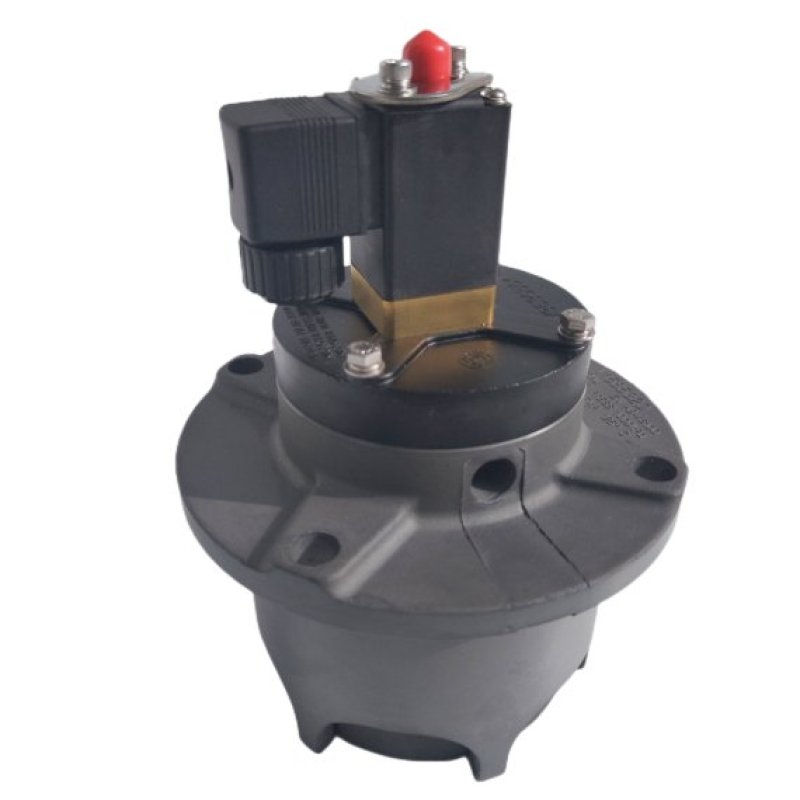

Optipow OPTIPOW105 piston type pulse valve
Piston diameter 105 mm
Number of filter bags: 30
Filter bag length: 10 m
Piston type pulse valve V1585320
Piston type pulse valve V3630501

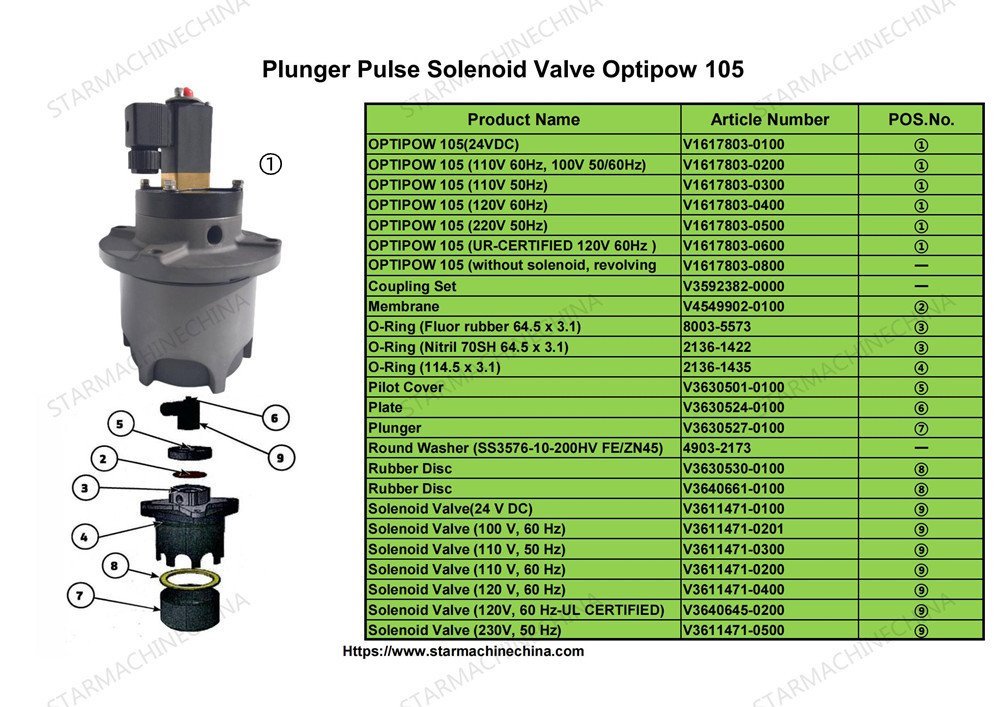

OPTIPOW 105 (24VDC) V1617803-0100
OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) V1617803-0200
OPTIPOW 105 (110V, 50Hz) V1617803-0300
OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400
OPTIPOW 105 (220 V, 50 Hz) V1617803-0500
OPTIPOW 105 (CERTIFIED UR 120V 60HZ) V1617803-0600
OPTIPOW 105 (without solenoid, rotates 90°C) V1617803-0800 -

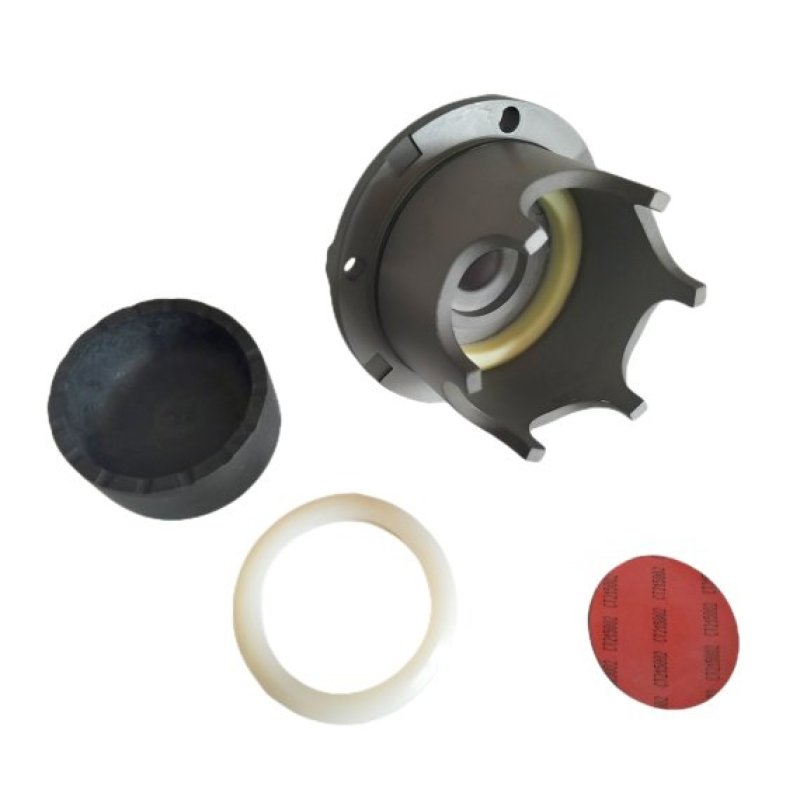

Clutch kit V3592382-0000
Membrane V4549902-0100
O-ring (fluororubber 64.5 x 3) 8003-5573
O-ring (Nitril 70SH 64.5 x 3) 2136-1422
O-ring (114.5 x 3) 2136-1435
Pilot cover V3630501-0100
Plate V3630524-0100
Plunger V3630527-0100
Round Washer (SS3576-10-200HV FE/ZN45 Mounting Parts) 4903-2173
Rubber disc V3630530-0100
Rubber disc V3640661-0100
Screw (ISO4762-M10x30-8.8 ZN8C, mounting parts) 2034-2495
Solenoid Valve (24VDC) V3611471-0100
Solenoid valve (100V, 60Hz) V3611471-0201
Solenoid Valve (110V, 50Hz) V3611471-0300
Solenoid Valve (110V, 60Hz) V3611471-0200
Solenoid Valve (120V, 60Hz) V3611471-0400
Solenoid Valve (120V, 60Hz - UL Listed) V3640645-0200
Solenoid valve (230V, 50Hz) V3611471-0500
WHY CHOOSE US
1. Reliable quality assurance system;
2. The latest computer-controlled CNC machines;
3. Individual solutions from highly qualified specialists;
4. Customization and OEM are available for specific application;
5. Extensive warehouse stock of spare parts and accessories;
6. Developed worldwide marketing network;
7. Effective after-sales service system
Pulse Jet Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Jet Valve, Directly from China Manufacturer - Qingdao Star Machine Technology Co., Ltd. Founded in 1997, located in Qingdao City, China. Qingdao Star Machine Technology Co., Ltd. is a high-tech enterprise specializing in the R&D, production and sales of industrial roller chain and sprocket, and other conveyor accessories, plunger plunger, pulse diaphragm solenoid valve and alstom optipow accessories.
