Product description

Pulse Jet Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Jet Valve, Direct from China Manufacturer - Qingdao Star Machine Technology Co., Ltd. Volume A is connected to the pressure tank through the gap between the valve body and the plunger. Volume A has the same pressure as the pressure tank.

Due to the larger pressure surface of the plunger in volume A, the piston is pressed against the impulse pipe and sealed between the pressure tank and the impulse pipe.

Volume B is released through a solenoid valve connected to the pilot air system. The area on the pilot air side is larger, so the pilot diaphragm is pressed against the top of the valve body and isolates volume A from the environment.

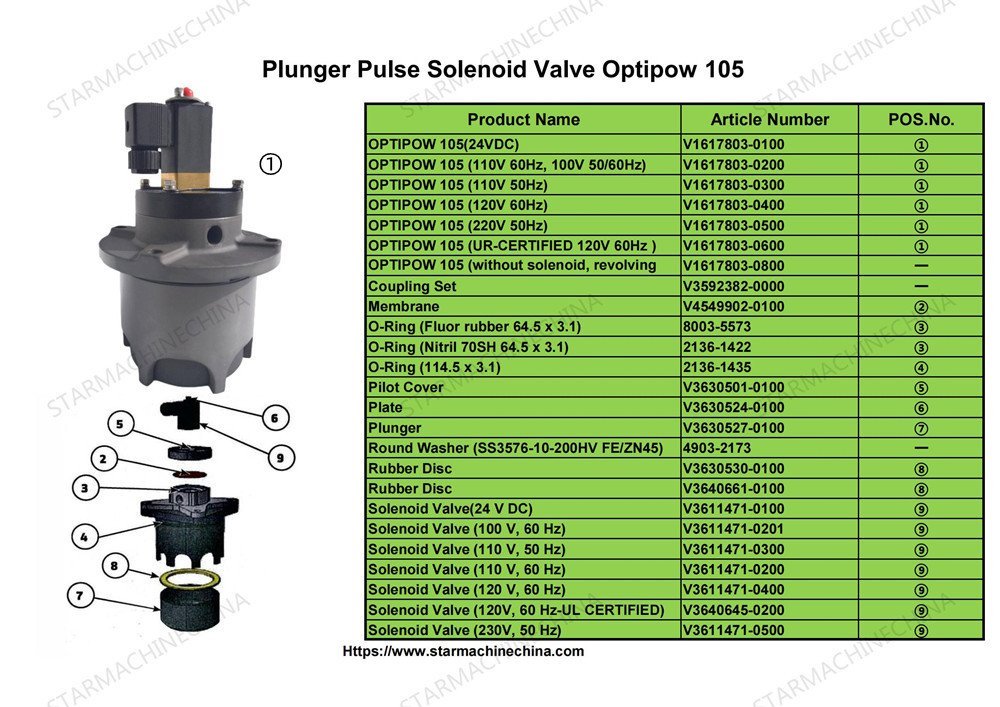

OPTIPOW105 AIR BAG MANIFOLD PLUNGER PULSE VALVE SPECIFICATIONS

Piston type pulse valve V1585320

Piston type pulse valve V3630501

OPTIPOW 105 (24VDC) V1617803-0100

OPTIPOW 105 (110V 60Hz, 100V 50/60Hz) V1617803-0200

OPTIPOW 105 (110V, 50Hz) V1617803-0300

OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400

OPTIPOW 105 (220 V, 50 Hz) V1617803-0500

OPTIPOW 105 (CERTIFIED UR 120V 60HZ) V1617803-0600

OPTIPOW 105 (without solenoid, rotates 90°C) V1617803-0800

Clutch kit V3592382-0000

Membrane V4549902-0100

O-ring (fluororubber 64.5 x 3) 8003-5573

O-ring (Nitril 70SH 64.5 x 3) 2136-1422

O-ring (114.5 x 3) 2136-1435

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3630527-0100

Round Washer (SS3576-10-200HV FE/ZN45 Mounting Parts) 4903-2173

Rubber disc V3630530-0100

Rubber disc V3640661-0100

Screw (ISO4762-M10x30-8.8 ZN8C, mounting parts) 2034-2495

Solenoid Valve (24VDC) V3611471-0100

Solenoid valve (100V, 60Hz) V3611471-0201

Solenoid Valve (110V, 50Hz) V3611471-0300

Solenoid Valve (110V, 60Hz) V3611471-0200

Solenoid Valve (120V, 60Hz) V3611471-0400

Solenoid Valve (120V, 60Hz - UL Listed) V3640645-0200

Solenoid valve (230V, 50Hz) V3611471-0500

WHY CHOOSE US

1. Reliable quality assurance system;

2. The latest computer-controlled CNC machines;

3. Individual solutions from highly qualified specialists;

4. Customization and OEM are available for specific application;

5. Extensive warehouse stock of spare parts and accessories;

6. Developed worldwide marketing network;

7. Effective after-sales service system

Optipow Pulse Jet Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Manifold, Jet Pulse Filter, Pulse Valve, Direct from China Manufacturer, We provide you with customized air pollution control solutions focused on reducing emissions and improving productivity and efficiency to meet changing market conditions and asset strategies. Our offering covers the entire flue gas line, from particulate control, dry and wet scrubbers to multi-pollutant treatment equipment for industrial, waste incineration and power plants.

Optipow pulse jet filter, Optipulse fabric filter, jet pulse valve, pulse jet manifold, jet filter, pulse valve, direct from China manufacturer, Starmachinechina air pollution control products meet the requirements of compliance with the world's strictest emission legislation, the desire for low additive consumption, the need for minimal residues and the ease of installation of a compact design. Quite often, our systems are supplied turnkey to ensure accountability and efficiency from a single source.

Pulse Jet Filter, Optipulse Fabric Filter, Jet Pulse Valve, Pulse Valve, Directly from China Manufacturer - Qingdao Star Machine Technology Co., Ltd. Founded in 1997, located in Qingdao, China. Qingdao Star Machine Technology Co., Ltd. is a high-tech enterprise specializing in the R&D, production and sales of industrial roller chain and sprocket, and other conveyor accessories, plunger plunger, pulse diaphragm solenoid valve and alstom optipow accessories.

We have a global sales network and service system of OPTIPOW air dust replacement valves. The company has more than 150 distributors and business cooperation partners in more than 30 countries, including Vietnam, Korea, Thailand, Bangladesh, Singapore, the Philippines, Malaysia, Russia, Kazakhstan, Uzbekistan, Ukraine, Iran, Saudi Arabia, Chile, Brazil, Canada, the United States, Mexico, Poland and other countries. "Integrity, Efficiency, Coordination, Innovation" is our corporate culture. "First-class quality, affordable price and timely service" is the unremitting pursuit of our company.

We are a group enterprise integrating R&D, production, marketing and technical services. Covering an area of 80,000 square meters, we have 816 employees, including 167 senior professional technicians, and a global sales and service system network. 219 sets of advanced automatic production equipment ensure the high quality of products. We can design and develop products according to customers' precise requirements, and OEM customized orders are also available. Our reliable global service network can provide customers with timely after-sales technical services.

EXPRESS DELIVERY OF OPTIPOW DUST COLLECTOR IS POSSIBLE

We cooperate with UPS, DHL, FEDEX, TNT and other door-to-door express delivery services all year round. Generally, we will choose the fastest way according to the customer's address.
