SUITABLE FOR
Applications in dust collectors, particularly for cleaning reverse pulse jet filters and their variations including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
CONSTRUCTION
Housing: Cast aluminum or 316 stainless steel
Tip: 305 SS
Anchor: 430FR SS
Seals: Nitrile or Viton Springs: 304 SS
Screws: 302 or 304 SS
Outlet Sliding Seal: EPDM or Viton Diaphragm Seat: PA-66 (standard), Viton lined mild steel
OPERATION
Recommended runtime: 50–500 ms
Recommended time between pulses: 1 minute or more
Size:
SIZE | Outer diameter mm | Outside diameter inches |
1,5 ̋ | 48.3 | 1.900 |
Weight:
SIZE | INTEGRAL PILOT (CA) kg (lb) | REMOTE CONTROL ACCESSORY (RCA) kg (lb) |
45 | 1.830 (4.03) | 1.610 (3.55) |
Maintenance kits:
MODEL | NITRILE | VINTAGE | INCLUDES |
CA/RCA45FS | K4502 | K4503 K4542 (Viton/SS) K4544 (Only for Viton/SS main membrane) | Diaphragm kits include primary and secondary diaphragms and all springs. |
Product Features and Performance:
NOMINAL SIZE | PORT SIZE | NUMBER OF DIAPHRAGM | FLOW | PRESSURE RANGE | TEMPERATURE RANGE °C °(F) | |||
millimeter | V | KV | RESUME | kPa (psi) | NITRILE SEALS | VITON SEALS | ||
45 | 40 | 1.5 | 2 | 56 | 65 | 30(5)–860(125) | –40(–40) to 82(179.6) | From –29(–20.2) to 232(449.6) |

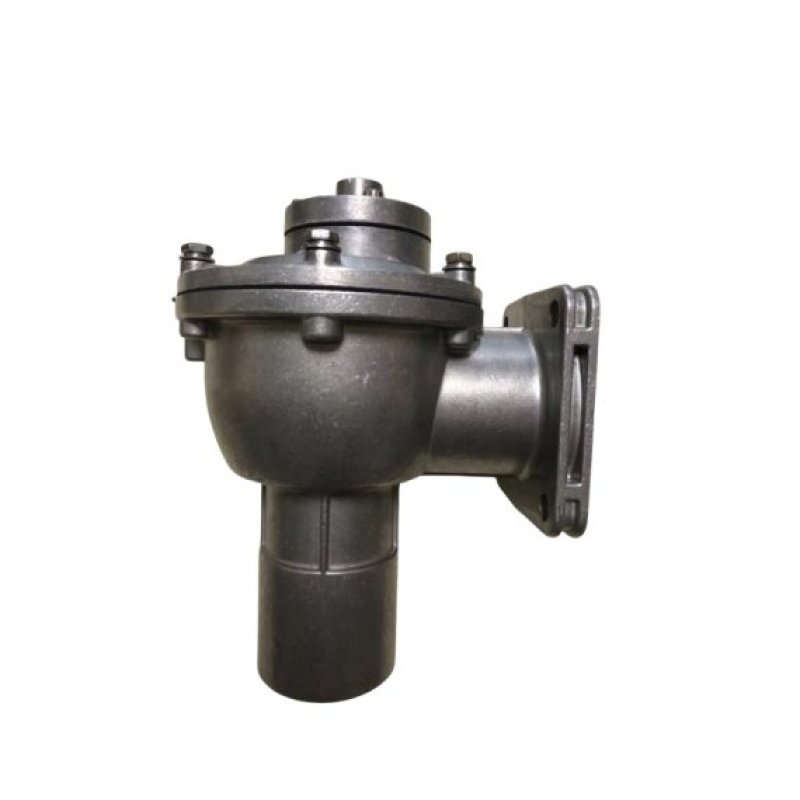

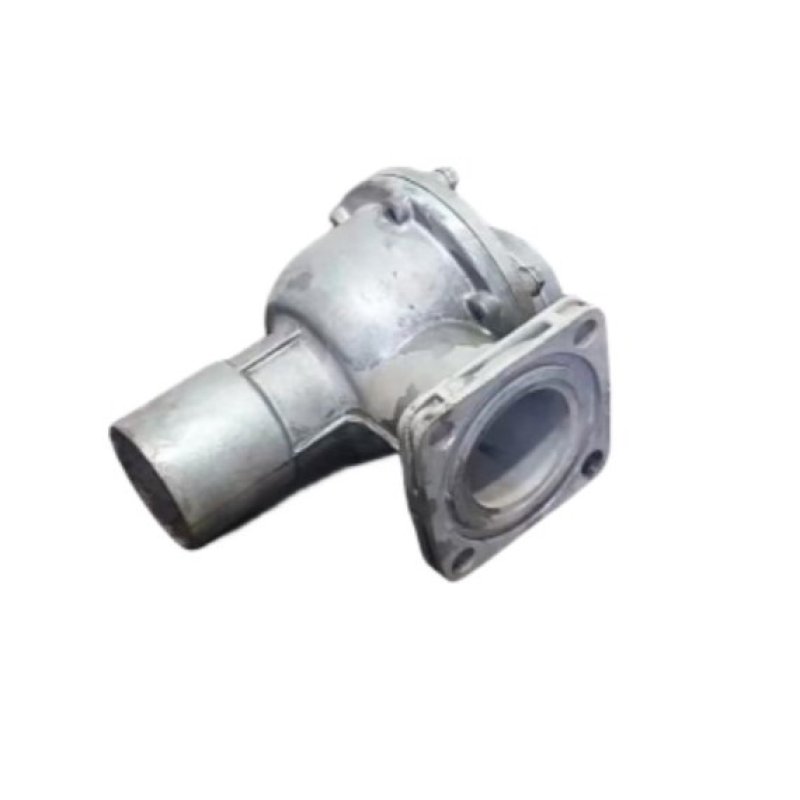

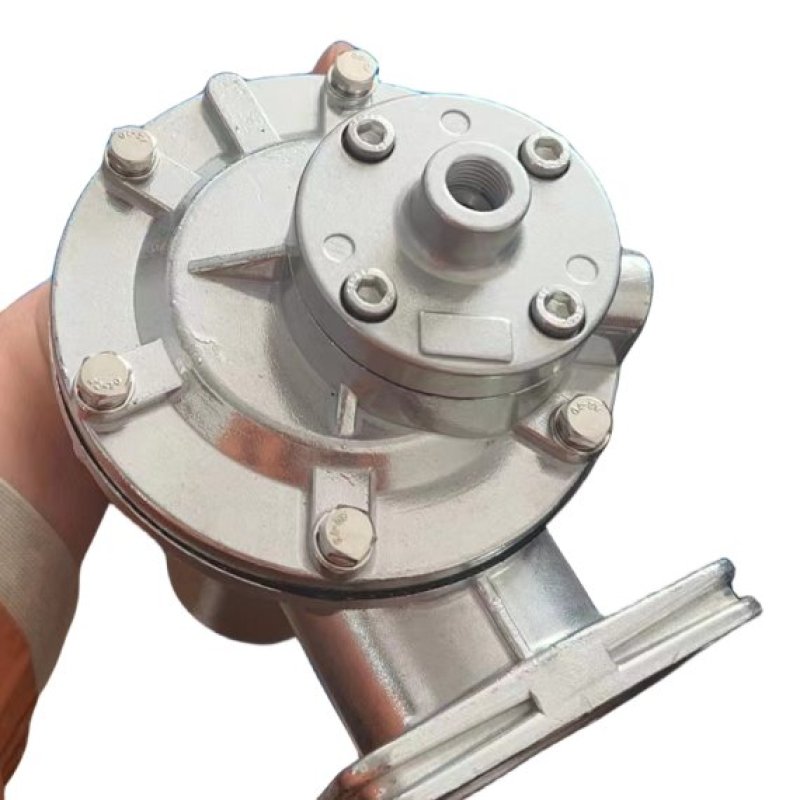

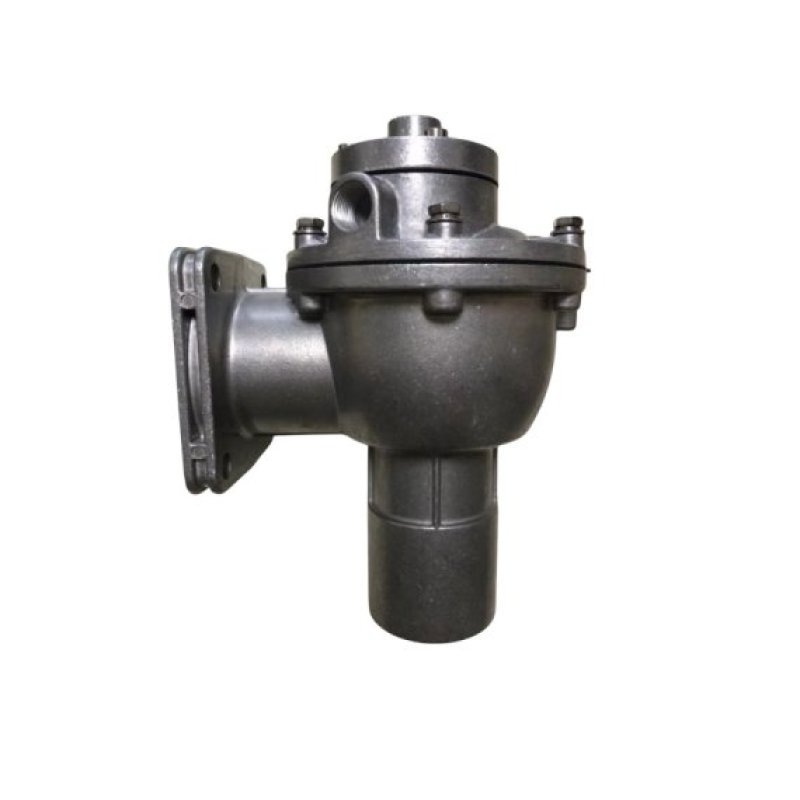

Product description

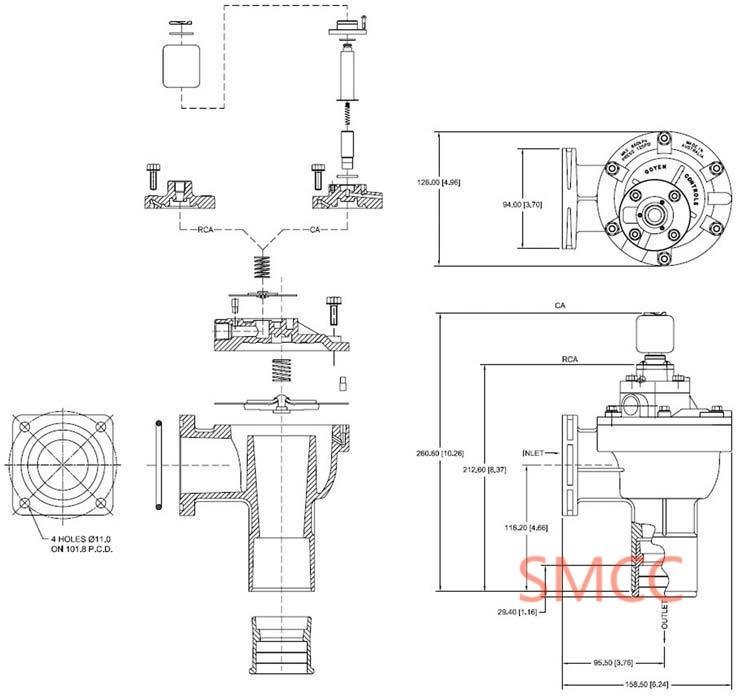

Measurement:
Installation:
1. Prepare inlet flanges and blow-off pipes according to the valve specification. Avoid installing valves under the tank.
2. Make sure there is no dirt, rust or other solid particles in the tank and pipes.
3. Make sure the supply air is clean and dry.
4. Install the valves on the inlet flange and blow-off tube onto the valves with all seals. Tighten the flange bolts to 10 Nm (7.4 ft-lbs). Make sure the blow-off tube is fully inserted into the valve outlet.
5. Tanks and pipes must have independent support from the valve.
6. Make electrical connections to the solenoid or connect the RCA pilot port to the pilot valve (RCA valves only).
7. Apply moderate pressure to the system and check for leaks during installation.
8. Full pressure injection system.
9. Check the fire and listen for proper operation and a clear pulse noise.
The valve is not a structural component. Do not rely on the valve to support tanks or piping. For installation information, see the DEINC-002 product specifications.
