OPTIPOW 135 And 4 Inch Piston Pulse Solenoid Valve V3630501 Solenoid Valve

Model No.

4 inch valve

Magnetic source

Electromagnetic

Magnetic field strength

Weak

Cylinder number

Multi-cylinder

Structure

Portable

Air volume

>400 m³/h

Certification

CE, ISO, RoHS, UL, GS, CQC, ETL, MSDS, CSA

Scope of application

>61m²

Power supply

AC power source

Operating principle

Active + Passive

Cleaning technology

Synthetic fiber

Anion density

>40000000 PCS/M³

Transport packaging

According to customer requirements

Specification

910mm * 340mm * 29mm

Trademark

SMCC OR UNMARKED

Origin

China

Code TN VED

84814000

Production capacity

20000

Product description

SEE ALSO

Professional manufacturer of Optipow 135 solenoid valve, the service life can reach 1,000,000 times. Resistant to low temperature -60°C and high temperature 150°C. Widely used in air purification and dust removal of thermal power plants, glass factory dust removal, laboratory dust removal and other industrial dust removal. We have a sales and after-sales service system all over the world. Our goal is to continuously improve the quality and continuously reduce the cost to meet the needs of customers.

Low loss of compressed air: OPTIPOW pulse valve reduces compressed air consumption compared with diaphragm type.
Compact size: OPTIPOW pulse valve is much smaller than the diaphragm valve shape, pulse valve shape, which means that the distance between bags is not limited by the valve size, only the process parameters (Bubbe gas, no filter, fly ash type and concentration) determine the bag size, two OPTIPOW pulse valves short distance can be passed up to 160mm.
OPTIPOW pulse valve has two specifications: 105 and 135, the number refers to the piston diameter.

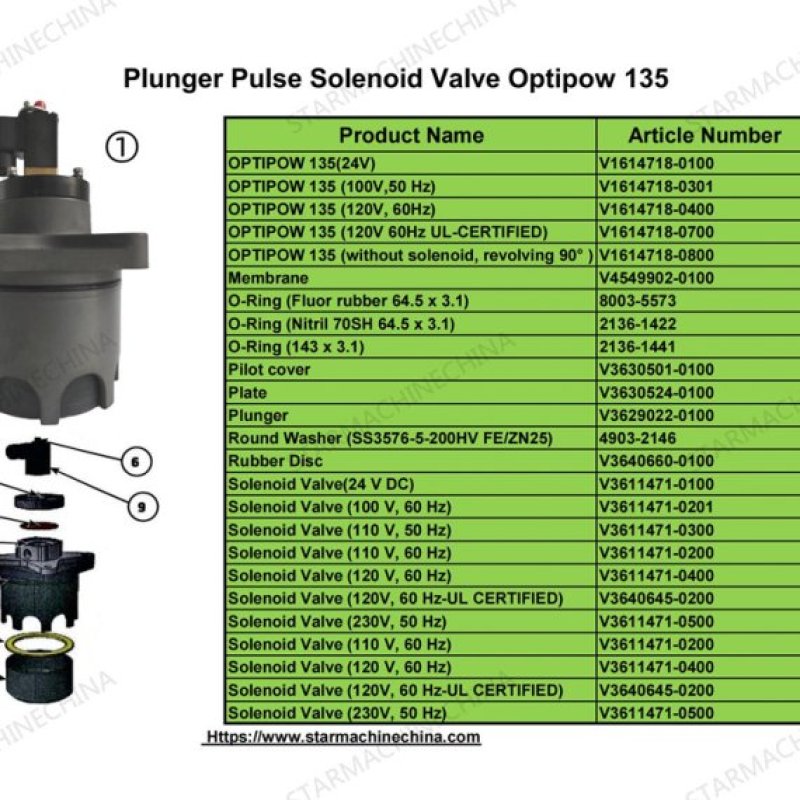

OPTIPOW piston pulse valve
model OPTIPOW piston pulse cleaning valve
OPTIPOW 135 (24V) V1614718-0100
OPTIPOW 135 (100V, 50Hz) V1614718-0301 OPTIPOW 135 (120V
, 60Hz) V1614718-0400 OPTIPOW 135 (120V
, 60Hz, UL-CERTIFIED) V1614718-0700
OPTIPOW 135 (without solenoid, rotating 90° C) V1614718-0800 -
Diaphragm V4549902-0100
O-ring (fluororubber 64.5 x 3) 8003-5573
O-ring (Nitril 70SH 64.5 x 3) 2136-1422
O-ring (114.5x3) 2136-1441
Pilot Cap V3630501-0100
Plate V3630524-0100
Plunger V3629022-0100
Round Washer (SS3576-5-200HV FE/ZN25) 4903-2146 -
Rubber Disc V3640660-0100
Solenoid Valve (24VDC) V3611471-0100
Solenoid Valve (100V, 60Hz) V3611471-0201
Solenoid Valve (110V, 50Hz) V3611471-0300
Solenoid Valve (110V 60Hz) V3611471-0200
Solenoid Valve (120V 60Hz) V3611471-0400
Solenoid Valve (120V 60Hz-UL CERTIFIE ALSTOM NEW COMPACT PISTON PULSE CLEANING VALVE The new OPTIPOW compact piston pulse cleaning valve is mainly used for bag cleaning and round drum installation.
Low loss of compressed air: OPTIPOW pulse valve reduces compressed air consumption compared with diaphragm type
