Model: CA62T
Performer: pneumatic
Type: Direct Agent
Operating pressure range: from 0.3 to 0.8 MPa
Material: Stainless steel

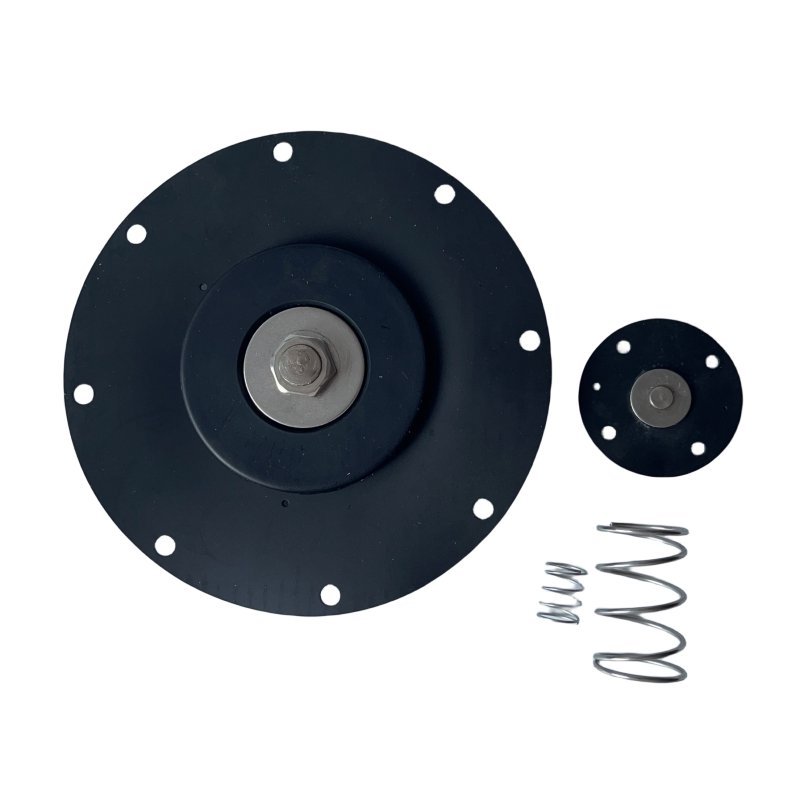

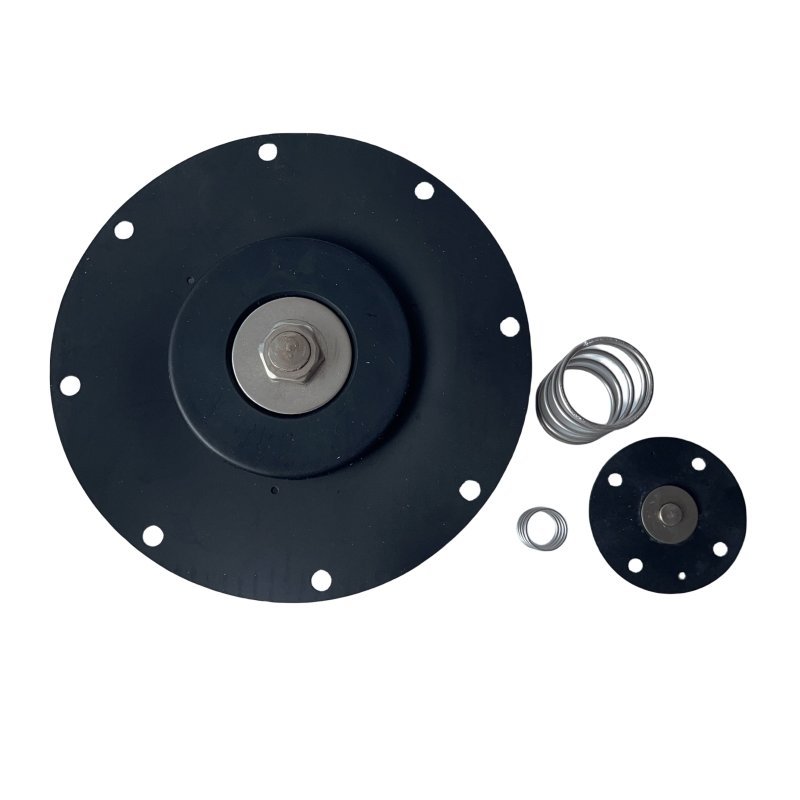

Membrane material: NBR

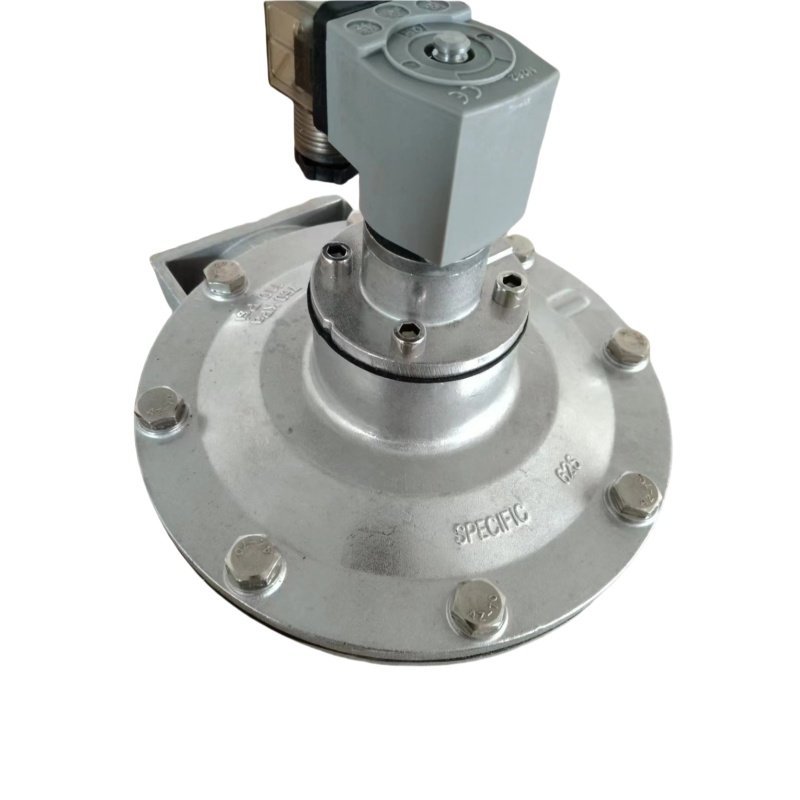

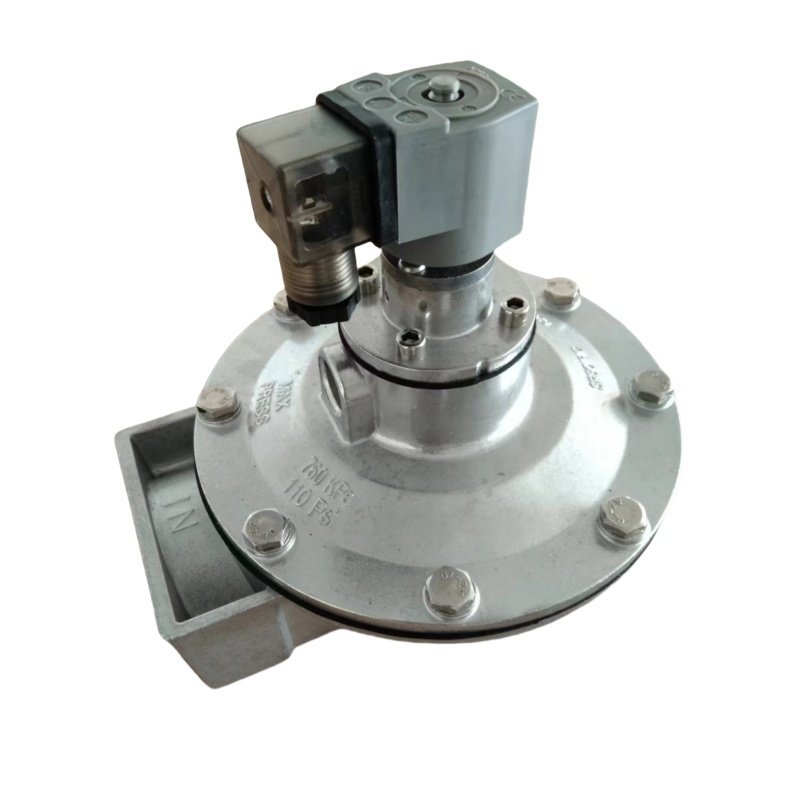

Pulse valve for manifold installation CA62MM
The electromagnetic pulse valve, also known as the diaphragm valve, is a compressed air switch of the bag dust collector blowing system, which, under the control of the pulse control output signal, cleans the filter chamber (chamber) to keep the filter resistance within the set range, so as to ensure the processing power of the dust collector and the dust removal efficiency.
Product properties
Model: CA62T DC24/AC220V
Structure: Right angle (vertical)
Dynamics: pneumatic
Media: Air
Main material: stainless steel
Port size; 3/4"~3"
Pressure: low pressure
Ambient temperature: - 5 ~ 55°C

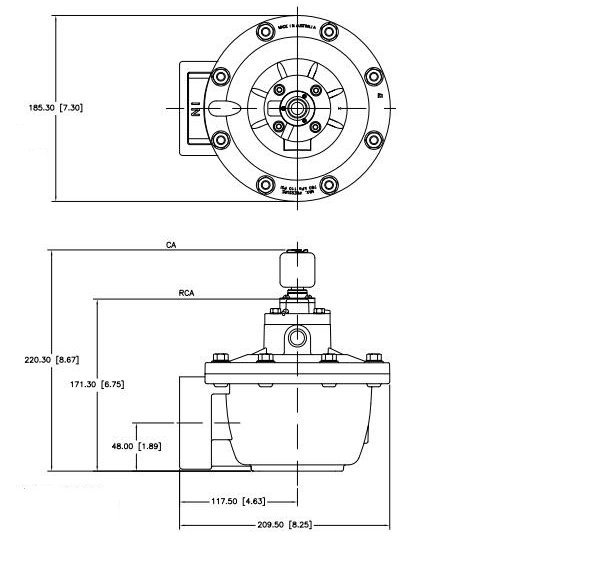

TECHNICAL DATE SHEET
| Type | Orifice | Port Size | Diaphragm | KV/CV |
| CA/RCA25MM | 25 | 1" | 1 | 26.24/30.62 |
| AC/RCA45MM | 45 | 1 1/2" | 2 | 39.41/45.99 |
| CA/RCA50MM | 50 | 2" | 2 | 62.09/72.46 |
| CA/RCA62MM | 62 | 2 1/2" | 2 | 106.58/124.38 |
| CA/RCA76MM | 76 | 3" | 2 | 165.84/193.54 |
