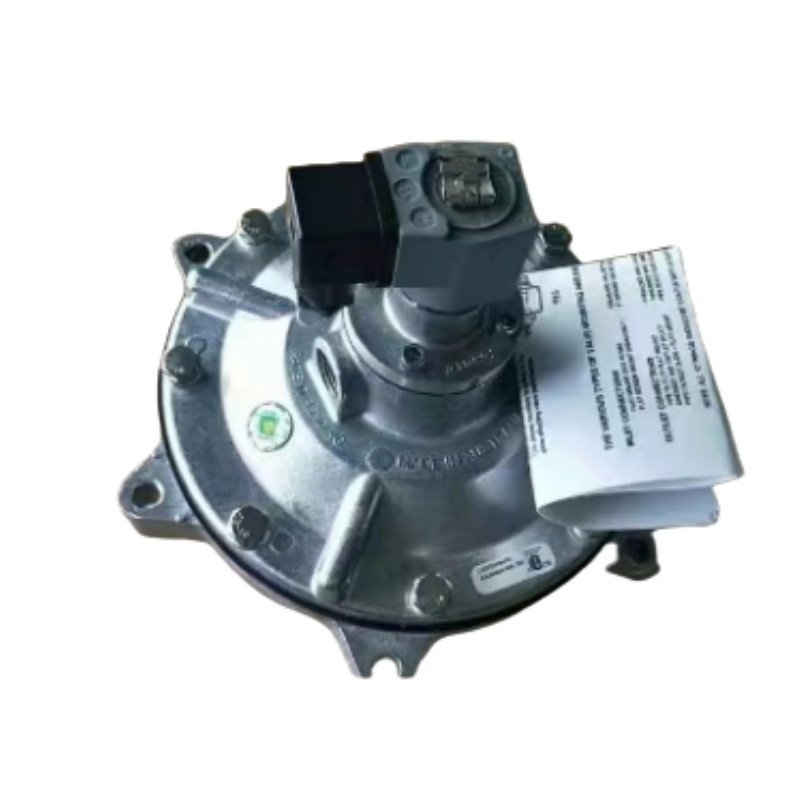

Pulse Valve CA76MM040 - 305 / 3304

Product description:

The CA76MM040 – 305 / 3304 is an immersion-type pulse jet valve engineered for clean air dust control systems. Designed with a durable NBR diaphragm and operating within 0.3 to 0.8 MPa, this valve is suitable for stable performance in medium-pressure industrial environments.

Product Name: CA76MM Pulse Jet Valve

Model: CA76MM

Operating pressure range: from 0.3 to 0.8 MPa

Membrane material: NBR

Flanged Pulse Jet Valve: CAC25FS, CAC45FS

Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM

Inquiry Now Add To Cart

Product Description

CA76MM040 - 305 Manifold Mounting Pulse Valve

CA76MM Pulse injection valve; Reference numbers CA76M000, CA76MM040, CA76MM 010, CA76M 001, CA76MB 000 - 300, CA76 MM 000 - 305, CA76 MM001 - 300, CA76 MM 001 - 305, CA 76MM 001 - 305, CA 76MM040 - 300, CA76 MM040 - 305, CA76 MM 040 - 305, CA76 MM010 - 300, CA76 MM 010 - 305. Installing flat manifold joints; NBR diaphragm; Voltages 24V DC, 110V AC, 120V AC, 220V AC, 230V AC (50/60Hz) are available for choice, and other voltages can be customized according to your requirements.

Product properties

Model: CA-76MM DC24/AC220V

Structure: diaphragm

Dynamics: pneumatic

Media: Air

Main material: alloy

Port size: 3 inches

Pressure: low pressure

Temperature of the environment: temperature of the environment

Technical data table

Type	Orifice	Port Size	Diaphragm	KV/CV
CA/RCA25MM	25	1"	1	26.24/30.62
AC/RCA45MM	45	1 1/2"	2	39.41/45.99
CA/RCA50MM	50	2"	2	62.09/72.46
CA/RCA62MM	62	2 1/2"	2	106.58/124.38
CA/RCA76MM	76	3"	2	165.84/193.54
